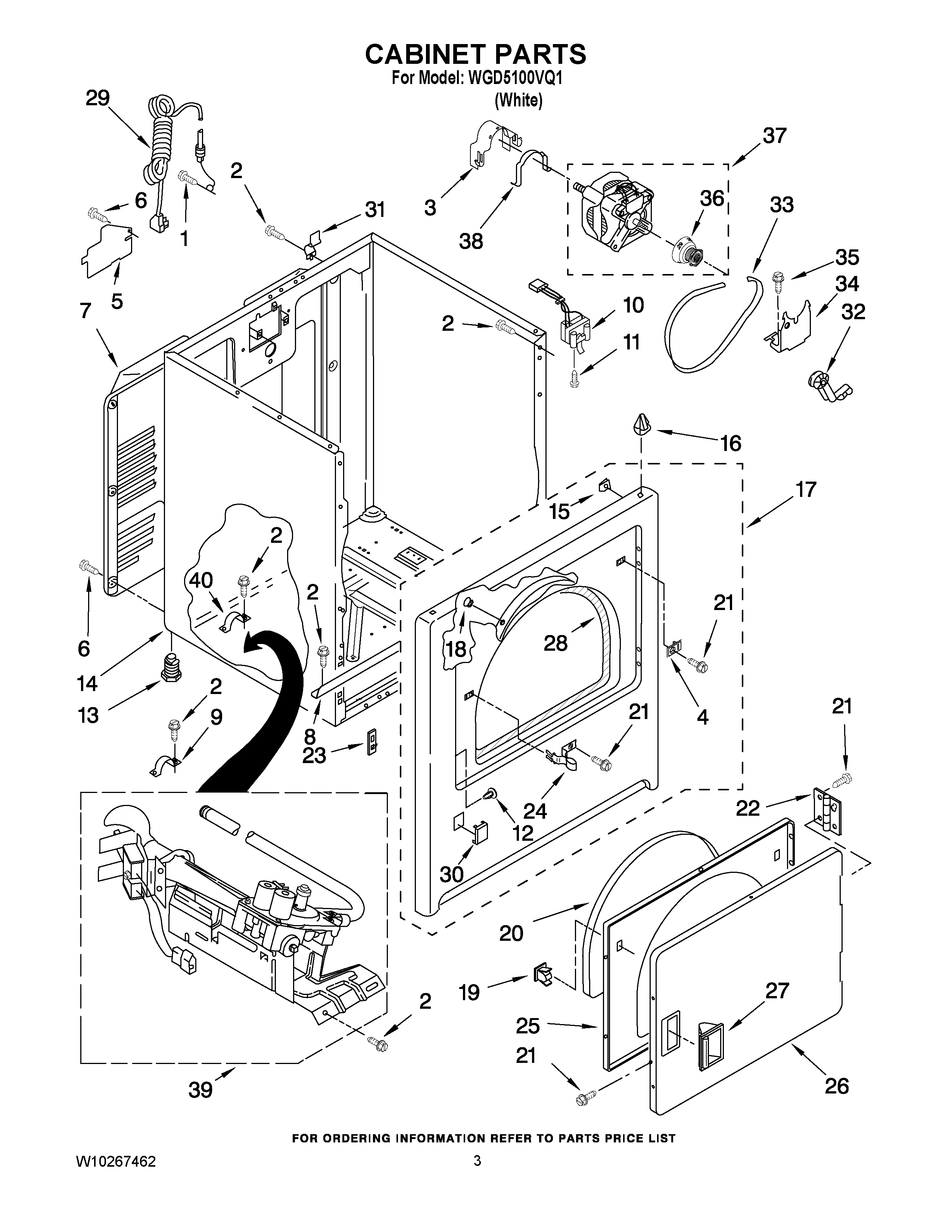

WGD5100VQ1 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP3404162 Whirlpool Clamp
4	WP3403630 Whirlpool Plug
5	W11539855 Whirlpool Refrigerator Pump
6	WP693995 Whirlpool Screw
7	280043 Whirlpool Rear Panel
8	Bracket, Cabinet
9	341029 Whirlpool Clamp
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
13	49621 Whirlpool Leveling Feet
14	8533643 Whirlpool Dryer White Cabinet
15	WP98234 Whirlpool Nut
16	WP18776 Whirlpool Lock
17	W10248059 Whirlpool Panel
18	279220 Whirlpool Clip
19	WP3389441 Whirlpool Door Catch
20	SEAL-DOOR DRYER
21	WP488627 Whirlpool Refrigerator Screw
22	WPW10362431 Whirlpool Hinge Assembly
23	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
24	W11429589 Whirlpool Strike
25	WP3402341 Whirlpool Door
26	W10861227 Whirlpool Door Assembly
27	WPW10549553 Whirlpool Dryer Door Handle
28	W11035878 Whirlpool Bearing and Seal
29	W11222083 Whirlpool Power Cord
30	Plug, Front Panel (White)
31	WP8066217 Whirlpool Hinge
32	WP691366 Whirlpool Dryer Idler Pulley Assembly
33	341241 Whirlpool Dryer Drum Belt
34	WP348780 Whirlpool Base
35	3400500 Whirlpool Screw
36	WP8066184 Whirlpool Dryer Motor Pulley
37	279827 Whirlpool Dryer Drive Motor
38	CLAMP
39	W10823508 Whirlpool Gas Burner
