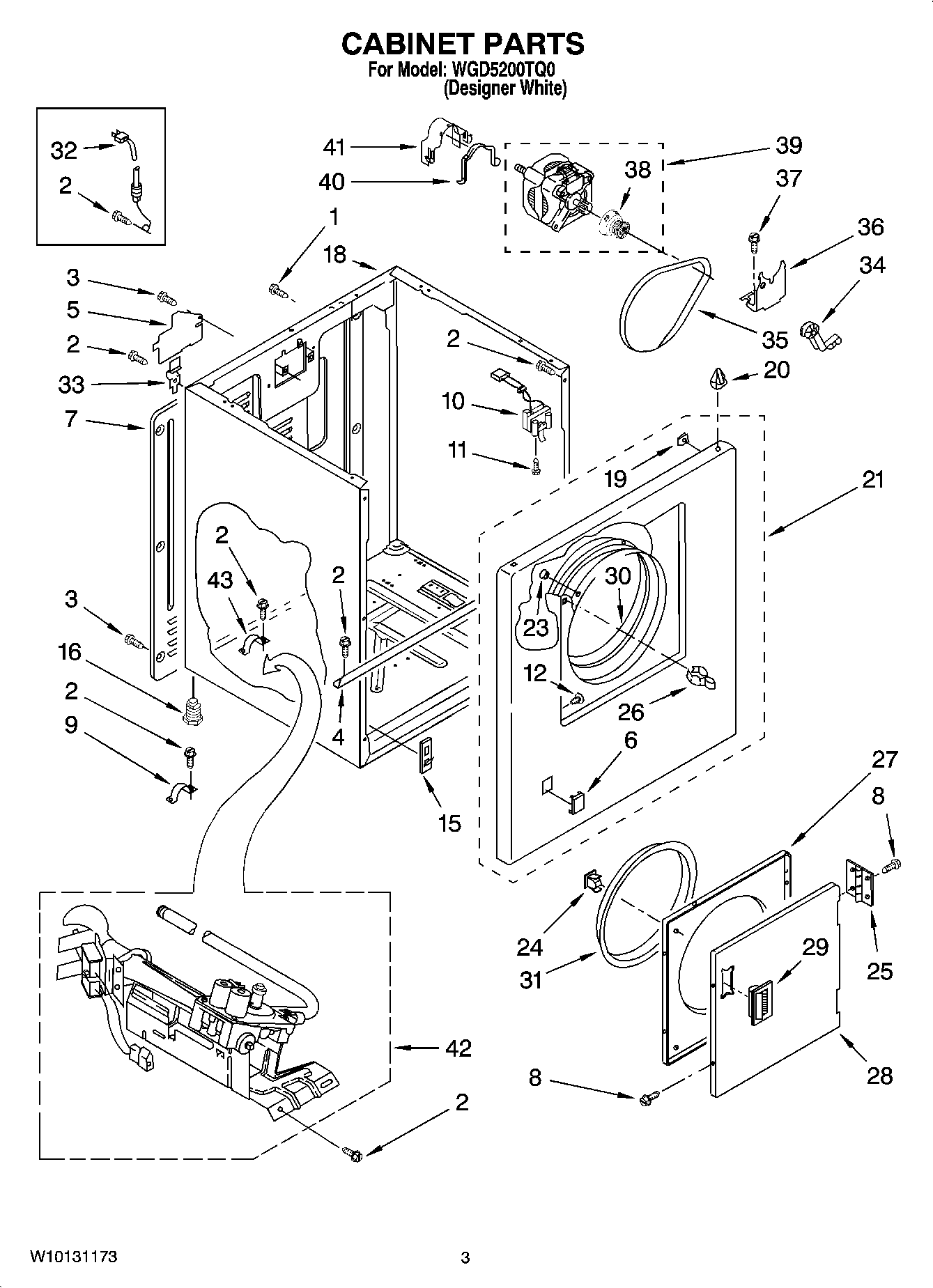

WGD5200TQ0 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	Plug, Front Panel (White)
7	280040 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
9	341029 Whirlpool Clamp
10	WP3406105 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (White)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	WPW10362431 Whirlpool Hinge Assembly
27	Door, Rear
28	WP3403361 Whirlpool Door
29	WPW10549553 Whirlpool Dryer Door Handle
30	279264 Whirlpool Bearing and Seal Kit
31	SEAL-DOOR DRYER
32	W11222083 Whirlpool Power Cord
33	WP8066217 Whirlpool Hinge
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	341241 Whirlpool Dryer Drum Belt
36	WP348780 Whirlpool Base
37	3400500 Whirlpool Screw
38	WP8066184 Whirlpool Dryer Motor Pulley
39	279827 Whirlpool Dryer Drive Motor
40	WP660658 Whirlpool Clamp
41	WP3404162 Whirlpool Clamp
42	W10823508 Whirlpool Gas Burner
