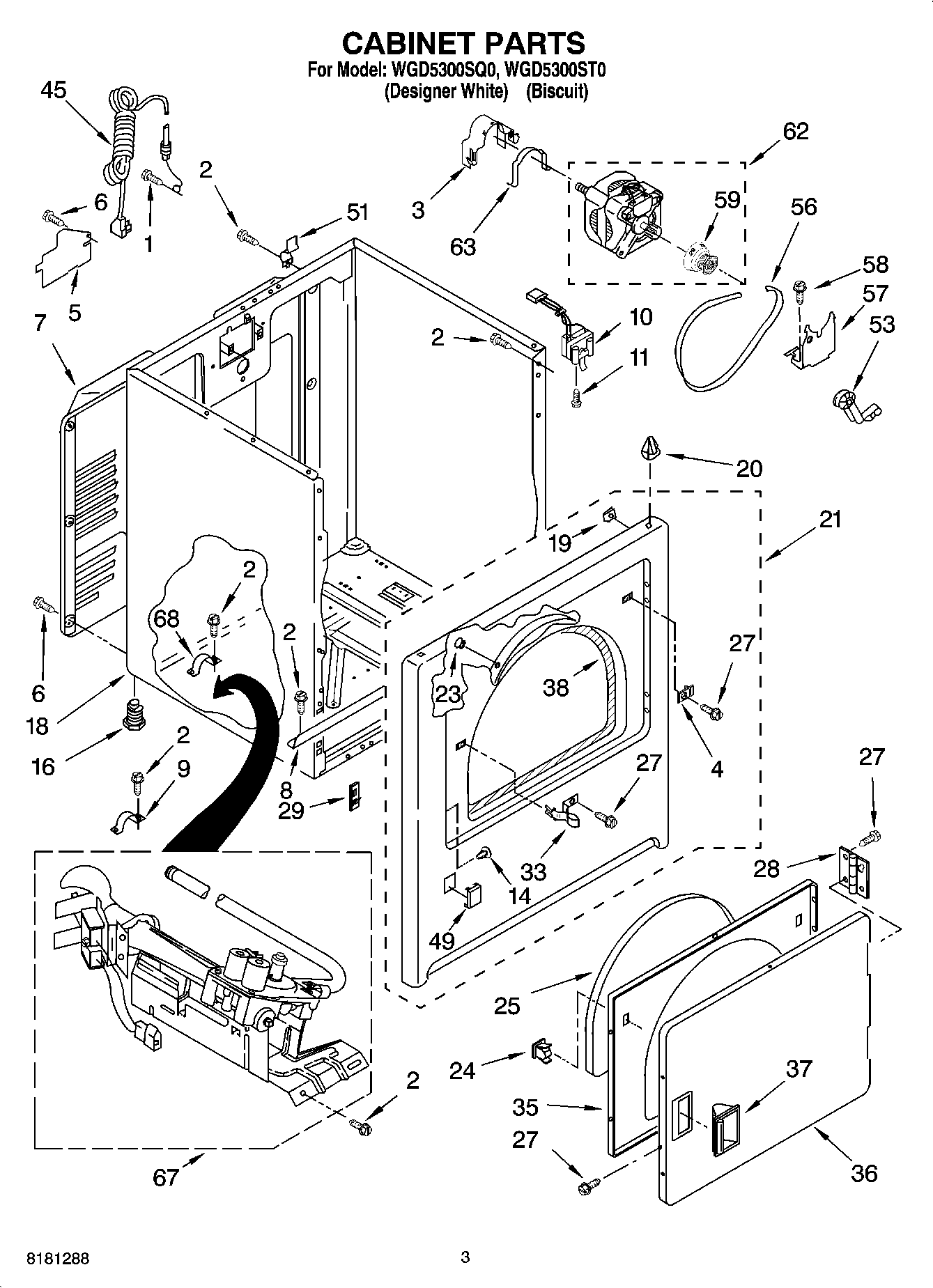

WGD5300SQ0 02 – CABINET PARTS

WGD5300SQ0 02 – CABINET PARTS

Written by

in

WGD5300SQ0 02 – CABINET PARTS

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3WP3404162 Whirlpool Clamp
4WP3403630 Whirlpool Plug
4Plug, Strike Hole (Biscuit)
5W11539855 Whirlpool Refrigerator Pump
6WP693995 Whirlpool Screw
7280043 Whirlpool Rear Panel
8Bracket, Cabinet
9341029 Whirlpool Clamp
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
14WP3404413 Whirlpool Plug
14Plug, Hinge Hole (4) (Biscuit)
1649621 Whirlpool Leveling Feet
18Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly (Biscuit)
21Front Panel Assembly
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25SEAL-DOOR DRYER
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33W11429589 Whirlpool Strike
35WP3402341 Whirlpool Door
36Door, Front (Biscuit)
36W10861227 Whirlpool Door Assembly
37WPW10549553 Whirlpool Dryer Door Handle
378566071 Whirlpool Handle
38W11035878 Whirlpool Bearing and Seal
45W11222083 Whirlpool Power Cord
49Plug, Front Panel (Biscuit)
49Plug, Front Panel (White)
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
67W10823508 Whirlpool Gas Burner
