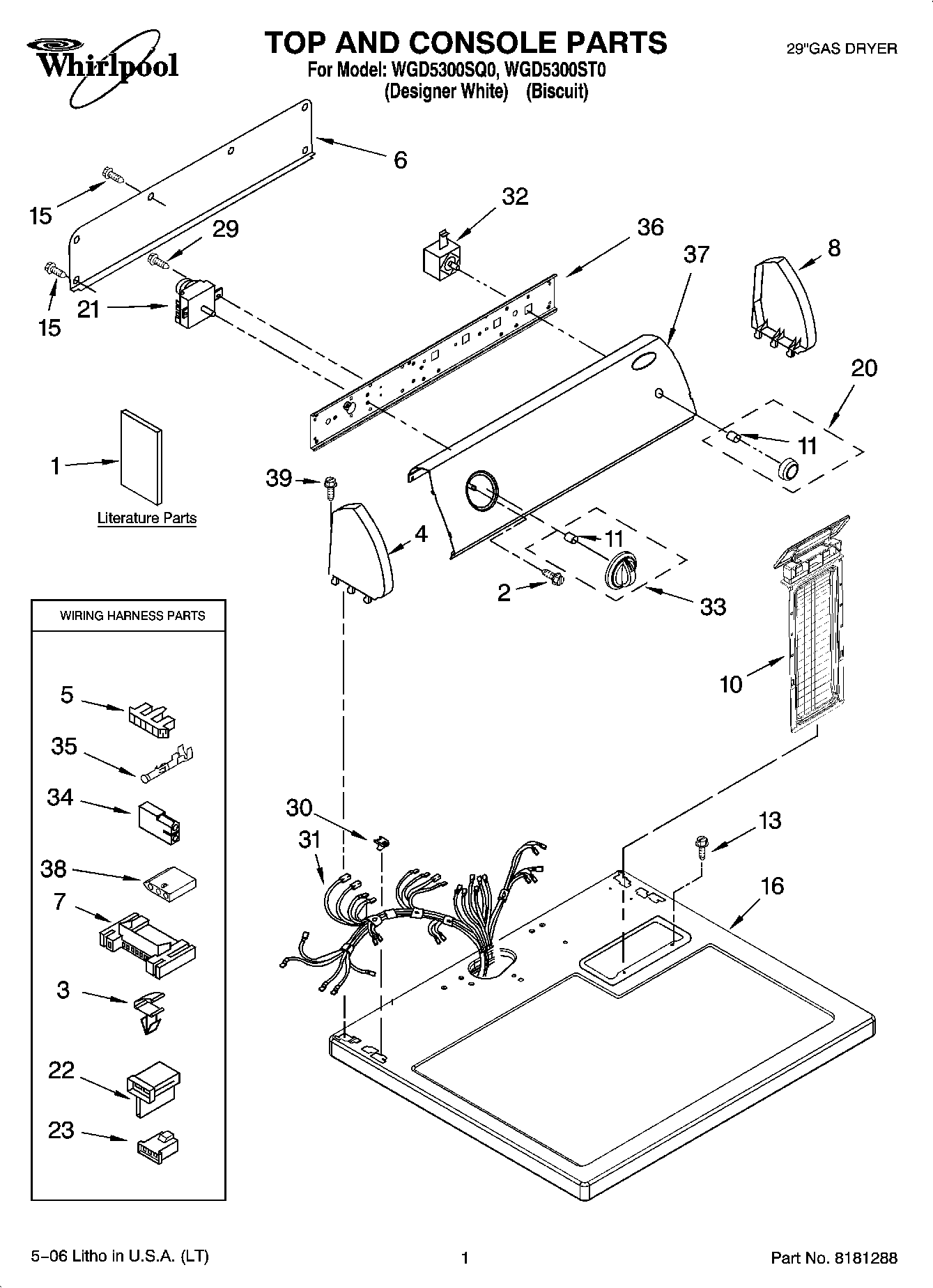

WGD5300ST0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	WPL 677818
1	Sheet, Cycle Feature
1	Use & Care Guide
1	Instructions, Installation
1	Wiring Diagram
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
4	Cap, End (L.H.) (BIscuit)
5	Connector, Timer
6	W10103406 Whirlpool Rear Panel
7	3395683 Whirlpool Connector
8	WPL 8271362
8	W10820038 Whirlpool Endcap
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
10	Screen, Lint (Biscuit)
11	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
15	WP693995 Whirlpool Screw
16	Top
16	Top
20	Knob, Push-To-Start (Biscuit)
20	WP8566065 Whirlpool Knob
21	WP3976584 Whirlpool Timer Assembly
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
29	WP90767 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WP3977456 Whirlpool Start Switch
33	WP8566061 Whirlpool Knob
33	Timer Knob Assembly (Biscuit)
34	Receptacle, Latching (2-Way) (Uses Terminal 94614)
35	WP94614 Whirlpool Terminal
36	Bracket, Control
37	Panel, Control
37	Panel, Control (Biscuit)
38	3936144 Whirlpool Connector
39	WP388326 Whirlpool Screw
