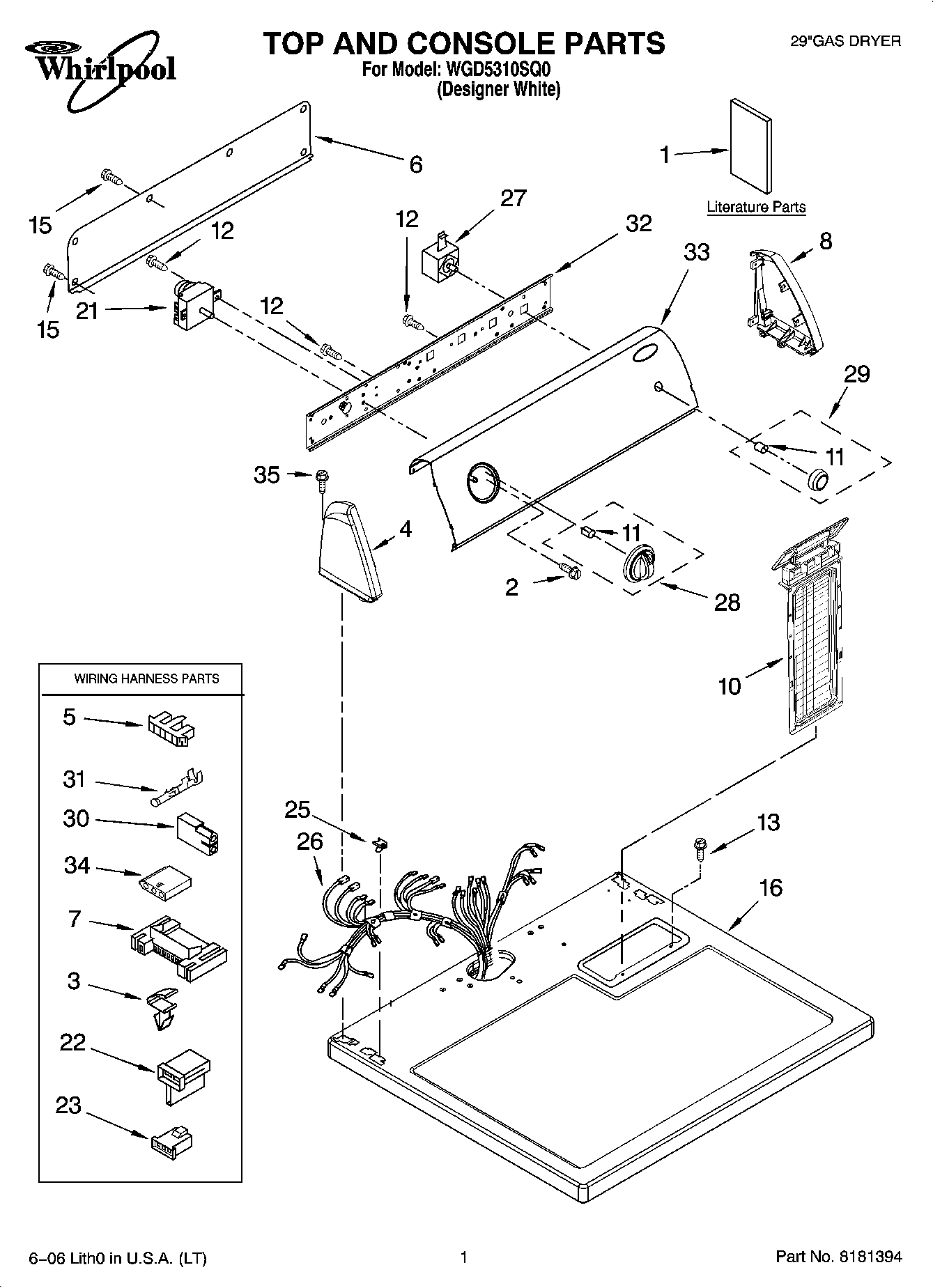

WGD5310SQ0 01 – TOP AND CONSOLE PARTS

WGD5310SQ0 01 – TOP AND CONSOLE PARTS

Written by

in

WGD5310SQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Instructions, Installation
1WPL 677818
1Wiring Diagram
1Use & Care Guide
1Sheet, Cycle Feature
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
15WP693995 Whirlpool Screw
16Top
21WP3977678 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
25WP357213 Whirlpool Hinge Stopper
26Harness, Wiring
27WP3977456 Whirlpool Start Switch
28WP8566061 Whirlpool Knob
29WP8566065 Whirlpool Knob
30Receptacle, Latching (2-Way) (Uses Terminal 94614)
31WP94614 Whirlpool Terminal
32Bracket, Control
33Panel, Control
343936144 Whirlpool Connector
35WP388326 Whirlpool Screw
