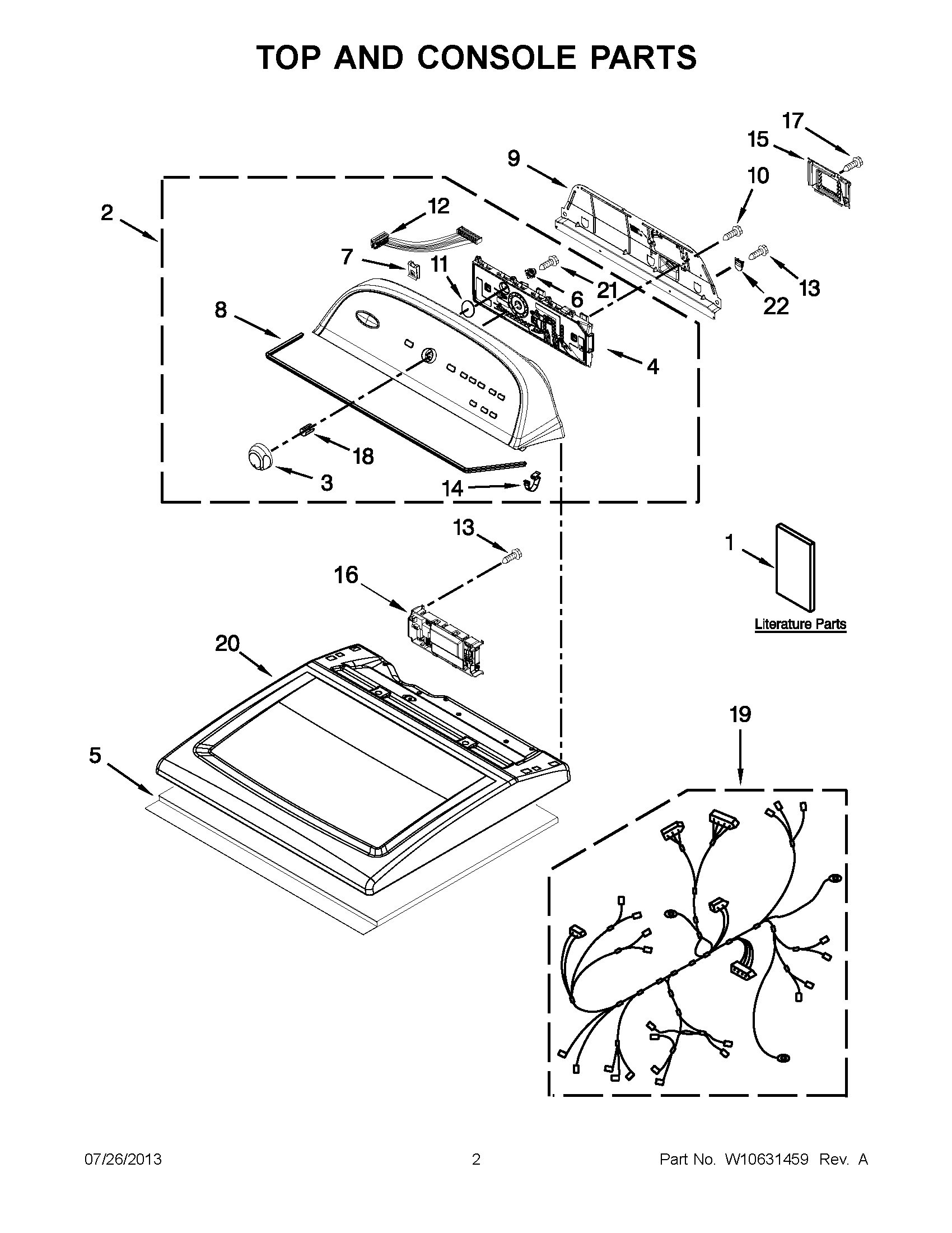

WGD5500BW0 01 – TOP AND CONSOLE PARTS

WGD5500BW0 01 – TOP AND CONSOLE PARTS

Written by

in

WGD5500BW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1GUIDE, USE AND CARE
1TECH SHEET
1INSTALLATION INSTRUCTIONS
2WPW10562301 Whirlpool Console
3ASSEMBLY, CONTROL KNOB (WHITE)
4WPW10269623 Whirlpool Electronic Control Board + Core
5W10123956 Whirlpool Sound Absorber
6W10274524 Whirlpool Grommet
7W11213336 Whirlpool Nut
8W10280079 Whirlpool Seal
9W10550615 Whirlpool Rear Panel
11W10323092 Whirlpool Seal
12W10285495 Whirlpool Wire Harness
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15COVER, TERMINAL BLOCK
16WPW10586877-includeCORE Whirlpool WPW10586877 Refrigerator Electronic Control Board + Core
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19W10253982 Whirlpool Wire Harness
20TOP (WHITE)
21W10853898 Whirlpool Screw
22W10279552 Whirlpool Plug
