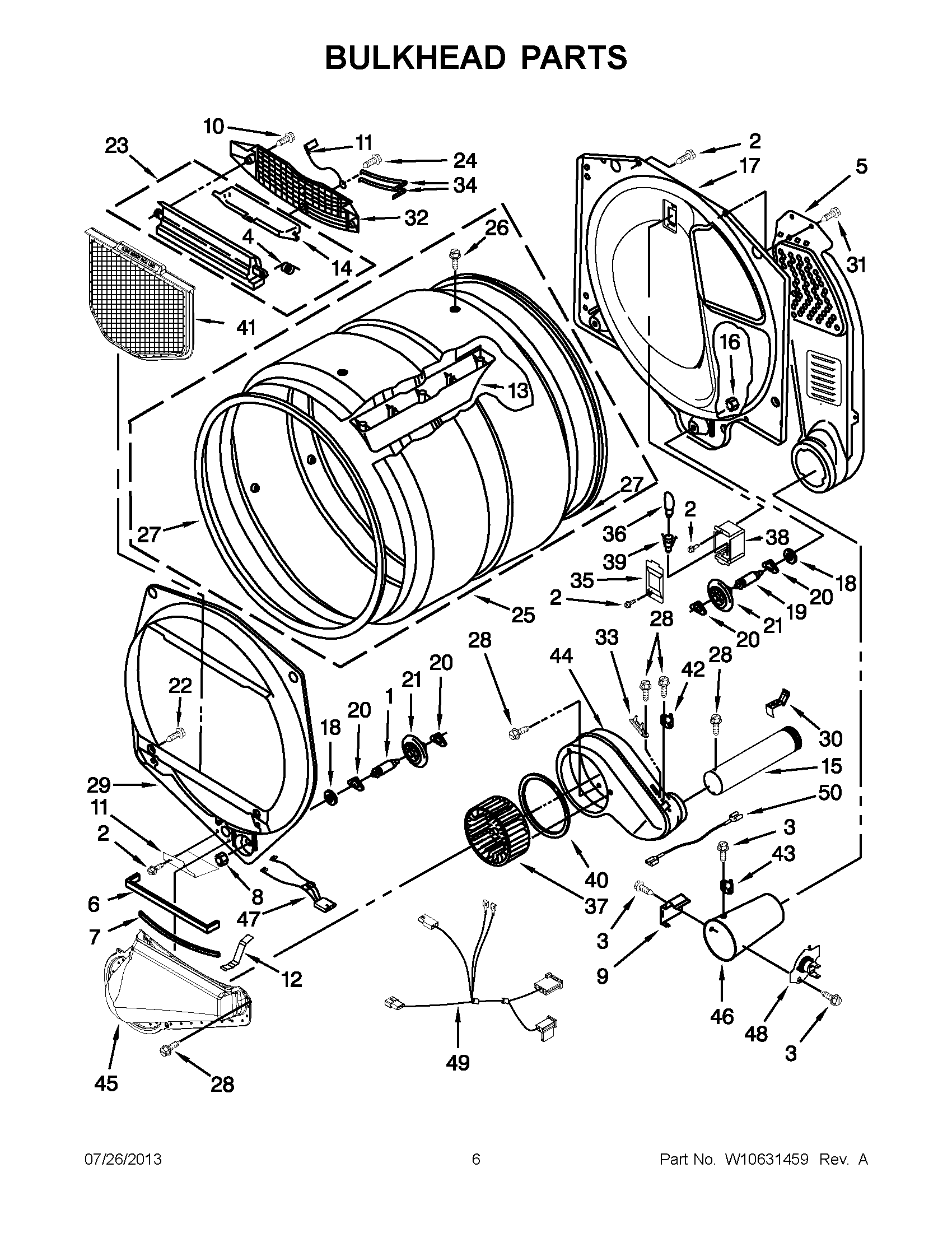

WGD5500BW0 03 – BULKHEAD PARTS

WGD5500BW0 03 – BULKHEAD PARTS

Written by

in

WGD5500BW0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
4	WP3394986 Whirlpool Spring
5	WPW10293765 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	WP338906 Whirlpool Dryer Gas Sensor
10	WP3387230 Whirlpool Screw
11	W11257251 Whirlpool Shield
12	WP8066208 Whirlpool Clip
13	WPW10113136 Whirlpool Drum Baffle
14	W11222846 Whirlpool Door
15	279936 Whirlpool Exhaust Pipe
16	WPW10080190 Whirlpool Nut
17	W11299301 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
23	W11219327 Whirlpool Grille Outlet
24	W11693756 Whirlpool Screw Assembly
25	W10545923 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	WP90767 Whirlpool Screw
29	WP697557 Whirlpool Bulkhead Assembly
30	W11684573 Whirlpool Clip Assembly
31	WP489463 Whirlpool Refrigerator Screw
32	W11086603 Whirlpool Dryer Link Screen Air Grille
33	WP3392519 Whirlpool Dryer Thermal Fuse
34	WP3387223 Whirlpool Electrode Assembly
35	W11226088 Whirlpool Lens Assembly
36	WP22002263 Whirlpool Dryer 10W Light Bulb
37	WHEEL
38	8578825 Whirlpool Bracket
39	W11222979 Whirlpool Socket
40	WP697770 Whirlpool Blower Cover Plate Seal
41	W10120998 Whirlpool Dryer Lint Screen Filter
42	WP8577274 Whirlpool Dryer Thermistor
43	THRMST-FIX
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	WP8573824 Whirlpool Funnel
47	WPW10298258 Whirlpool Wire Harness
48	WP8573713 Whirlpool Thermal Fuse
49	W10305870 Whirlpool Wire Harness
50	WP3401707 Whirlpool Wire Assembly
