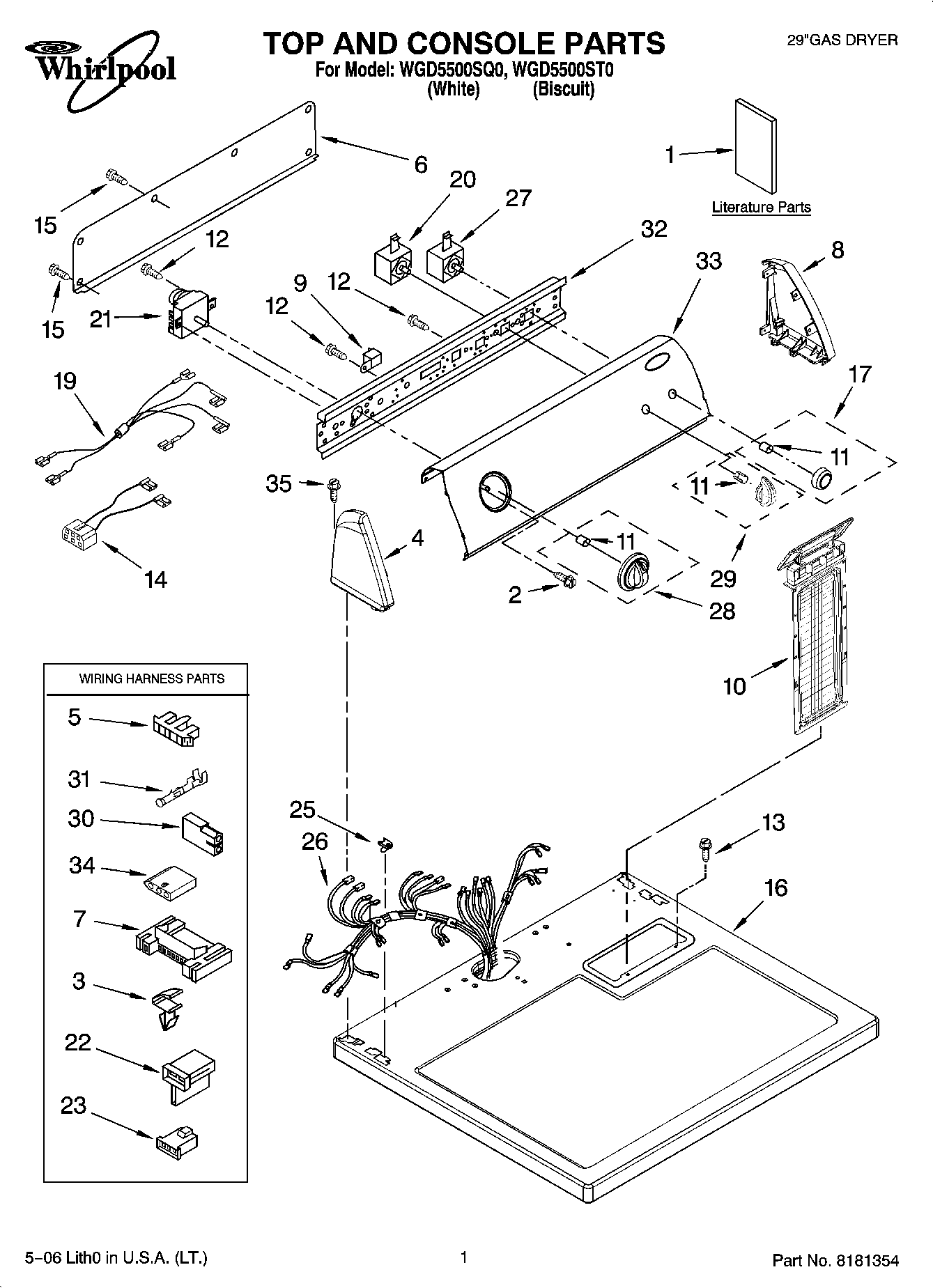

WGD5500SQ0 01 – TOP AND CONSOLE PARTS

WGD5500SQ0 01 – TOP AND CONSOLE PARTS

Written by

in

WGD5500SQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WPL 677818
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Sheet, Cycle Feature
1Use & Care Guide
1Wiring Diagram
1Instructions, Installation
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
4Cap, End (L.H.) (BIscuit)
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP694419 Whirlpool Buzzer Adjuster
10WPW10717210 Whirlpool Dryer Lint Screen Filter
10Screen, Lint (Biscuit)
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
148539893 Whirlpool Wire Harness
15WP693995 Whirlpool Screw
16Top
16Top
178566076 Whirlpool Knob Assembly
17WP8566073 Whirlpool Appliance Knob
19Wire, Jumper (Black)
20WP3399639 Whirlpool Switch
21WP8299765 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
25WP357213 Whirlpool Hinge Stopper
268299879 Whirlpool Wire Harness
27WP3398095 Whirlpool Dryer Start Relay
28Timer Knob Assembly (Biscuit)
28WP8566061 Whirlpool Knob
29Knob, Control (B
29Knob, Control
30Receptacle, Latching (2-Way) (Uses Terminal 94614)
31WP94614 Whirlpool Terminal
32Bracket, Control
33Panel, Control (White)
33Panel, Control (Biscuit)
343936144 Whirlpool Connector
35WP388326 Whirlpool Screw
