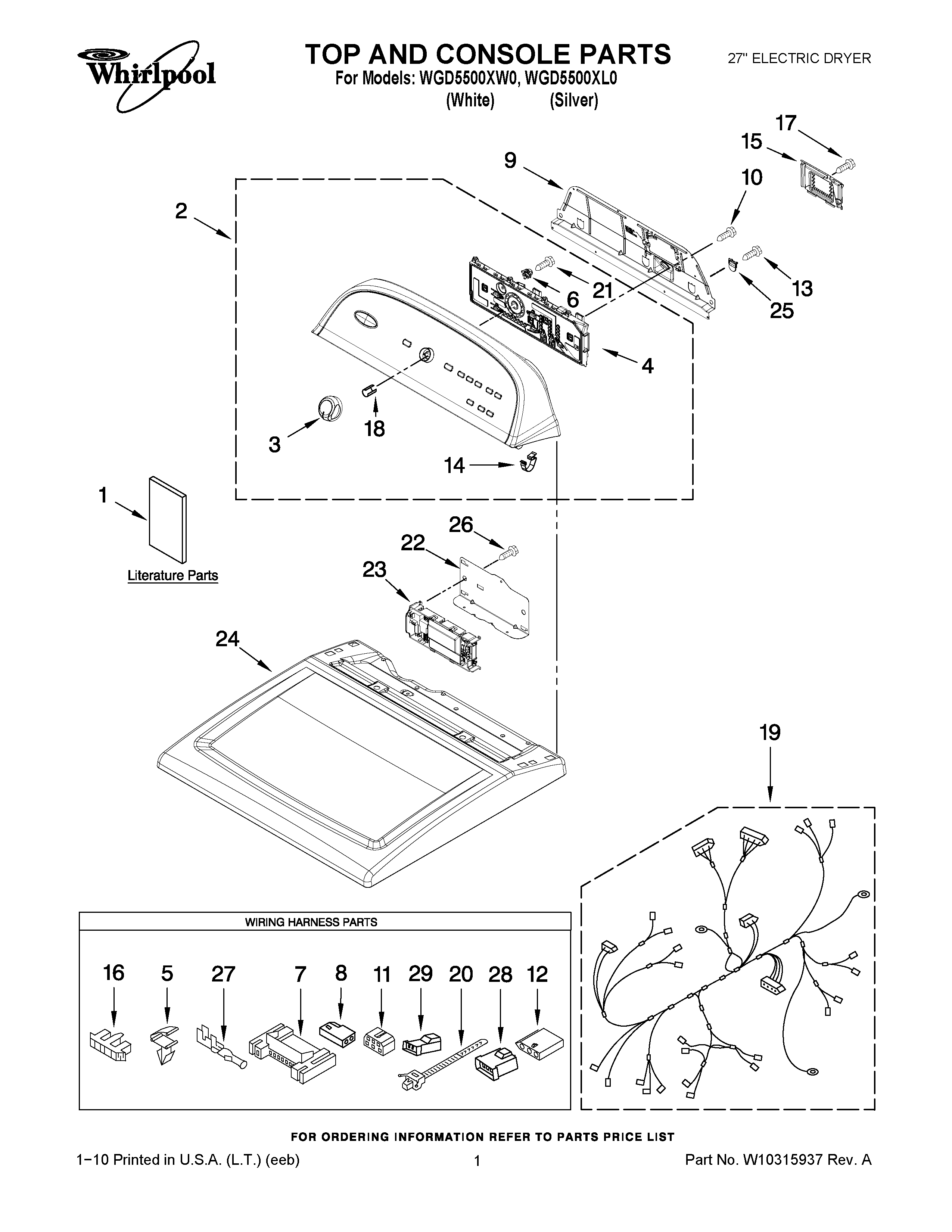

WGD5500XW0 01 – TOP AND CONSOLE PARTS

WGD5500XW0 01 – TOP AND CONSOLE PARTS

Written by

in

WGD5500XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
2WPW10269607 Whirlpool Console Assembly
3WPW10251392 Whirlpool Knob
4WPW10269623 Whirlpool Electronic Control Board + Core
5WP3394427 Whirlpool Clip
6W10274524 Whirlpool Grommet
73395683 Whirlpool Connector
8Receptacle, Latching (2-Way) (Uses Terminal 94614)
9W10096969 Whirlpool Rear Panel
11Block, Disconnect
123936144 Whirlpool Connector
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15COVER, TERMINAL BLOCK
16Connector, Timer
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19W10253982 Whirlpool Wire Harness
20WP3391018 Whirlpool Wire Tie
21W10853898 Whirlpool Screw
22W10271580 Whirlpool Mount
23WPW10317636-includeCORE Whirlpool WPW10317636 Refrigerator Electronic Control Board + Core
24TOP (WHITE)
24TOP (SILVER)
25W10279552 Whirlpool Plug
26WP33001882 Whirlpool Screw
27WP94614 Whirlpool Terminal
28WP3403498 Whirlpool Connector
29WP3403499 Whirlpool Connector
