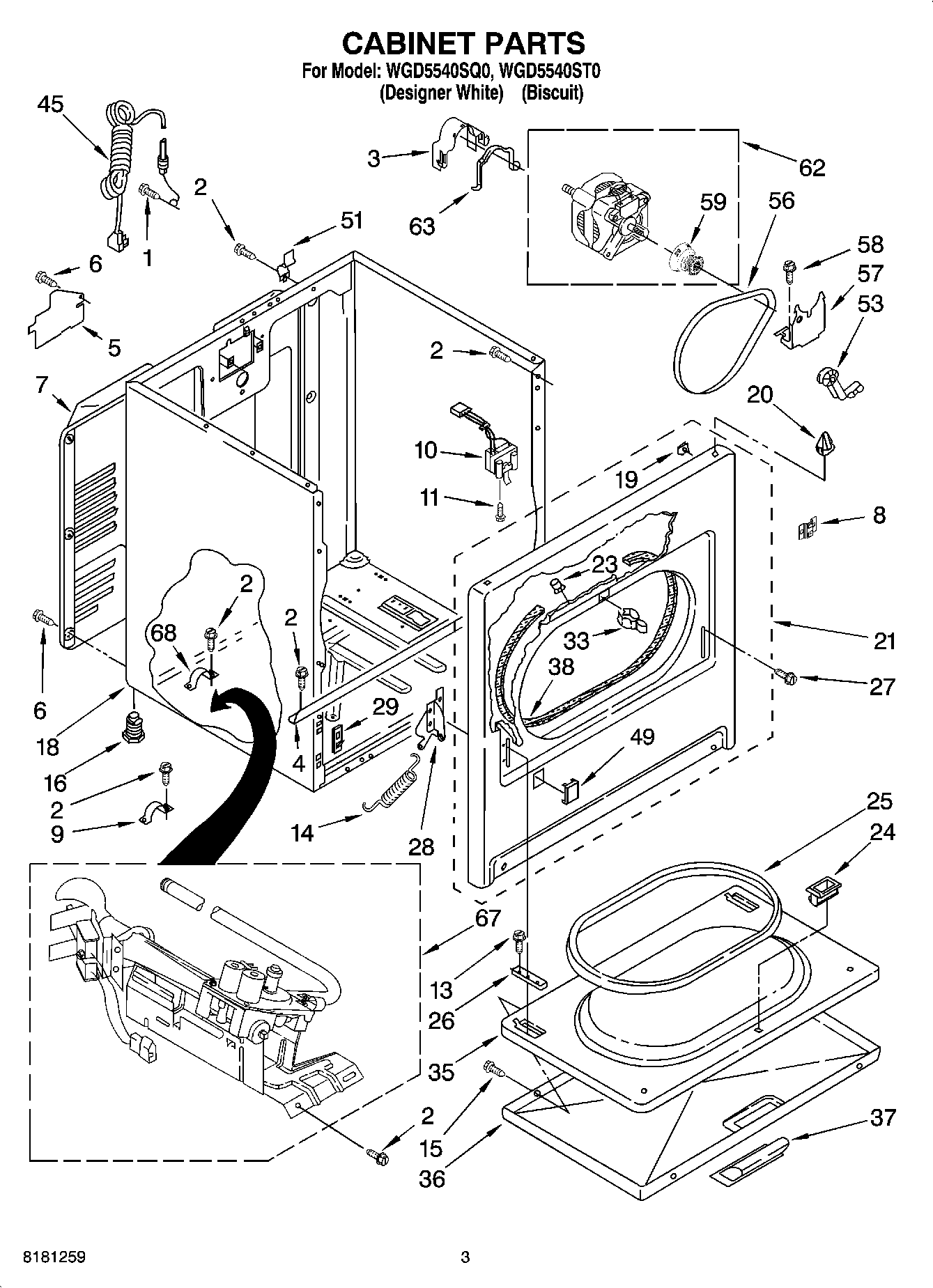

WGD5540SQ0 02 – CABINET PARTS

WGD5540SQ0 02 – CABINET PARTS

Written by

in

WGD5540SQ0 02 – CABINET PARTS

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3WP3404162 Whirlpool Clamp
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6WP693995 Whirlpool Screw
7280043 Whirlpool Rear Panel
88546676 Whirlpool Clip
9341029 Whirlpool Clamp
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
13WP694091 Whirlpool Screw
148541401 Whirlpool Door Spring
15WP308685 Whirlpool Microwave Screw
1649621 Whirlpool Leveling Feet
18Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front (Biscuit)
21279740 Whirlpool Panel Primary with O/S2
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25W10906683 Whirlpool Door Seal
26W11252547 Whirlpool Clip Assembly
27Screw, 10-32 x 1/2
28WP8066057 Whirlpool Door Hinge
28WP8066056 Whirlpool Door Hinge
29W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33279570 Whirlpool Dryer Door Latch Kit
35WP695737 Whirlpool Door
36WP3393549 Whirlpool Door Assembly
36Door, Front (Biscuit)
37Handle, Door (Biscuit)
37W10877261 Whirlpool Handle Assembly
38W11035878 Whirlpool Bearing and Seal
45W11222083 Whirlpool Power Cord
49Plug, Front Panel (Biscuit)
49Plug, Front Panel (White)
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
67W10823508 Whirlpool Gas Burner
