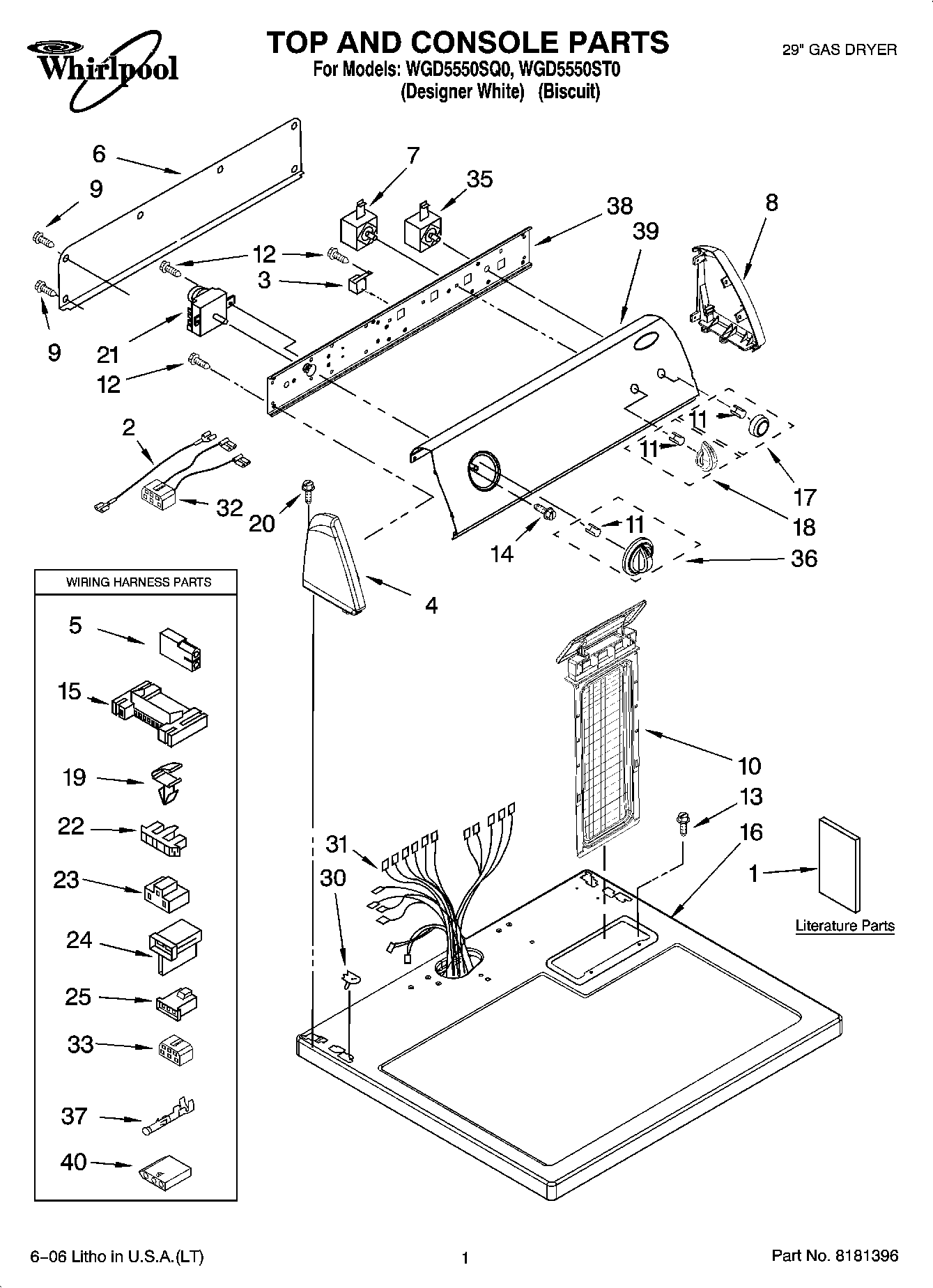

WGD5550ST0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Wiring Diagram
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Sheet, Cycle Feature
1	Use & Care Guide
1	Instructions, Installation
1	WPL 677818
2	Wire, Jumper (Black)
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (BIscuit)
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	W10103406 Whirlpool Rear Panel
7	WP3399639 Whirlpool Switch
8	WPL 8271362
8	W10820038 Whirlpool Endcap
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
10	Screen, Lint (Biscuit)
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
16	Top
17	WP8566073 Whirlpool Appliance Knob
17	8566076 Whirlpool Knob Assembly
18	Knob, Control (B
18	Knob, Control
19	WP3394427 Whirlpool Clip
20	WP388326 Whirlpool Screw
21	WP8299765 Whirlpool Timer
22	Connector, Timer
23	3401144 Whirlpool Connector
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
30	WP357213 Whirlpool Hinge Stopper
31	8299879 Whirlpool Wire Harness
32	8539893 Whirlpool Wire Harness
33	Block, Disconnect
35	WP3398095 Whirlpool Dryer Start Relay
36	WP8566061 Whirlpool Knob
36	Timer Knob Assembly (Biscuit)
37	WP94614 Whirlpool Terminal
38	Bracket, Control
39	Panel, Control (White)
39	Panel, Control (Biscuit)
40	3936144 Whirlpool Connector
