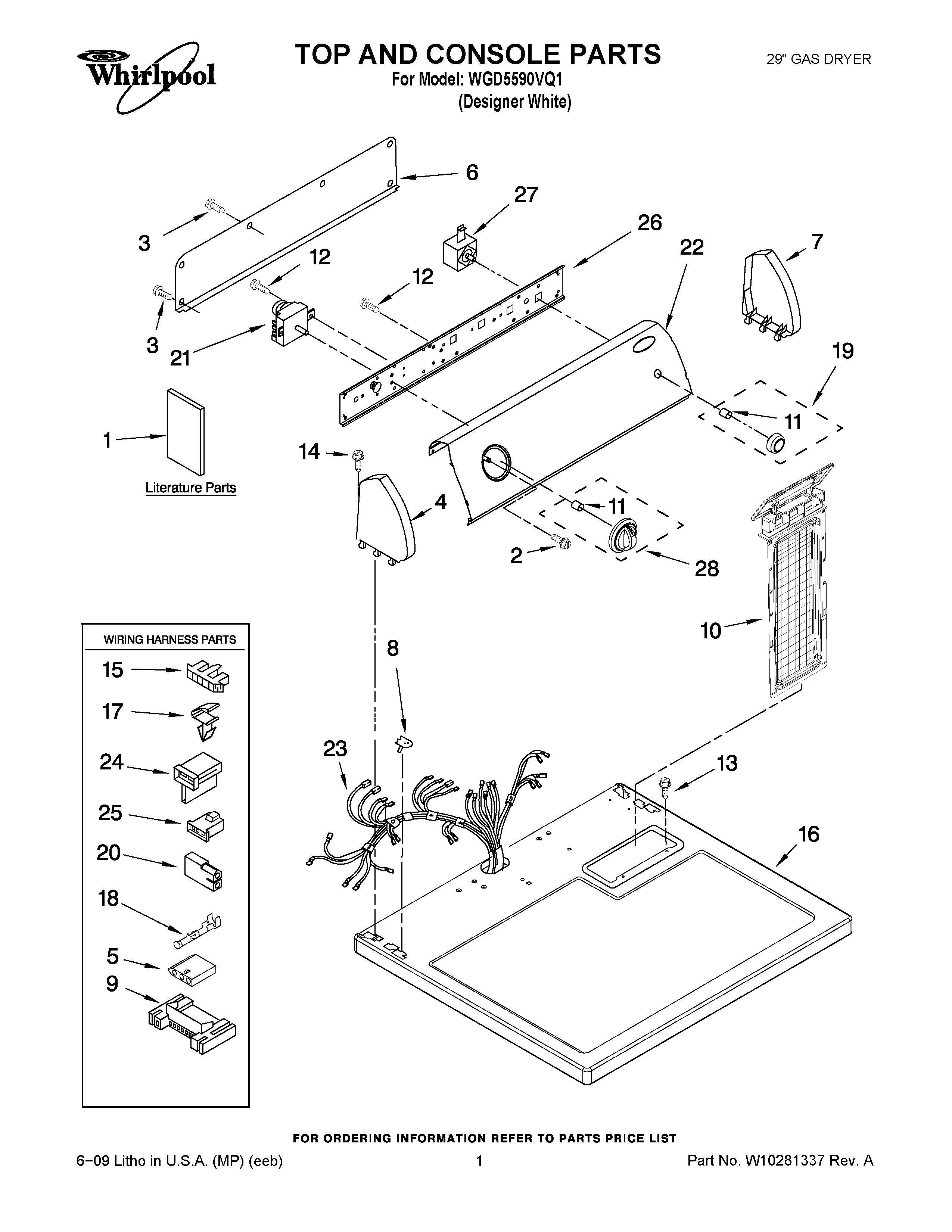

WGD5590VQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Installation Instructions
1Wiring Diagram
1Sheet, Cycle Feature
1Use & Care Guide
23400859 Whirlpool Screw
3WP693995 Whirlpool Screw
53936144 Whirlpool Connector
6W10103406 Whirlpool Rear Panel
7W10820038 Whirlpool Endcap
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
19WP8566065 Whirlpool Knob
20Receptacle, Latching (2-Way) (Uses Terminal 94614)
21WPW10185969 Whirlpool Timer
22Panel, Control
23W10186074 Whirlpool Wire Harness
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26Bracket, Control
27WP3977456 Whirlpool Start Switch
28WP8566061 Whirlpool Knob
