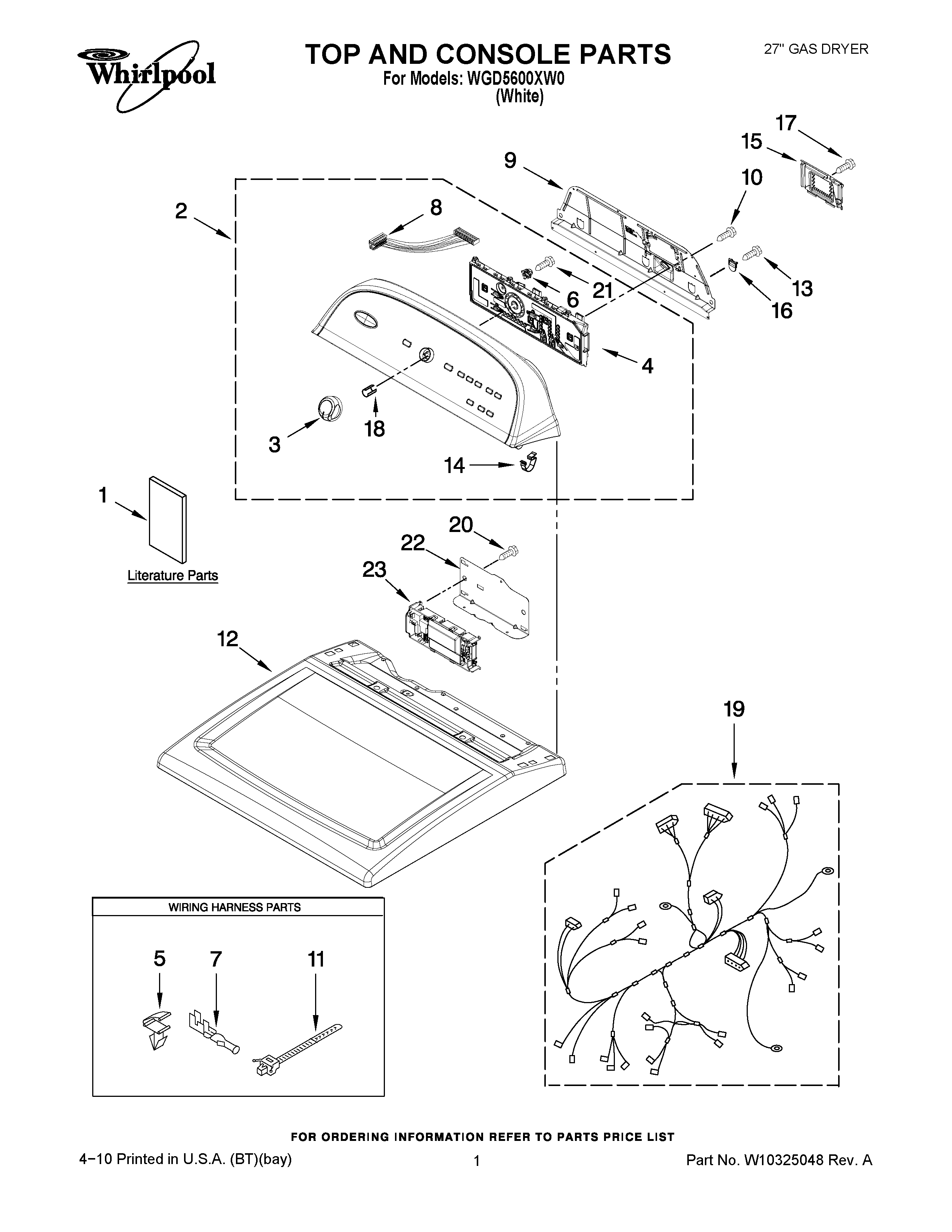

WGD5600XW0 01 – TOP AND CONSOLE PARTS

WGD5600XW0 01 – TOP AND CONSOLE PARTS

Written by

in

WGD5600XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1GUIDE, USE & CARE
1INSTRUCTIONS, INSTALLATION
2WPW10269610 Whirlpool Console
3WPW10251392 Whirlpool Knob
4ASSEMBLY, USER INTERFACE
5WP3394427 Whirlpool Clip
6W10274524 Whirlpool Grommet
7WP94614 Whirlpool Terminal
8CABLE, USER INTERFACE
9W10096969 Whirlpool Rear Panel
10WP693995 Whirlpool Screw
11WP3391018 Whirlpool Wire Tie
12TOP (WHITE)
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15COVER, TERMINAL BLOCK
16W10279552 Whirlpool Plug
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19W10253982 Whirlpool Wire Harness
20WP33001882 Whirlpool Screw
21W10853898 Whirlpool Screw
22W10271580 Whirlpool Mount
23WPW10317636-includeCORE Whirlpool WPW10317636 Refrigerator Electronic Control Board + Core
