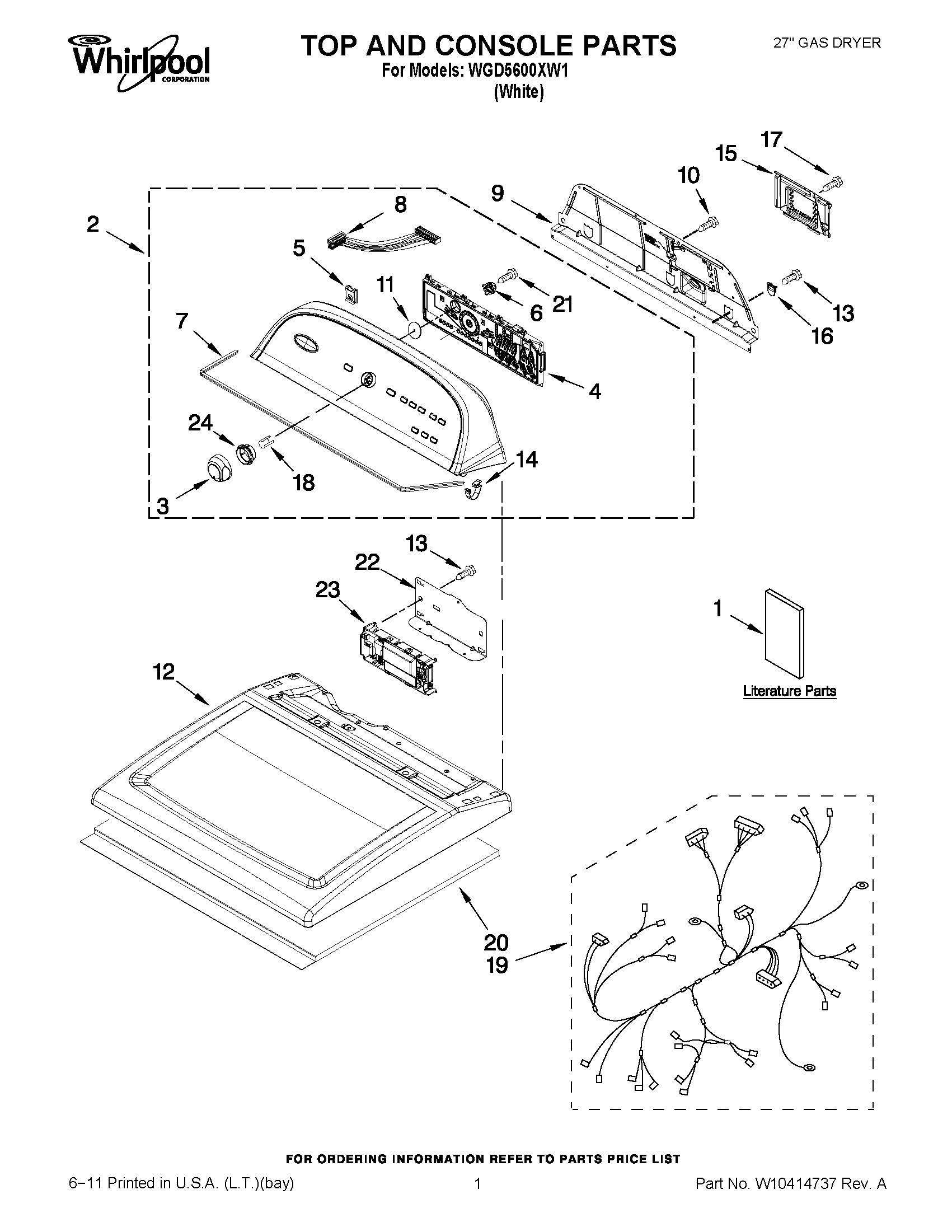

WGD5600XW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	GUIDE, USE & CARE
1	TECH SHEET
1	INSTRUCTIONS, INSTALLATION
2	WPW10269610 Whirlpool Console
3	WPW10251392 Whirlpool Knob
4	ASSEMBLY, USER INTERFACE
5	W11213336 Whirlpool Nut
6	W10274524 Whirlpool Grommet
7	W10280079 Whirlpool Seal
8	CABLE, USER INTERFACE
9	W10096969 Whirlpool Rear Panel
10	WP693995 Whirlpool Screw
11	W10323092 Whirlpool Seal
12	TOP (WHITE)
13	WP488729 Whirlpool Refrigerator Door Screw
14	WP8312709 Whirlpool Endcap Clip
15	COVER, TERMINAL BLOCK
16	W10279552 Whirlpool Plug
17	WP90767 Whirlpool Screw
18	WP8536939 Whirlpool Spring Clip
19	W10253982 Whirlpool Wire Harness
20	W10123956 Whirlpool Sound Absorber
21	W10853898 Whirlpool Screw
22	W10271580 Whirlpool Mount
23	WPW10317636-includeCORE Whirlpool WPW10317636 Refrigerator Electronic Control Board + Core
24	W10325119 Whirlpool Spacer
