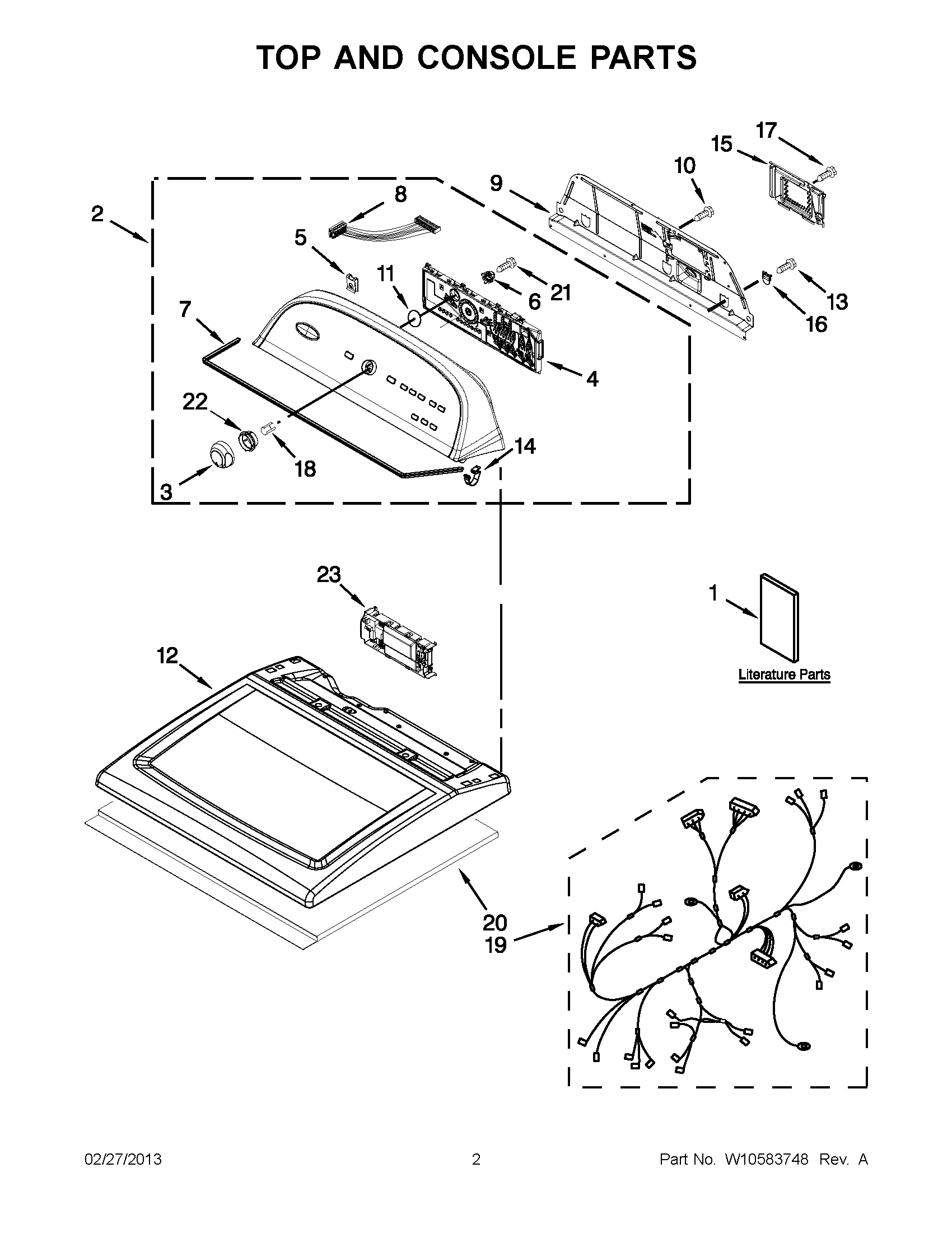

WGD5600XW2 01 – TOP AND CONSOLE PARTS

WGD5600XW2 01 – TOP AND CONSOLE PARTS

Written by

in

WGD5600XW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1GUIDE, USE & CARE
1WIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
2WPW10269610 Whirlpool Console
3WPW10251392 Whirlpool Knob
4ASSEMBLY, USER INTERFACE
5W11213336 Whirlpool Nut
6W10274524 Whirlpool Grommet
7W10280079 Whirlpool Seal
8CABLE, USER INTERFACE
9W10550615 Whirlpool Rear Panel
10WP693995 Whirlpool Screw
11W10323092 Whirlpool Seal
12TOP (WHITE)
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15COVER, TERMINAL BLOCK
16W10279552 Whirlpool Plug
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19W10253982 Whirlpool Wire Harness
20W10123956 Whirlpool Sound Absorber
21W10853898 Whirlpool Screw
22W10325119 Whirlpool Spacer
23WPW10317636-includeCORE Whirlpool WPW10317636 Refrigerator Electronic Control Board + Core
