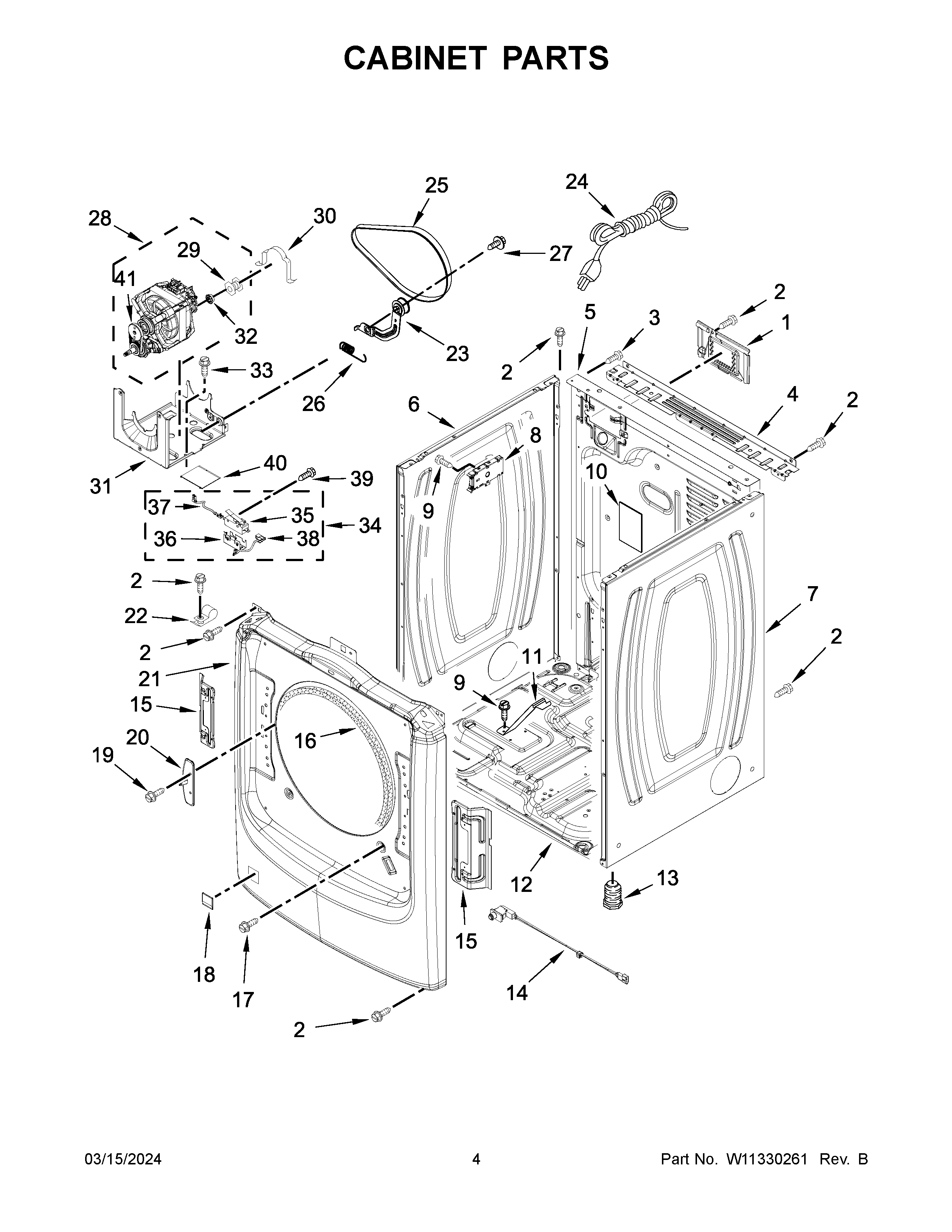

WGD560LHW0 03 – CABINET PARTS

Products

Position	Product
NI	W10323246 Whirlpool Dryer Vent Kit 4-Way
NI	49621 Whirlpool Leveling Feet
1	W10819767 Whirlpool Cover
2	WP488729 Whirlpool Refrigerator Door Screw
3	W10850756 Whirlpool Screw
4	WPW10208382 Whirlpool Dryer Bracket
5	W10487431 Whirlpool Rear Panel
6	W11233548 Whirlpool Panel
7	W11310043 Whirlpool Panel
8	W11331267-includeCORE Whirlpool W11331267 Washer Electronic Control Board + Core
9	WP693995 Whirlpool Screw
10	W11409002 Whirlpool Pad
11	W10181903 Whirlpool Bracket
12	W11215531 Whirlpool Base
14	W11427601 Whirlpool Door Switch
15	W11310030 Whirlpool Bracket Assembly
16	WP3387242 Whirlpool Seal
17	WP308685 Whirlpool Microwave Screw
18	W10811916 Whirlpool Plug
19	SCREW
20	W11310031 Whirlpool Strike Assembly
21	W11310029 Whirlpool Panel
22	3978776 Whirlpool Bracket
23	WPW10344192 Whirlpool Idler Pulley
24	W11628810 Whirlpool Power Cord
25	661570V Whirlpool Dryer Drum Belt
26	WPW10446781 Whirlpool Spring
27	WP3389420 Whirlpool Screw
28	W11234001 Whirlpool Drive Motor
29	WP8066184 Whirlpool Dryer Motor Pulley
30	CLAMP
31	W11676491 Whirlpool Base
32	WP3393657 Whirlpool Belt Retainer
33	SCREW
35	WP8564010 Whirlpool Plug Switch
36	W11247665 Whirlpool Switch
37	W10167613 Whirlpool Wire
38	WIRE, MOTOR TO BELT SWITCH
39	WP98129 Whirlpool Screw
40	W11113654 Whirlpool Pad
41	WP3405160 Whirlpool Belt Assembly
