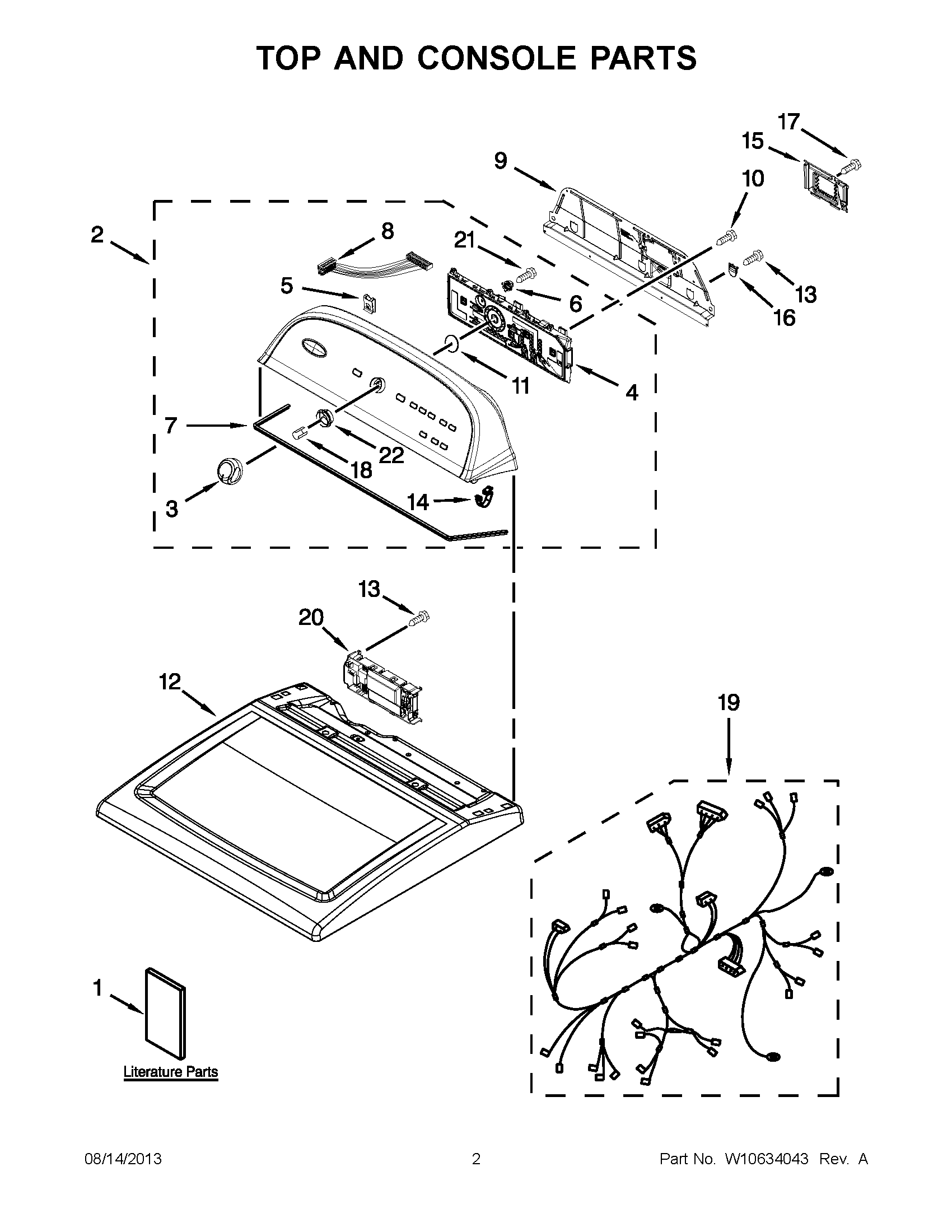

WGD5610XW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1GUIDE, USE & CARE
1WIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
2CONSOLE ASSEMBLY (COMPLETE)
3WPW10251392 Whirlpool Knob
4WPW10352593-includeCORE Whirlpool WPW10352593 Refrigerator Electronic Control Board + Core
5W11213336 Whirlpool Nut
6W10274524 Whirlpool Grommet
7W10280079 Whirlpool Seal
8CABLE, USER INTERFACE
9W10096969 Whirlpool Rear Panel
10WP693995 Whirlpool Screw
11W10323092 Whirlpool Seal
12TOP (WHITE)
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15COVER, TERMINAL BLOCK
16W10279552 Whirlpool Plug
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19W10253982 Whirlpool Wire Harness
20WPW10352638-includeCORE Whirlpool WPW10352638 Refrigerator Electronic Control Board + Core
21W10853898 Whirlpool Screw
22W10325119 Whirlpool Spacer
