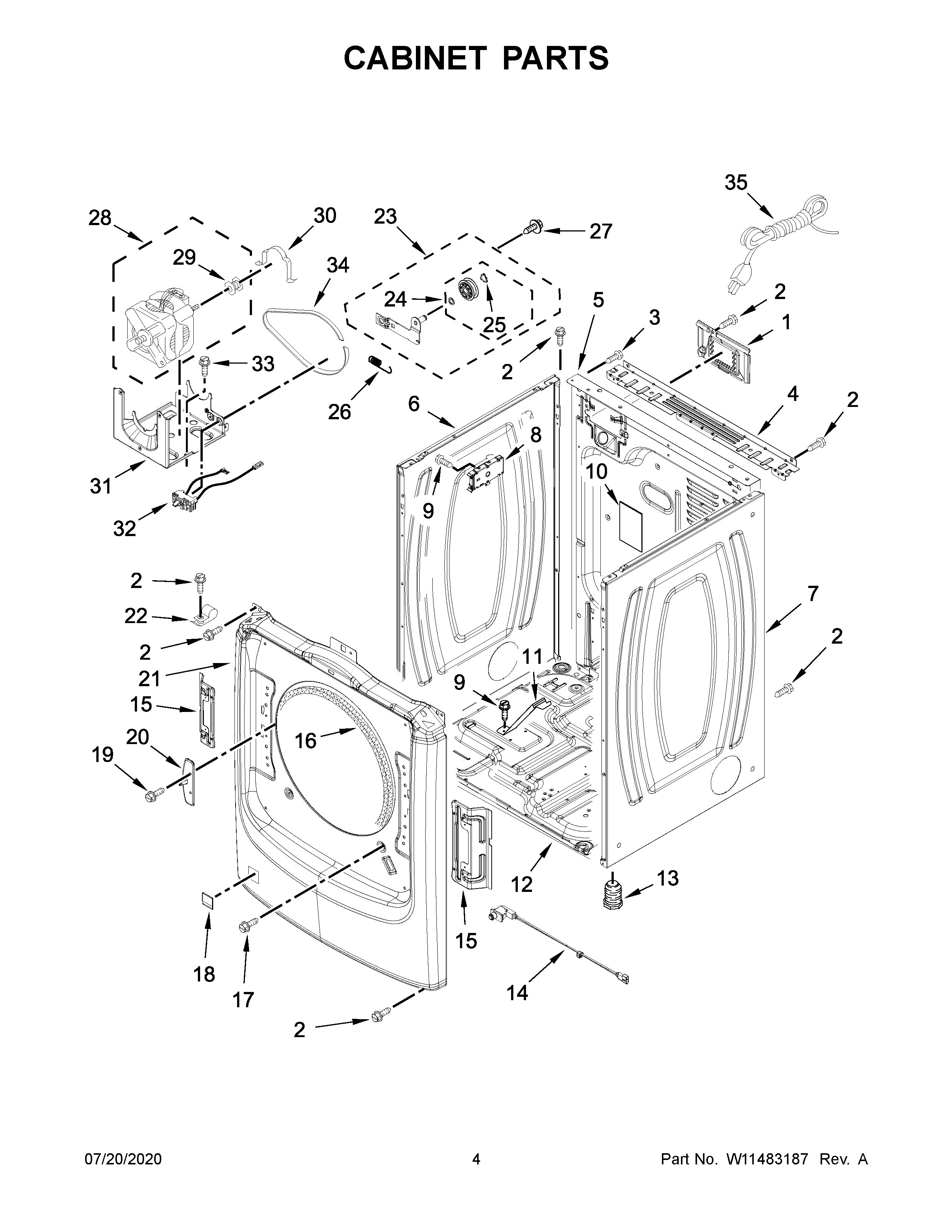

WGD5620HW2 03 – CABINET PARTS

WGD5620HW2 03 – CABINET PARTS

Products

PositionProduct
NIW10323246 Whirlpool Dryer Vent Kit 4-Way
1W10819767 Whirlpool Cover
2WP488729 Whirlpool Refrigerator Door Screw
3W10850756 Whirlpool Screw
4WPW10208382 Whirlpool Dryer Bracket
5W10487431 Whirlpool Rear Panel
6W11233548 Whirlpool Panel
7W11310043 Whirlpool Panel
8W11565856-includeCORE Whirlpool W11565856 Washer Electronic Control Board + Core
9WP693995 Whirlpool Screw
10W11409002 Whirlpool Pad
11W10181903 Whirlpool Bracket
12W11215531 Whirlpool Base
13A49621 Whirlpool Leveling Feet
14W11551763 Whirlpool Door Switch
15W11310030 Whirlpool Bracket Assembly
16WP3387242 Whirlpool Seal
17WP308685 Whirlpool Microwave Screw
18W10811916 Whirlpool Plug
19SCREW
20W11310031 Whirlpool Strike Assembly
21PANEL
223978776 Whirlpool Bracket
23W10837240 Whirlpool Dryer Idler Pulley
24279640 Whirlpool Dryer Idler Pulley Kit
25WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26WPW10446781 Whirlpool Spring
27WP3389420 Whirlpool Screw
28MOTOR-DRVE
29WP8066184 Whirlpool Dryer Motor Pulley
30CLAMP
31W11481730 Whirlpool Bracket
32W11662087 Whirlpool Dryer Switch
33SCREW
34661570V Whirlpool Dryer Drum Belt
35W11628810 Whirlpool Power Cord
