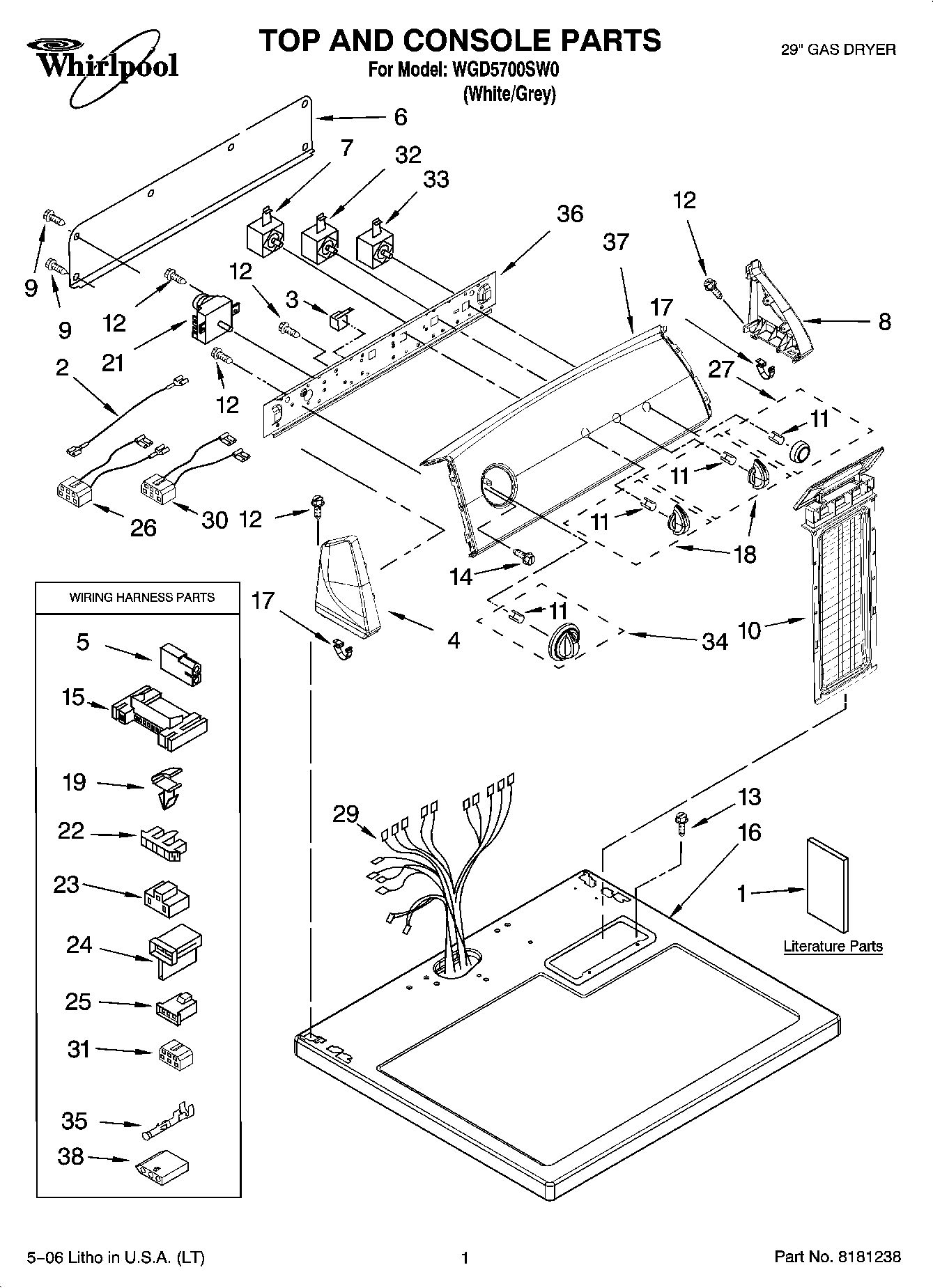

WGD5700SW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Use & Care Guide
1Wiring Diagram
1WPL 677818
1Instructions, Installation
1Sheet, Cycle Feature
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4WP8565957 Whirlpool Endcap Assembly
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8WP8565954 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16WP8563663 Whirlpool Top Assembly
17WP8312709 Whirlpool Endcap Clip
18Knob, Control (3)
19WP3394427 Whirlpool Clip
21WP8299766 Whirlpool Timer Assembly
22Connector, Timer
233401144 Whirlpool Connector
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
263397695 Whirlpool Wire Harness
27WPW10034790 Whirlpool Knob
298299879 Whirlpool Wire Harness
308539893 Whirlpool Wire Harness
31Block, Disconnect
32WP3405156 Whirlpool Switch
33WP3398095 Whirlpool Dryer Start Relay
34TIMER KNOB ASSEMBLY
35WP94614 Whirlpool Terminal
368566052 Whirlpool Bracket
37Panel, Control
383936144 Whirlpool Connector
