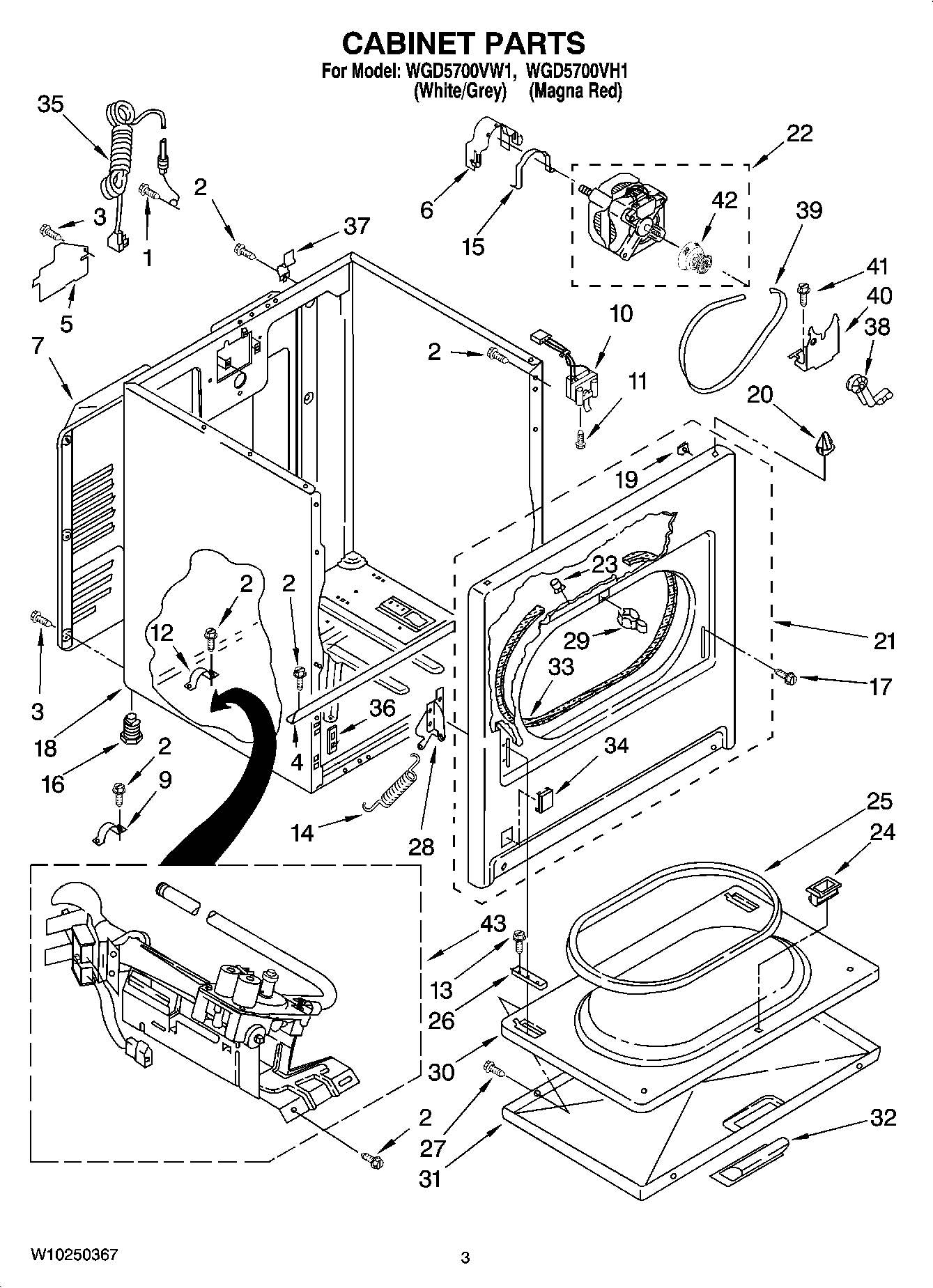

WGD5700VH1 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	WP3404162 Whirlpool Clamp
7	280043 Whirlpool Rear Panel
9	341029 Whirlpool Clamp
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
13	WP308685 Whirlpool Microwave Screw
14	WPW10041960 Whirlpool Door Spring
15	CLAMP
16	49621 Whirlpool Leveling Feet
17	Screw, 10-32 x 1/2
18	CABINET (RED (INCLUDES ILLUS. 4))
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	279740 Whirlpool Panel Primary with O/S2
21	Panel, Front (Magna Red)
22	279827 Whirlpool Dryer Drive Motor
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	W10906683 Whirlpool Door Seal
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	WP8066056 Whirlpool Door Hinge
28	WP8066057 Whirlpool Door Hinge
29	279570 Whirlpool Dryer Door Latch Kit
30	WP695737 Whirlpool Door
31	Door, Front (Red)
31	WP3393549 Whirlpool Door Assembly
32	Handle, Door (Red)
32	W10877261 Whirlpool Handle Assembly
33	W11035878 Whirlpool Bearing and Seal
34	Plug, Front Panel (White)
34	Plug, Front Panel (Magna Red)
35	W11222083 Whirlpool Power Cord
36	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
37	WP8066217 Whirlpool Hinge
38	WP691366 Whirlpool Dryer Idler Pulley Assembly
39	341241 Whirlpool Dryer Drum Belt
40	WP348780 Whirlpool Base
41	3400500 Whirlpool Screw
42	WP8066184 Whirlpool Dryer Motor Pulley
43	W10823508 Whirlpool Gas Burner
