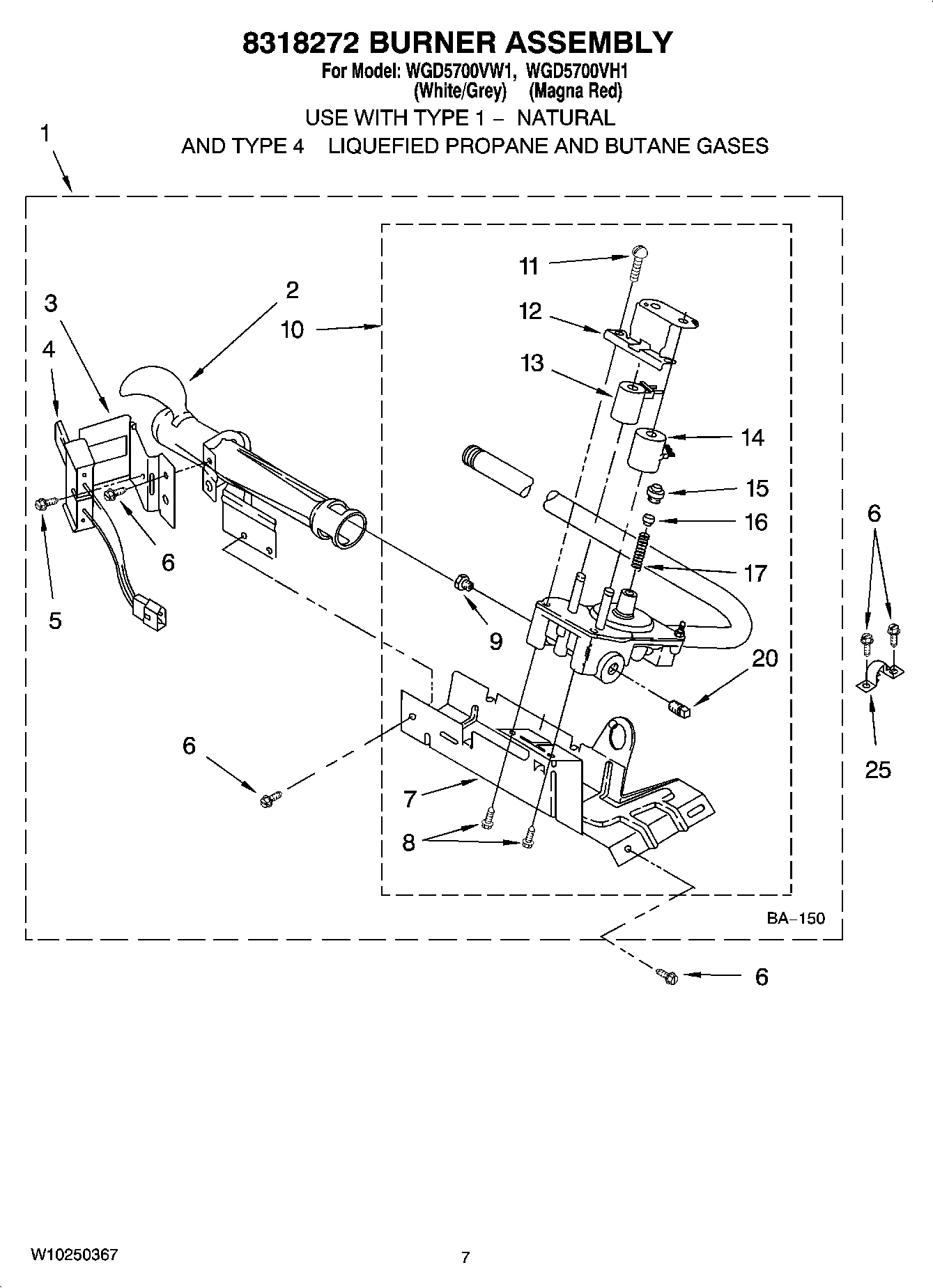

WGD5700VH1 04 – 8318272 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	ACCESSORY PARTS
	3406839 Whirlpool Drying Rack
	4392065 Whirlpool Dryer Maintenance Kit
	W11224254 Whirlpool Test Kit
	49572A Whirlpool Dryer Propane Gas Conversion Kit
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
	350930 Whirlpool White Spray Paint
	Following Parts Not Illustrated
	350938 Whirlpool Spray Gun
	W10218247 Whirlpool Touch-Up
1	W10823508 Whirlpool Gas Burner
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	WP229742 Whirlpool Gas Orifice
9	WP234826 Whirlpool Gas Orifice
9	WP234868 Whirlpool Gas Orifice
10	WP8318277 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
20	W10295523 Whirlpool Plug
25	341029 Whirlpool Clamp
