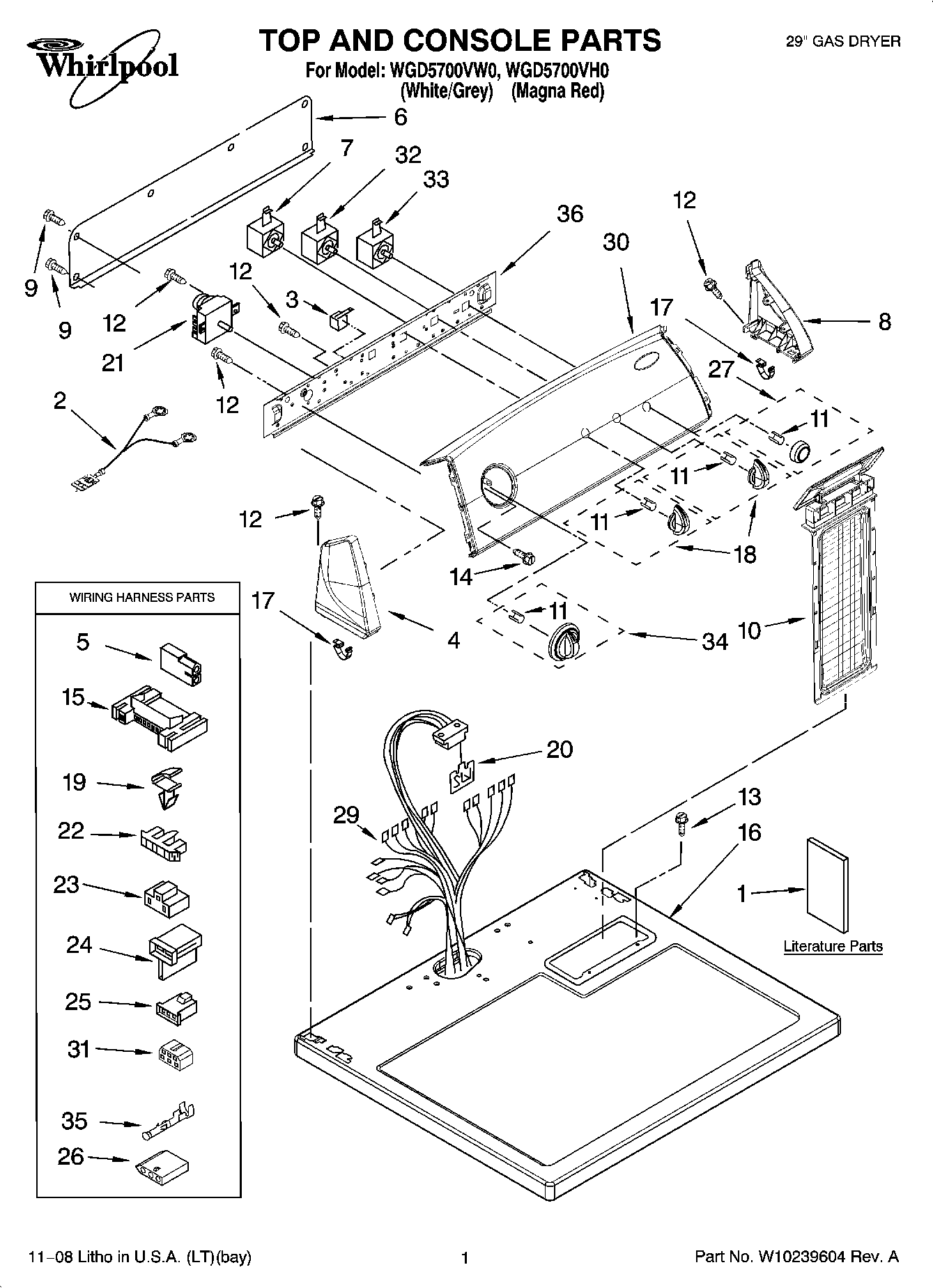

WGD5700VW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	WPL 677818
1	Sheet, Cycle Feature
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
1	Wiring Diagram
1	Installation Instructions (English)
2	Wire, Jumper (Tan)
3	WP3398093 Whirlpool Buzzer Adjuster
4	WP8565957 Whirlpool Endcap Assembly
4	Cap, End (L.H.) (Includes Item 19) (Red)
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	W10103406 Whirlpool Rear Panel
7	W11106324 Whirlpool Switch
8	WP8565954 Whirlpool Endcap
8	Cap, End (R.H.) (Includes Item 19) (Red)
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
10	Screen, Lint (Red)
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top (Red)
16	WP8563663 Whirlpool Top Assembly
17	WP8312709 Whirlpool Endcap Clip
18	Knob, Control (3)
19	WP3394427 Whirlpool Clip
20	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
21	WP3406725 Whirlpool Timer
22	Connector, Timer
23	3401144 Whirlpool Connector
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
26	3936144 Whirlpool Connector
27	W10034770 Whirlpool Knob Assembly
29	Harness, Wiring
30	Panel, Control
31	Block, Disconnect
32	3405154 Whirlpool Primary Switch
33	WP3398094 Whirlpool Push To Start Switch
34	TIMER KNOB ASSEMBLY
35	WP94614 Whirlpool Terminal
36	8566052 Whirlpool Bracket
