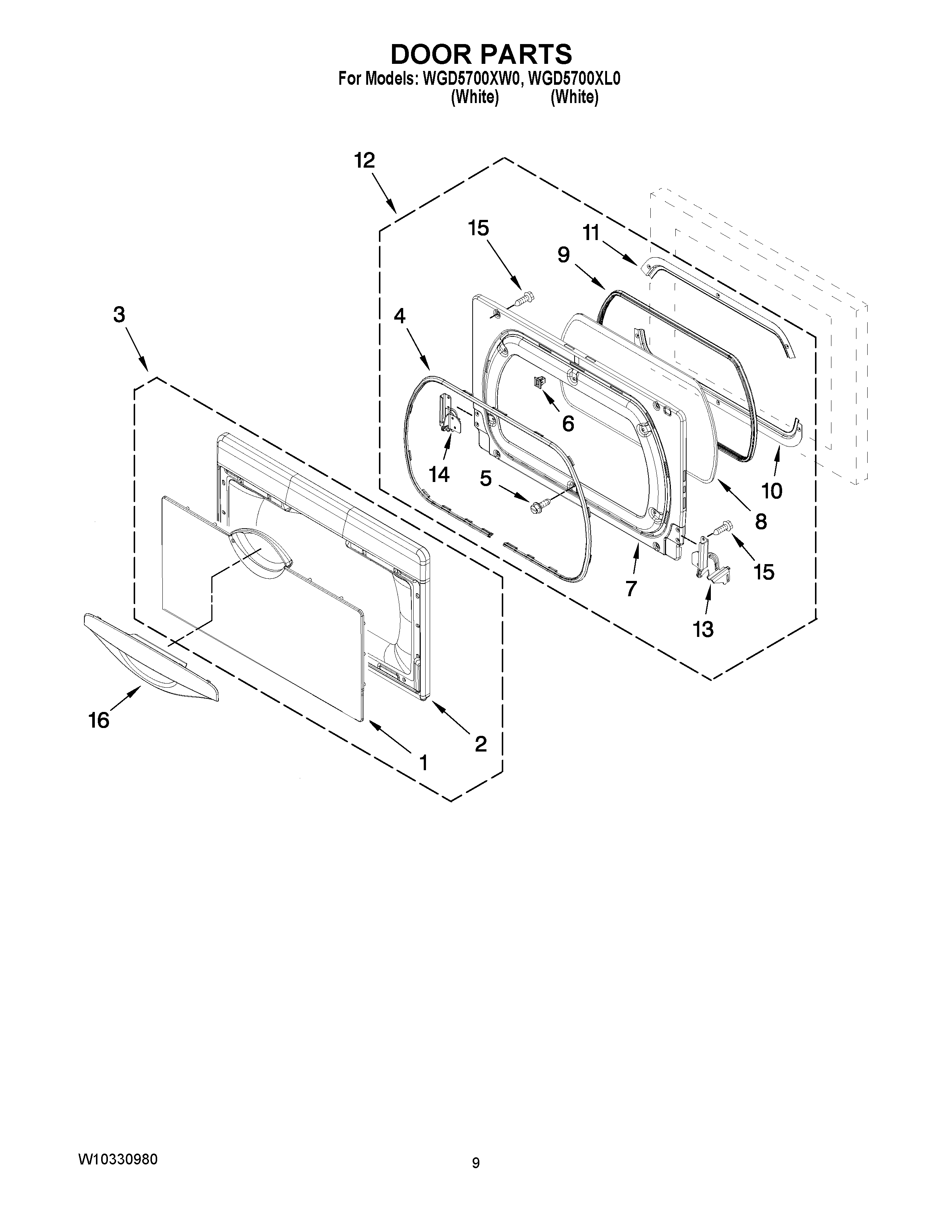

WGD5700XL0 05 – DOOR PARTS

WGD5700XL0 05 – DOOR PARTS

Written by

in

WGD5700XL0 05 – DOOR PARTS

Products

PositionProduct
1WINDOW, OUTER DOOR
2DOOR OUTER (WHITE)
3OUTER DOOR ASSEMBLY (WHITE)
3W10284142 Whirlpool Door Assembly
4WPW10354795 Whirlpool Door Seal
5WP3373329 Whirlpool Dishwasher Screw
6279570 Whirlpool Dryer Door Latch Kit
7W10284133 Whirlpool Door
8GLASS, DOOR
9W11676508 Whirlpool Dryer Seal
10RETAINER, GLASS LOWER
11RETAINER, GLASS UPPER
12W11376676 Whirlpool Door
13W11371722 Whirlpool Hinge
14W11376139 Whirlpool Hinge
15WP308685 Whirlpool Microwave Screw
16WPW10284093 Whirlpool Handle
