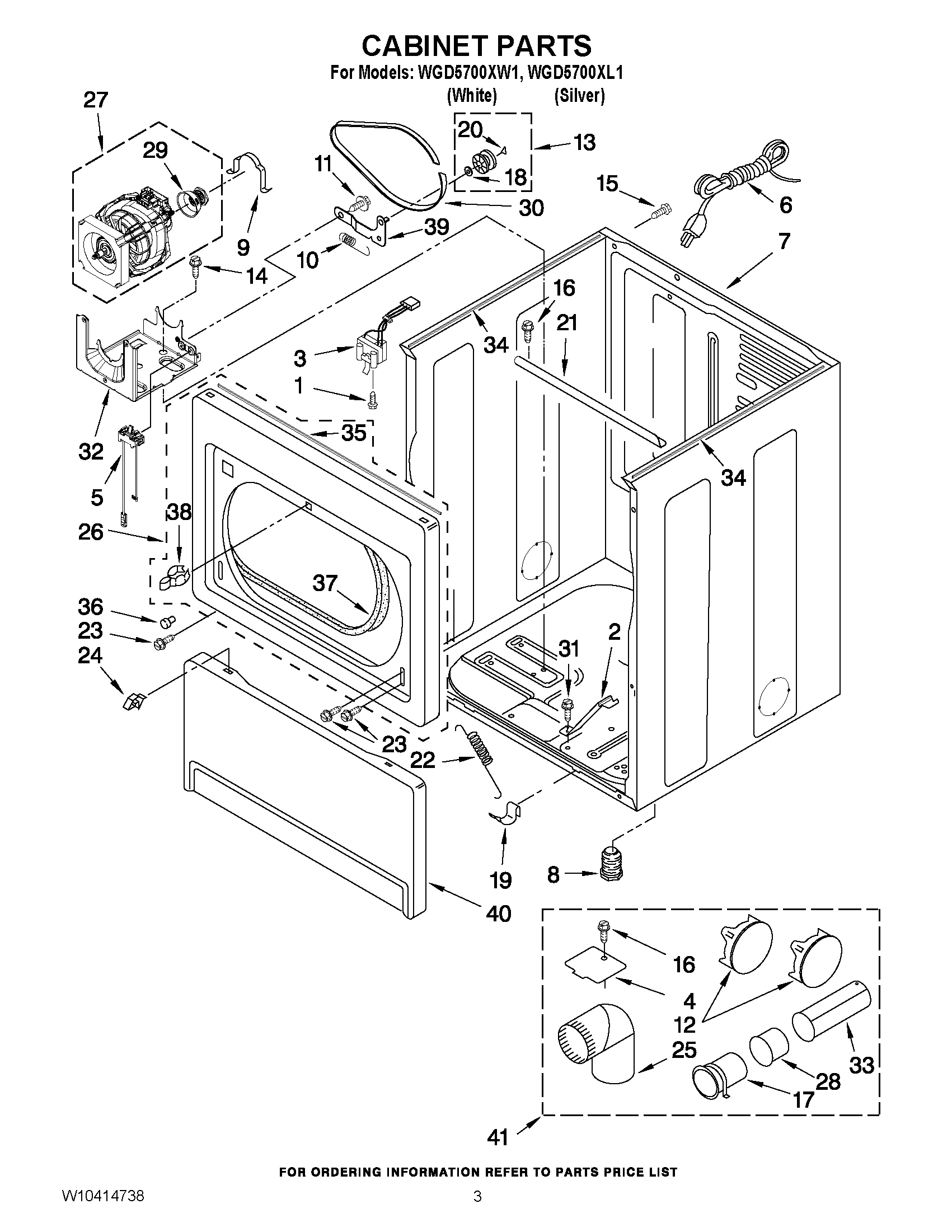

WGD5700XL1 02 – CABINET PARTS

WGD5700XL1 02 – CABINET PARTS

Written by

in

WGD5700XL1 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
NIW10331132 Whirlpool Plug
1WP3395530 Whirlpool Screw
2W10181903 Whirlpool Bracket
3WP3406107 Whirlpool Dryer Door Switch
4WPW10354249 Whirlpool Cover
5WPW10411937 Whirlpool Switch
6W11222083 Whirlpool Power Cord
7CABINET (SILVER)
7W11417441 Whirlpool Cabinet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14SCREW
15WP90767 Whirlpool Screw
16WP488729 Whirlpool Refrigerator Door Screw
17WP8563747 Whirlpool Exhaust Pipe
18WPW10121334 Whirlpool Washer
19WPW10291934 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W10236068 Whirlpool Bracket
22WP3387565 Whirlpool Door Spring
23WP308685 Whirlpool Microwave Screw
24WP3388229 Whirlpool Dryer Spring Clip
25WPW10416072 Whirlpool Elbow
26PANEL, FRONT (WHITE)
26WPL W10292893
27MOTOR, ASSEMBLY 1/3 HP
28WPW10331278 Whirlpool Exhaust Pipe
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP693995 Whirlpool Screw
32W11481730 Whirlpool Bracket
33WP8563749 Whirlpool Exhaust Pipe
34W10336128 Whirlpool Seal
35W10312811 Whirlpool Seal
36693152 Whirlpool Bumper
37WP3387242 Whirlpool Seal
38279570 Whirlpool Dryer Door Latch Kit
39W10837240 Whirlpool Dryer Idler Pulley
40WP3406797 Whirlpool Toe Panel
40TOE PANEL (INCLUDES, ILLUS. 2 ) (SILVER)
