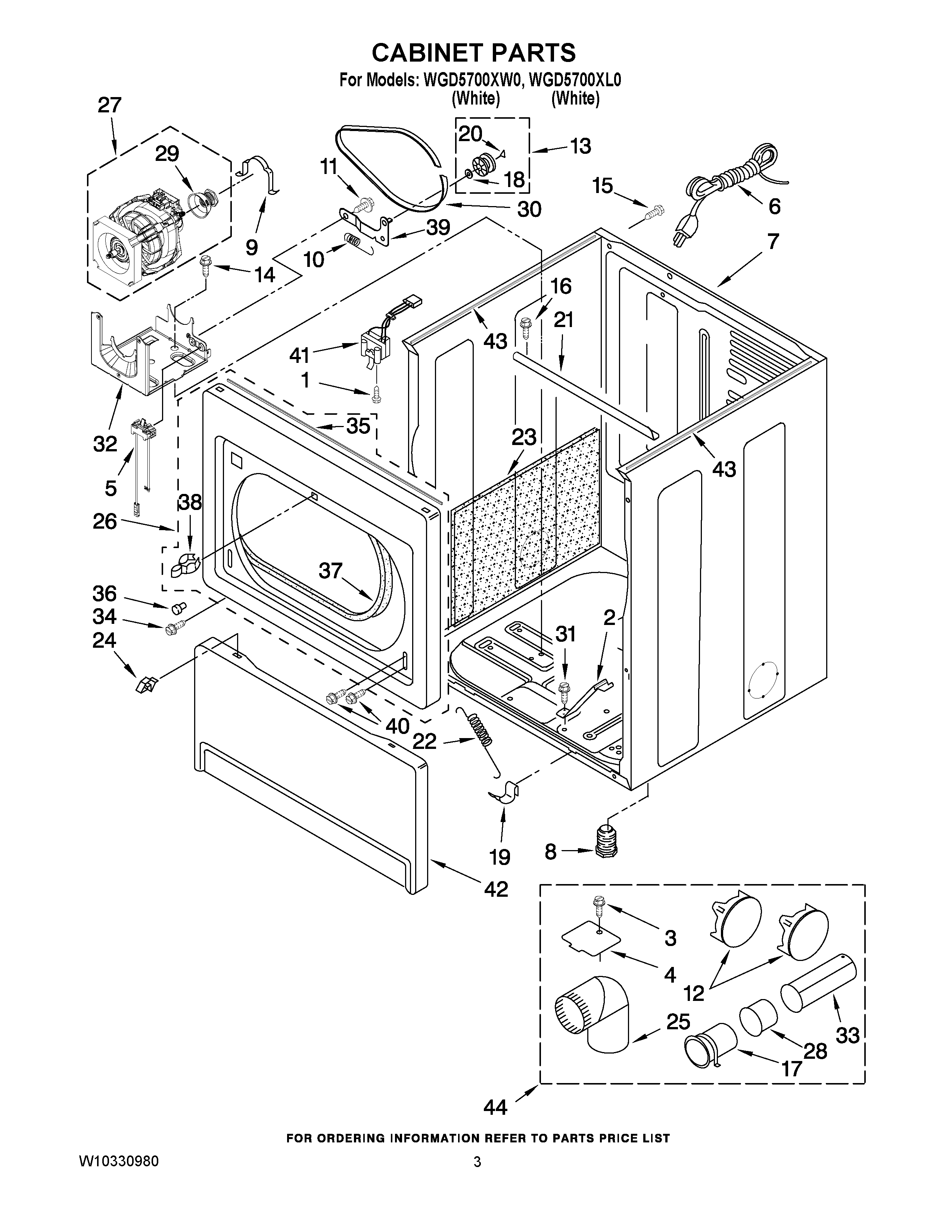

WGD5700XW0 02 – CABINET PARTS

WGD5700XW0 02 – CABINET PARTS

Written by

in

WGD5700XW0 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WP3395530 Whirlpool Screw
2W10181903 Whirlpool Bracket
4WPW10354249 Whirlpool Cover
5WPW10411937 Whirlpool Switch
6W11222083 Whirlpool Power Cord
7W11417441 Whirlpool Cabinet
7CABINET (SILVER)
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14SCREW
15W10850756 Whirlpool Screw
16WP488729 Whirlpool Refrigerator Door Screw
17WP8563747 Whirlpool Exhaust Pipe
18WPW10121334 Whirlpool Washer
19WPW10291934 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21Bracket, Cabinet
22WP3387565 Whirlpool Door Spring
23W10123956 Whirlpool Sound Absorber
24WP3388229 Whirlpool Dryer Spring Clip
25WPW10416072 Whirlpool Elbow
26WPL W10292893
26PANEL, FRONT (WHITE)
27279787 Whirlpool Dryer Drive Motor
28WPW10331278 Whirlpool Exhaust Pipe
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP693995 Whirlpool Screw
32W11481730 Whirlpool Bracket
33WP8563749 Whirlpool Exhaust Pipe
34W10891954 Whirlpool Screw
35W10312811 Whirlpool Seal
36693152 Whirlpool Bumper
37WP3387242 Whirlpool Seal
38279570 Whirlpool Dryer Door Latch Kit
39W10837240 Whirlpool Dryer Idler Pulley
40WP308685 Whirlpool Microwave Screw
41WP3406107 Whirlpool Dryer Door Switch
42TOE PANEL (INCLUDES, ILLUS. 2 ) (SILVER)
42WP3406797 Whirlpool Toe Panel
43W10336128 Whirlpool Seal
44W10470674 Whirlpool Dryer Side Vent Exhaust Kit
