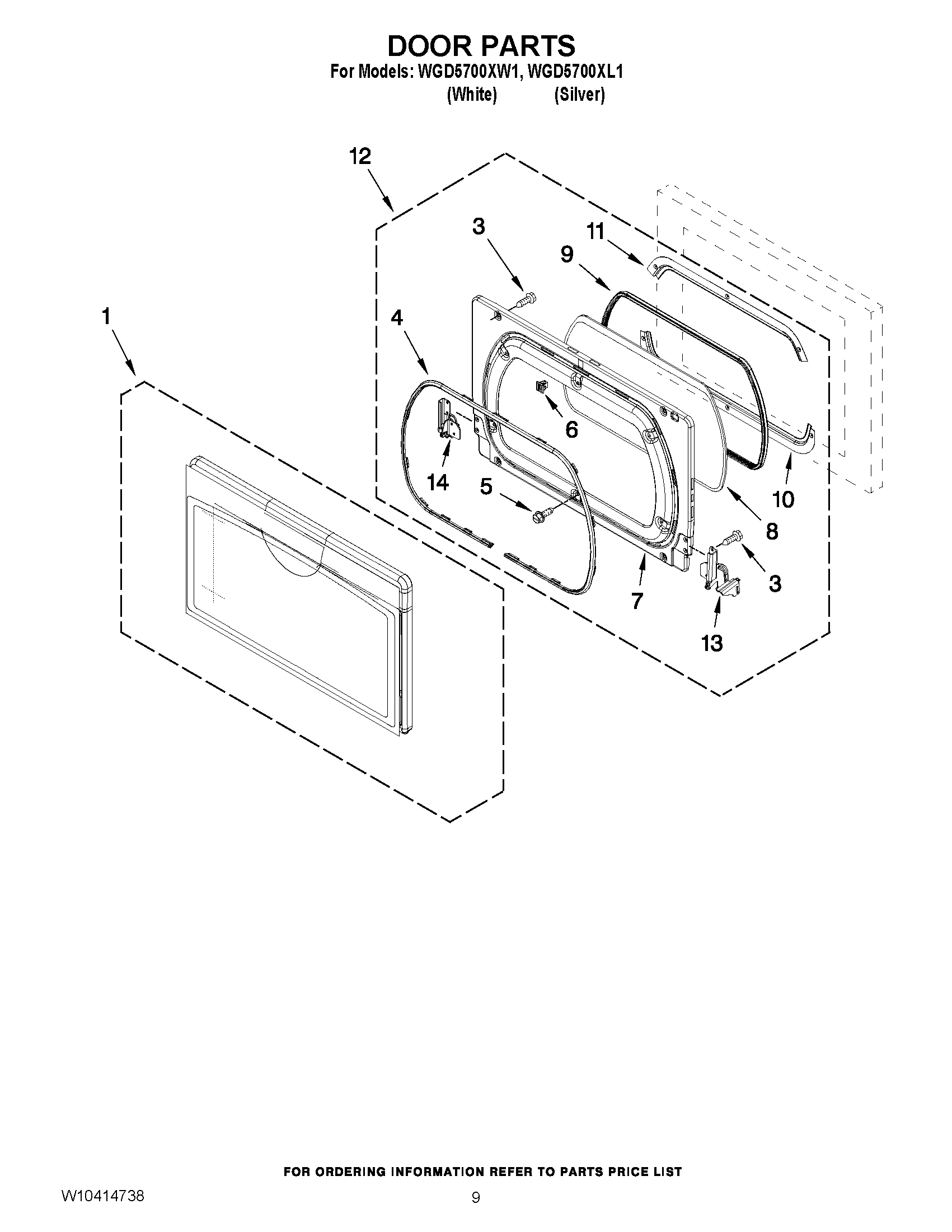

WGD5700XW1 05 – DOOR PARTS

WGD5700XW1 05 – DOOR PARTS

Written by

in

WGD5700XW1 05 – DOOR PARTS

Products

PositionProduct
1W10284142 Whirlpool Door Assembly
1OUTER DOOR ASSEMBLY (WHITE)
3WP308685 Whirlpool Microwave Screw
4WPW10354795 Whirlpool Door Seal
5WP3373329 Whirlpool Dishwasher Screw
6279570 Whirlpool Dryer Door Latch Kit
7W10284133 Whirlpool Door
8GLASS, DOOR
9W11676508 Whirlpool Dryer Seal
10RETAINER, GLASS LOWER
11RETAINER, GLASS UPPER
12W11376676 Whirlpool Door
13W11371722 Whirlpool Hinge
14W11376139 Whirlpool Hinge
