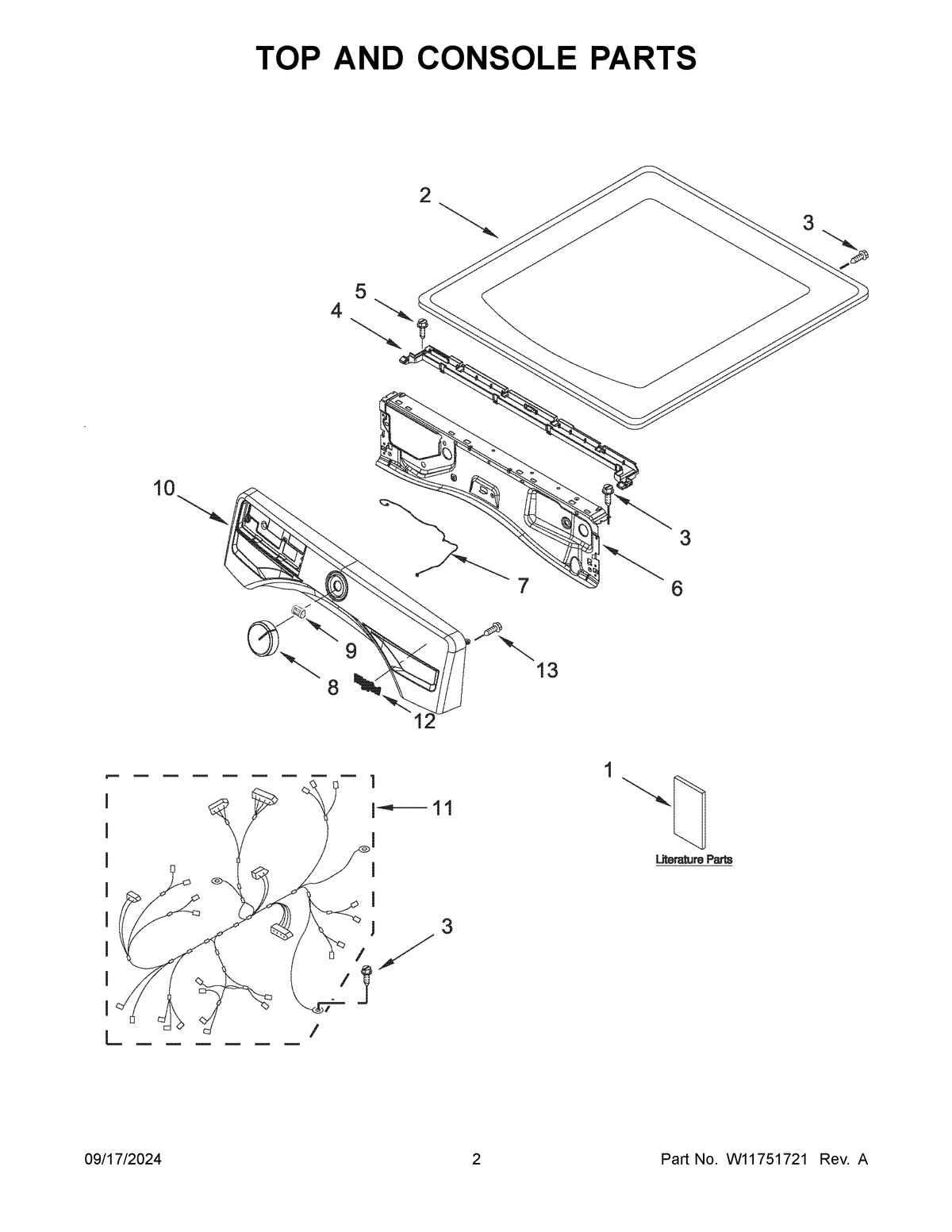

WGD5720RR0 02 – TOP AND CONSOLE PARTS

WGD5720RR0 02 – TOP AND CONSOLE PARTS

Written by

in

WGD5720RR0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1OWNERS MANUAL
1BQUICK START GUIDE
1ATECH SHEET
2TOP (RADIANT SILVER)
3WP693995 Whirlpool Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7HARNESS, ACU TO HMI
8ASSEMBLY, KNOB
9WP8536939 Whirlpool Spring Clip
10CONSOLE + CORE
11W11157863 Whirlpool Wire Harness
12W11223753 Whirlpool Refrigerator Nameplate
13WP9740848 Whirlpool Dishwasher Screw
