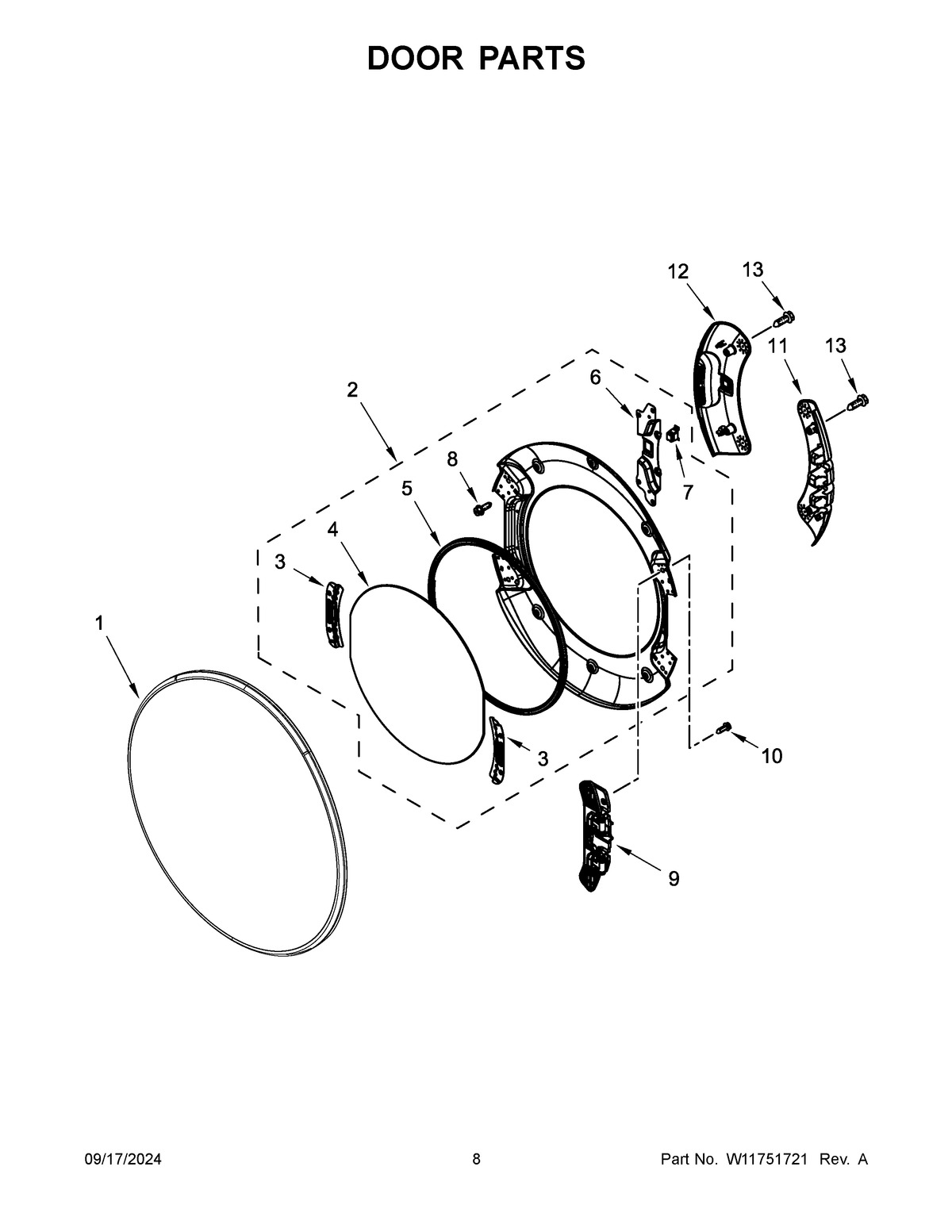

WGD5720RR0 05 – DOOR PARTS

WGD5720RR0 05 – DOOR PARTS

Written by

in

WGD5720RR0 05 – DOOR PARTS

Products

PositionProduct
1ASSEMBLY, OUTER DOOR (GREY)
2W11701947 Whirlpool Door Assembly
3W11310037 Whirlpool Retainer
4W11310036 Whirlpool Door Glass
5W11310035 Whirlpool Seal
6W11310039 Whirlpool Cover
7W11240283 Whirlpool Catch Assembly
8SCREW
9W11318815 Whirlpool Hinge
108540479 Whirlpool Screw
11W11120174 Whirlpool Cover Assembly
12COVER
13SCREW
