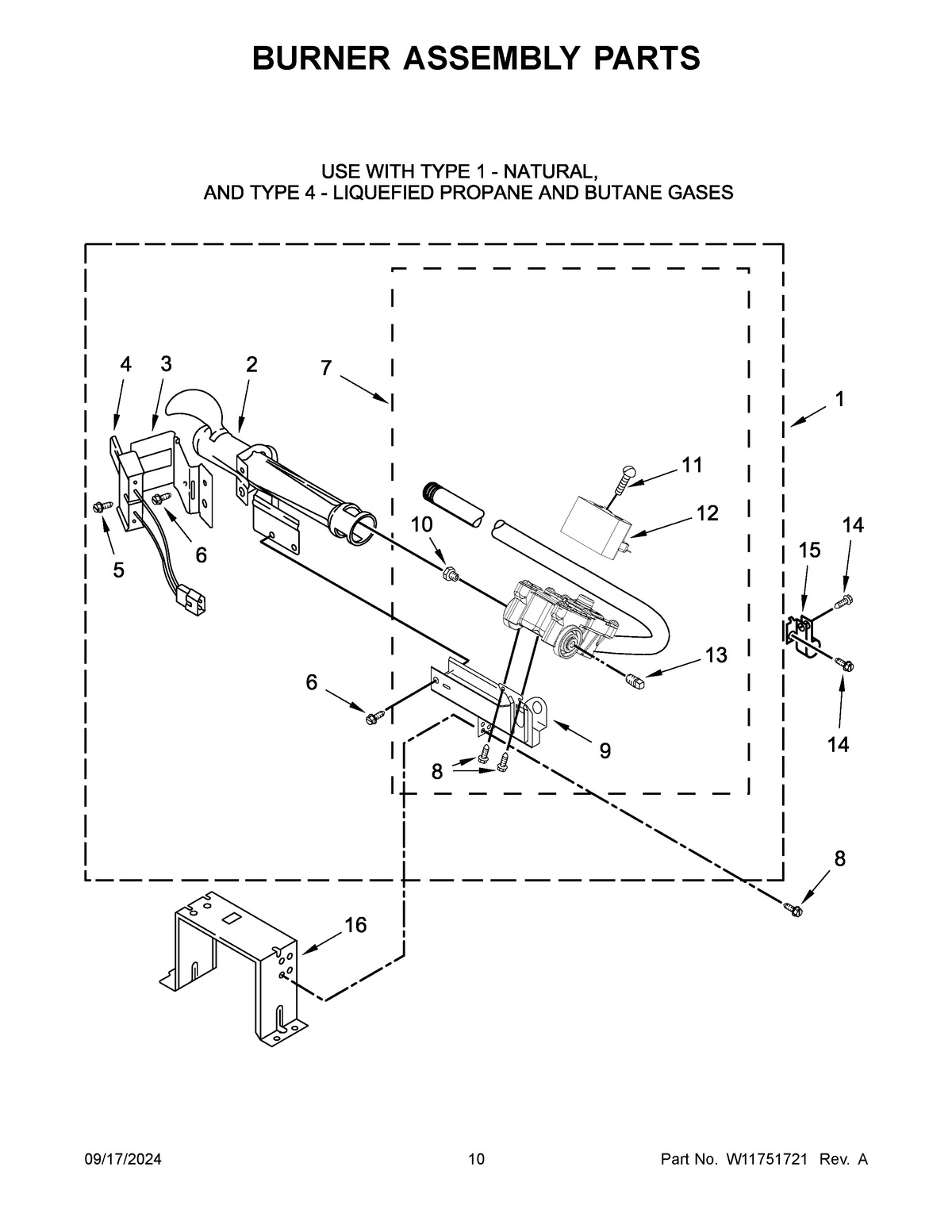

WGD5720RR0 06 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	W11581317 Whirlpool LP Gas Connector
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	W11652258 Whirlpool Gas Burner
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	W11646259 Whirlpool Gas Valve
8	WP693995 Whirlpool Screw
9	Base, Burner
10	WP15418 Whirlpool Gas Orifice
11	326049536 Whirlpool Screw
12	WPW10328463 Whirlpool Valve Coil
13	W10295523 Whirlpool Plug
14	WP488729 Whirlpool Refrigerator Door Screw
15	3387561 Whirlpool Clamp
16	Bracket, Support
