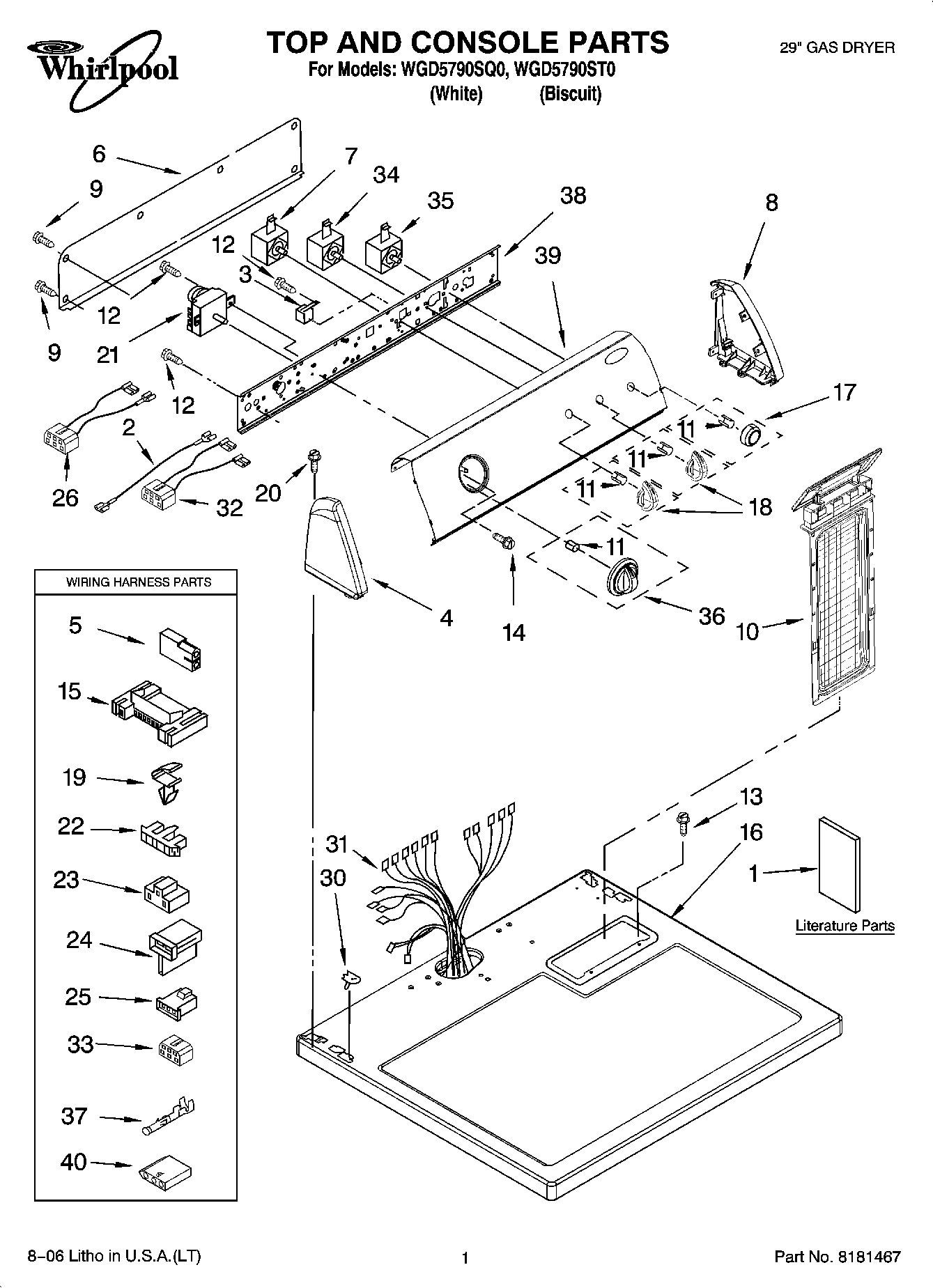

WGD5790SQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Use & Care Guide
1	Instructions, Installation
1	WPL 677818
1	Wiring Diagram
1	Sheet, Cycle Feature
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	Wire, Jumper (Black)
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (BIscuit)
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	W10103406 Whirlpool Rear Panel
7	WP3399639 Whirlpool Switch
8	WPL 8271362
8	W10820038 Whirlpool Endcap
9	WP693995 Whirlpool Screw
10	Screen, Lint (Biscuit)
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
16	Top
17	WP8566073 Whirlpool Appliance Knob
17	8566076 Whirlpool Knob Assembly
18	Knob, Control (B
18	Knob, Control
19	WP3394427 Whirlpool Clip
20	WP388326 Whirlpool Screw
21	WP8299766 Whirlpool Timer Assembly
22	Connector, Timer
23	3401144 Whirlpool Connector
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
26	3397695 Whirlpool Wire Harness
30	WP357213 Whirlpool Hinge Stopper
31	8299879 Whirlpool Wire Harness
32	8539893 Whirlpool Wire Harness
33	Block, Disconnect
34	WP3405156 Whirlpool Switch
35	WP3398095 Whirlpool Dryer Start Relay
36	Timer Knob Assembly (Biscuit)
36	WP8566061 Whirlpool Knob
37	WP94614 Whirlpool Terminal
38	Bracket, Control
39	Panel, Control (Biscuit)
39	Panel, Control (White)
40	3936144 Whirlpool Connector
