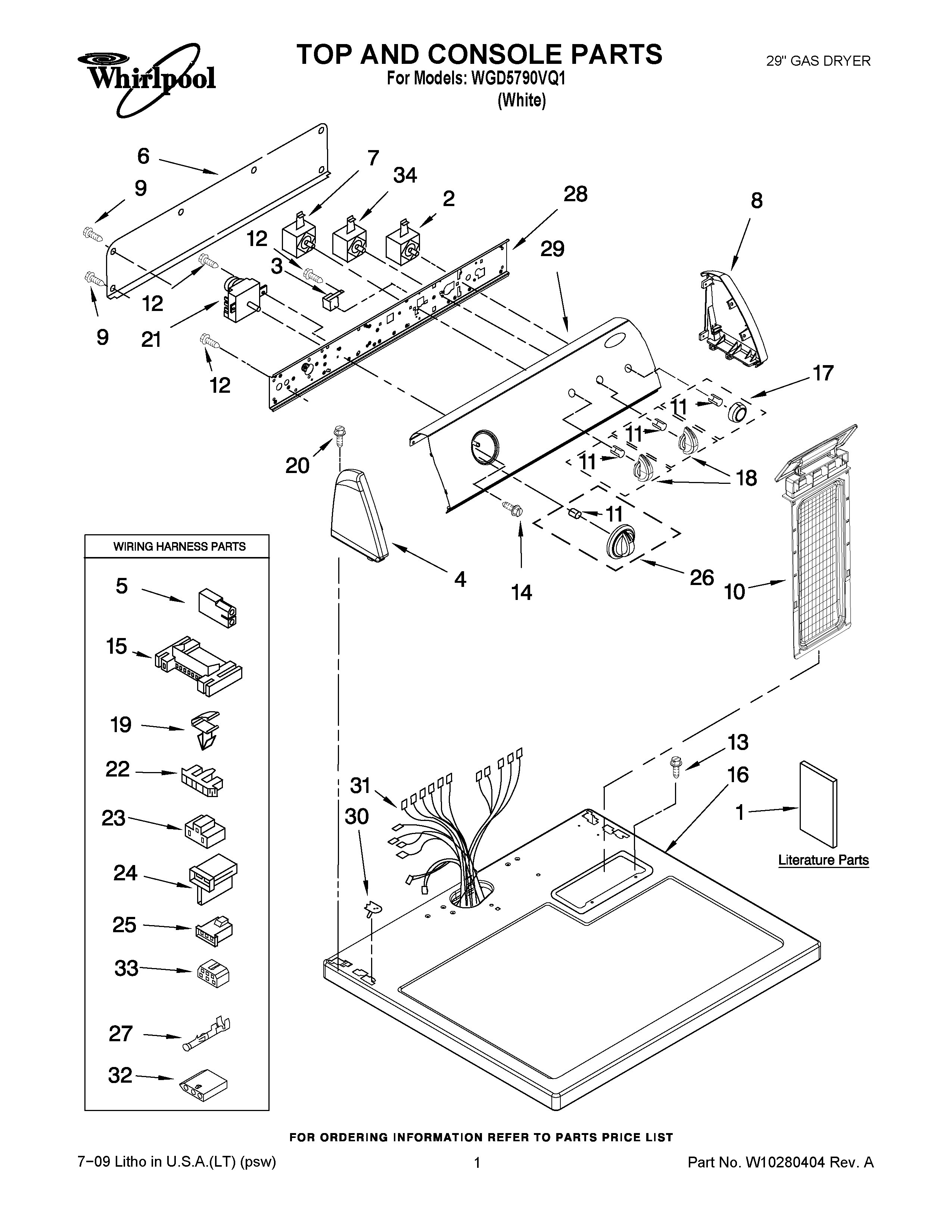

WGD5790VQ1 01 – TOP AND CONSOLE PARTS

WGD5790VQ1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD5790VQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Installation Instructions (English)
1Use & Care Guide
1Sheet, Cycle Feature
1Wiring Diagram
2WP3398095 Whirlpool Dryer Start Relay
3WP694419 Whirlpool Buzzer Adjuster
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17WP8566073 Whirlpool Appliance Knob
18Knob, Control
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WPW10185981 Whirlpool Timer
22Connector, Timer
233401144 Whirlpool Connector
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26WP8566061 Whirlpool Knob
27WP94614 Whirlpool Terminal
28Bracket, Control
29Panel, Control
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
323936144 Whirlpool Connector
33Block, Disconnect
34WP3405156 Whirlpool Switch
