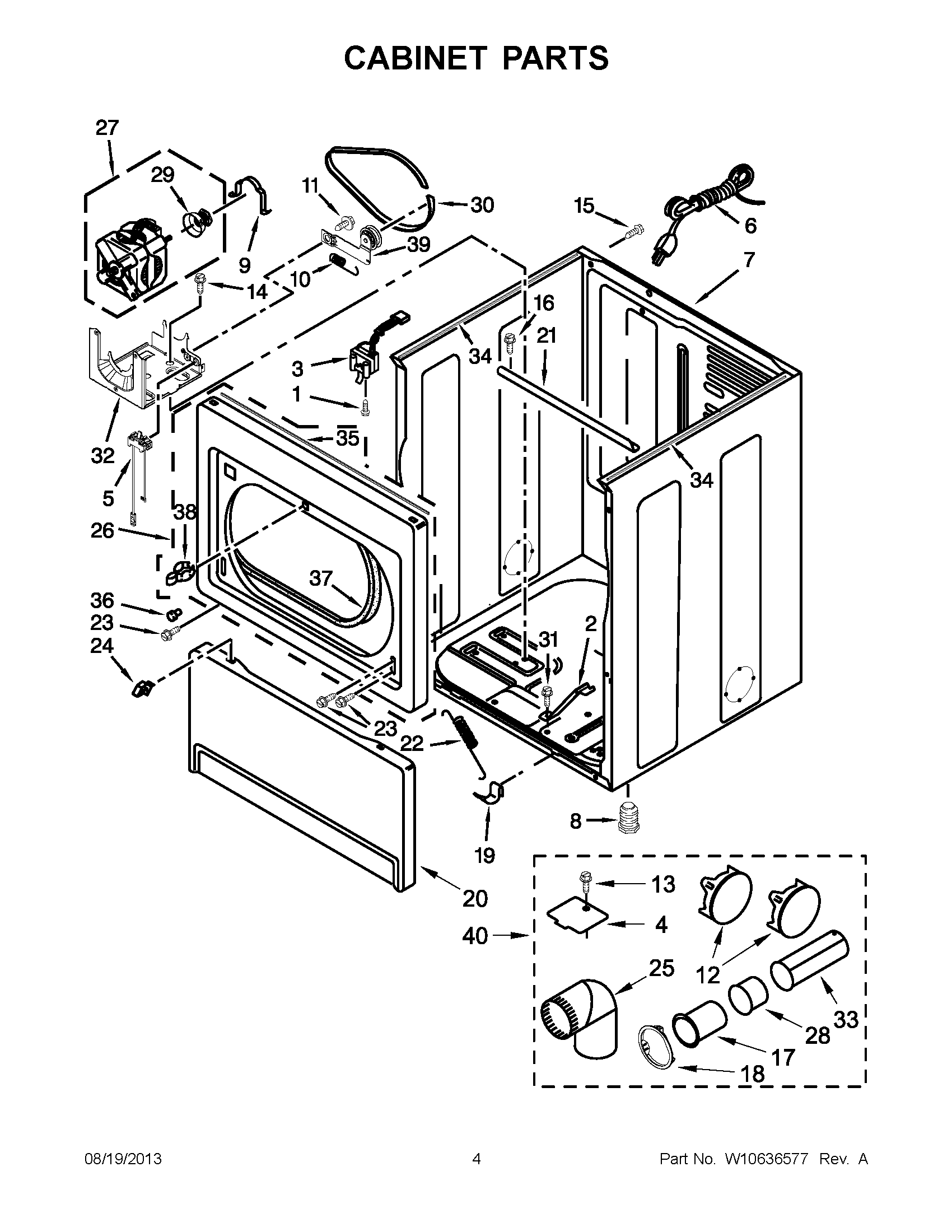

WGD5810BW0 03 – CABINET PARTS

Products

Position	Product
1	WP3395530 Whirlpool Screw
2	W10181903 Whirlpool Bracket
3	WP3406107 Whirlpool Dryer Door Switch
4	WPW10354249 Whirlpool Cover
5	W10847984 Whirlpool Switch
6	W11222083 Whirlpool Power Cord
7	W11417441 Whirlpool Cabinet
8	FEET-LVLNG (SET OF 4)
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
14	SCREW
15	WP90767 Whirlpool Screw
16	WP488729 Whirlpool Refrigerator Door Screw
17	WP8563747 Whirlpool Exhaust Pipe
18	WPW10344699 Whirlpool Collar
19	WPW10291934 Whirlpool Clip
20	WP3406797 Whirlpool Toe Panel
21	W10236068 Whirlpool Bracket
22	WP3387565 Whirlpool Door Spring
23	WP308685 Whirlpool Microwave Screw
24	WP3388229 Whirlpool Dryer Spring Clip
25	WPW10416072 Whirlpool Elbow
26	PANEL, FRONT (WHITE)
27	279787 Whirlpool Dryer Drive Motor
28	WPW10331278 Whirlpool Exhaust Pipe
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	WP693995 Whirlpool Screw
32	W11481730 Whirlpool Bracket
33	WP8563749 Whirlpool Exhaust Pipe
34	W10336128 Whirlpool Seal
35	W10312811 Whirlpool Seal
36	693152 Whirlpool Bumper
37	WP3387242 Whirlpool Seal
38	279570 Whirlpool Dryer Door Latch Kit
39	W10837240 Whirlpool Dryer Idler Pulley
40	W10323246 Whirlpool Dryer Vent Kit 4-Way
