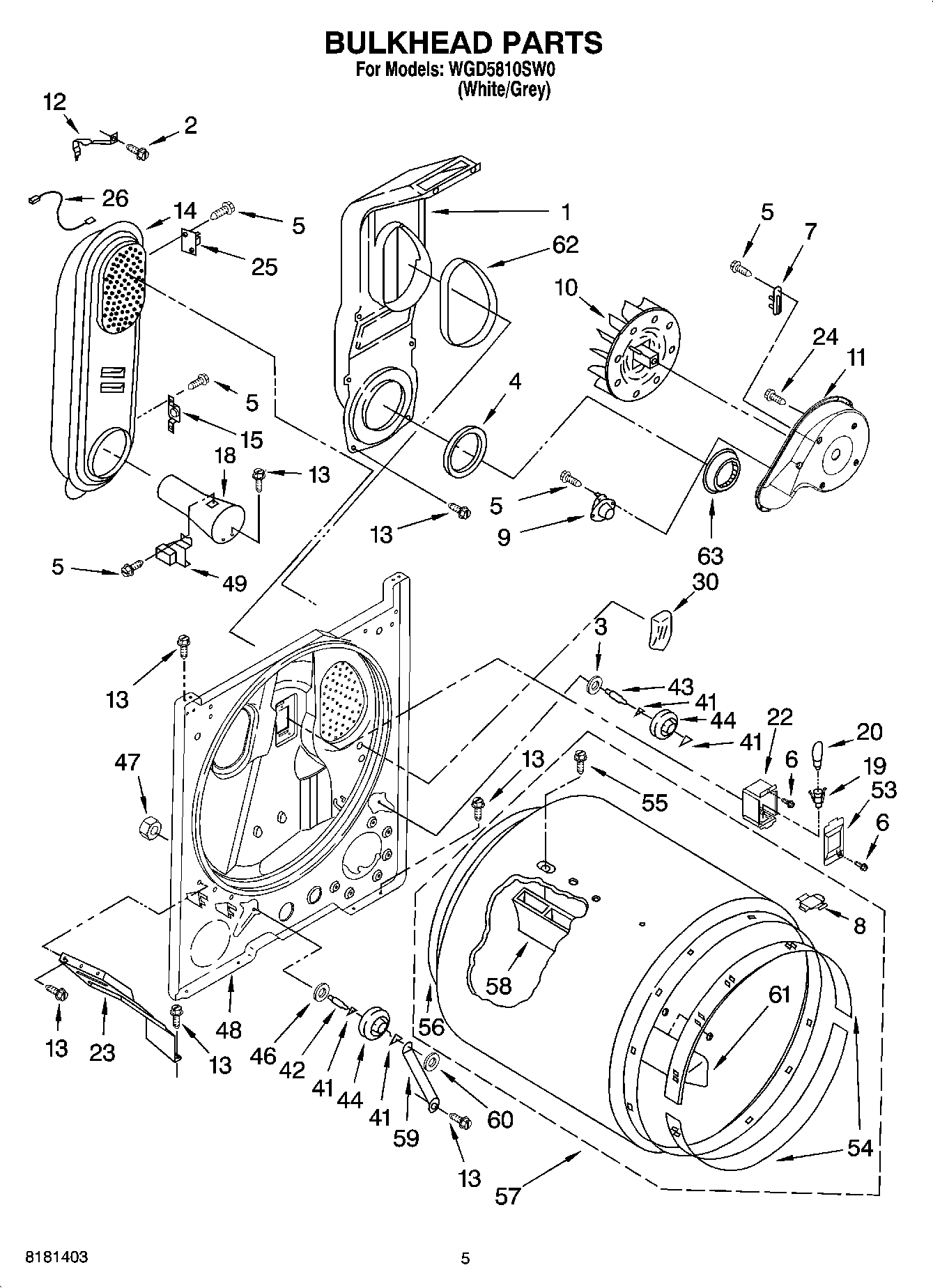

WGD5810SW0 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	8066086 Whirlpool Plug
9	WP8318268 Whirlpool Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	279980 Whirlpool Box
18	WP8066049 Whirlpool Funnel Assembly
19	W11700522 Whirlpool Socket
20	WP22002263 Whirlpool Dryer 10W Light Bulb
22	3977373 Whirlpool Bracket
23	W11398682 Whirlpool Bracket
24	WP488729 Whirlpool Refrigerator Door Screw
25	W11050897 Whirlpool Dryer High Limit Thermostat
26	WP3401707 Whirlpool Wire Assembly
30	SENSOR KIT
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	W10828905 Whirlpool Bulkhead OS1
49	WP338906 Whirlpool Dryer Gas Sensor
53	W11226088 Whirlpool Lens Assembly
54	279441 Whirlpool Front Bearing Ring
55	WPW10109200 Whirlpool Screw
56	W10612022 Whirlpool Felt Seal
57	W10899578 Whirlpool Dryer Drum Assembly
58	BAFFLE-DRM
59	W11684613 Whirlpool Bracket
60	WP90296 Whirlpool Clip
61	WP3403636 Whirlpool Drum Baffle
62	SEAL
63	W11233063 Whirlpool Shield Assembly
