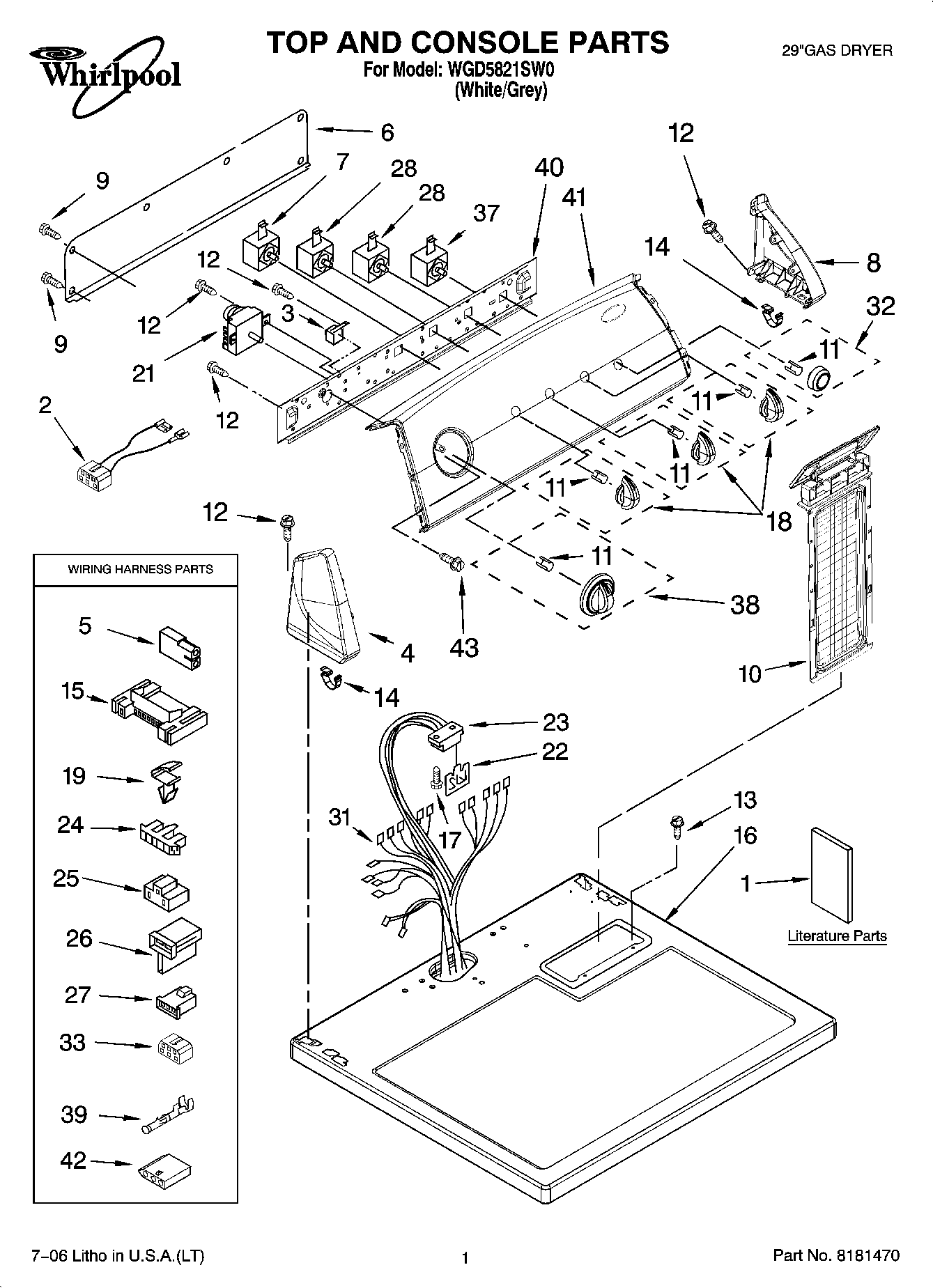

WGD5821SW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Use & Care Guide
1WPL 677818
1Instructions, Installation
1Wiring Diagram
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Sheet, Cycle Feature
23401695 Whirlpool Wire Harness
3WP694419 Whirlpool Buzzer Adjuster
4WP8565957 Whirlpool Endcap Assembly
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7W11106324 Whirlpool Switch
8WP8565954 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
14WP8312709 Whirlpool Endcap Clip
153395683 Whirlpool Connector
16WP8563663 Whirlpool Top Assembly
17W11693756 Whirlpool Screw Assembly
18Knob, Control (3)
19WP3394427 Whirlpool Clip
21TIMER
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
28WP3405156 Whirlpool Switch
31Harness, Wiring
32W10034770 Whirlpool Knob Assembly
33Block, Disconnect
37WP3398094 Whirlpool Push To Start Switch
38TIMER KNOB ASSEMBLY
39WP94614 Whirlpool Terminal
408566052 Whirlpool Bracket
41Panel, Control (Grey)
423936144 Whirlpool Connector
433400859 Whirlpool Screw
