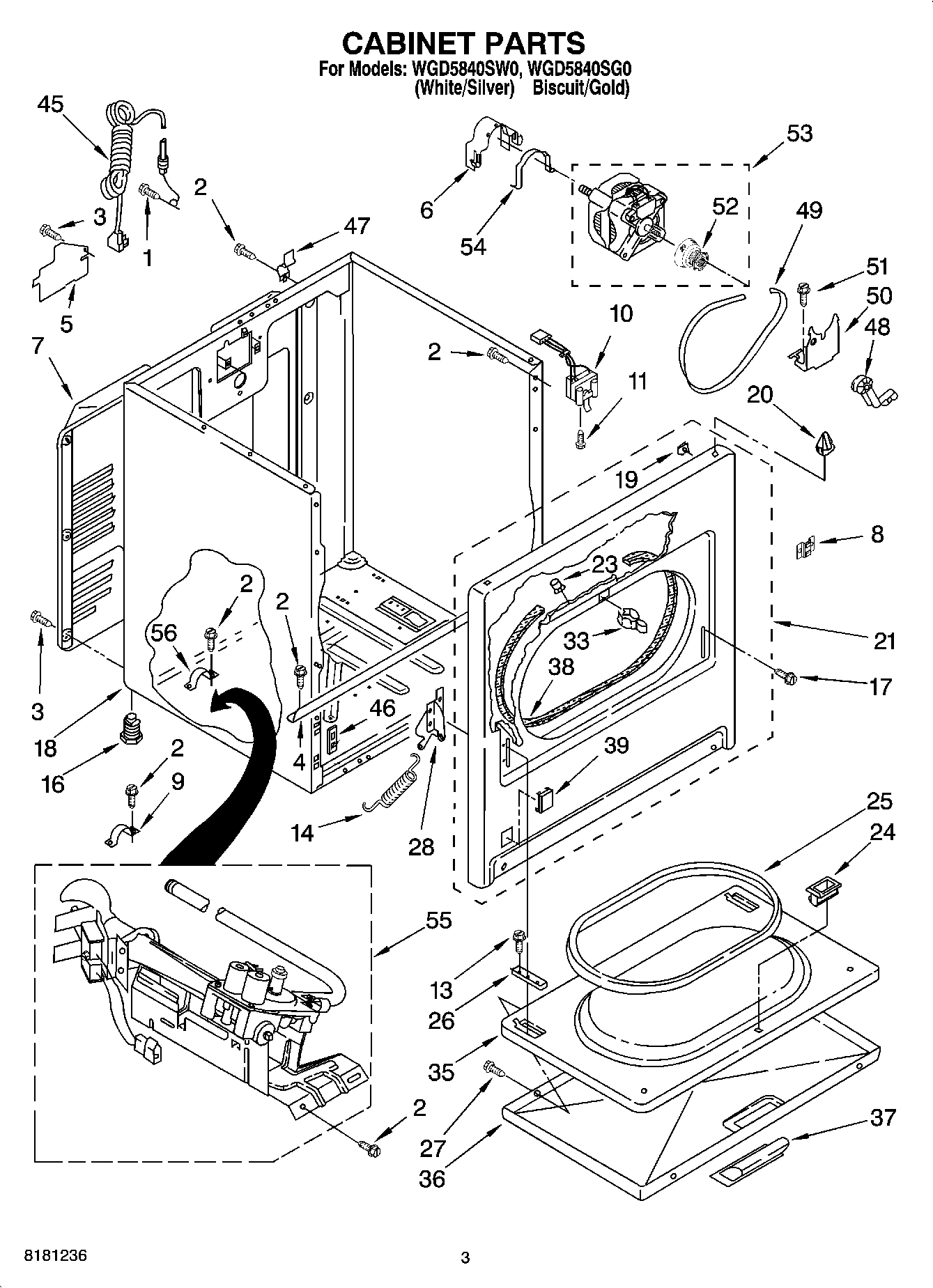

WGD5840SG0 02 – CABINET PARTS

WGD5840SG0 02 – CABINET PARTS

Written by

in

WGD5840SG0 02 – CABINET PARTS

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6WP3404162 Whirlpool Clamp
7280043 Whirlpool Rear Panel
88546676 Whirlpool Clip
9341029 Whirlpool Clamp
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
13WP308685 Whirlpool Microwave Screw
148541401 Whirlpool Door Spring
1649621 Whirlpool Leveling Feet
17Screw, 10-32 x 1/2
18Cabinet (Biscuit)
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front (Biscuit)
21279740 Whirlpool Panel Primary with O/S2
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25W10906683 Whirlpool Door Seal
26W11252547 Whirlpool Clip Assembly
27WP694091 Whirlpool Screw
28WP8066057 Whirlpool Door Hinge
28WP8066056 Whirlpool Door Hinge
33279570 Whirlpool Dryer Door Latch Kit
35WP695737 Whirlpool Door
36Door, Front (Biscuit)
36WP3393549 Whirlpool Door Assembly
37W10877261 Whirlpool Handle Assembly
37Handle, Door (Biscuit)
38W11035878 Whirlpool Bearing and Seal
39Plug, Front Panel (Biscuit)
39Plug, Front Panel (White)
45W11222083 Whirlpool Power Cord
46W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
47WP8066217 Whirlpool Hinge
48WP691366 Whirlpool Dryer Idler Pulley Assembly
49341241 Whirlpool Dryer Drum Belt
50WP348780 Whirlpool Base
513400500 Whirlpool Screw
52WP8066184 Whirlpool Dryer Motor Pulley
53279827 Whirlpool Dryer Drive Motor
54WP660658 Whirlpool Clamp
55W10823508 Whirlpool Gas Burner
