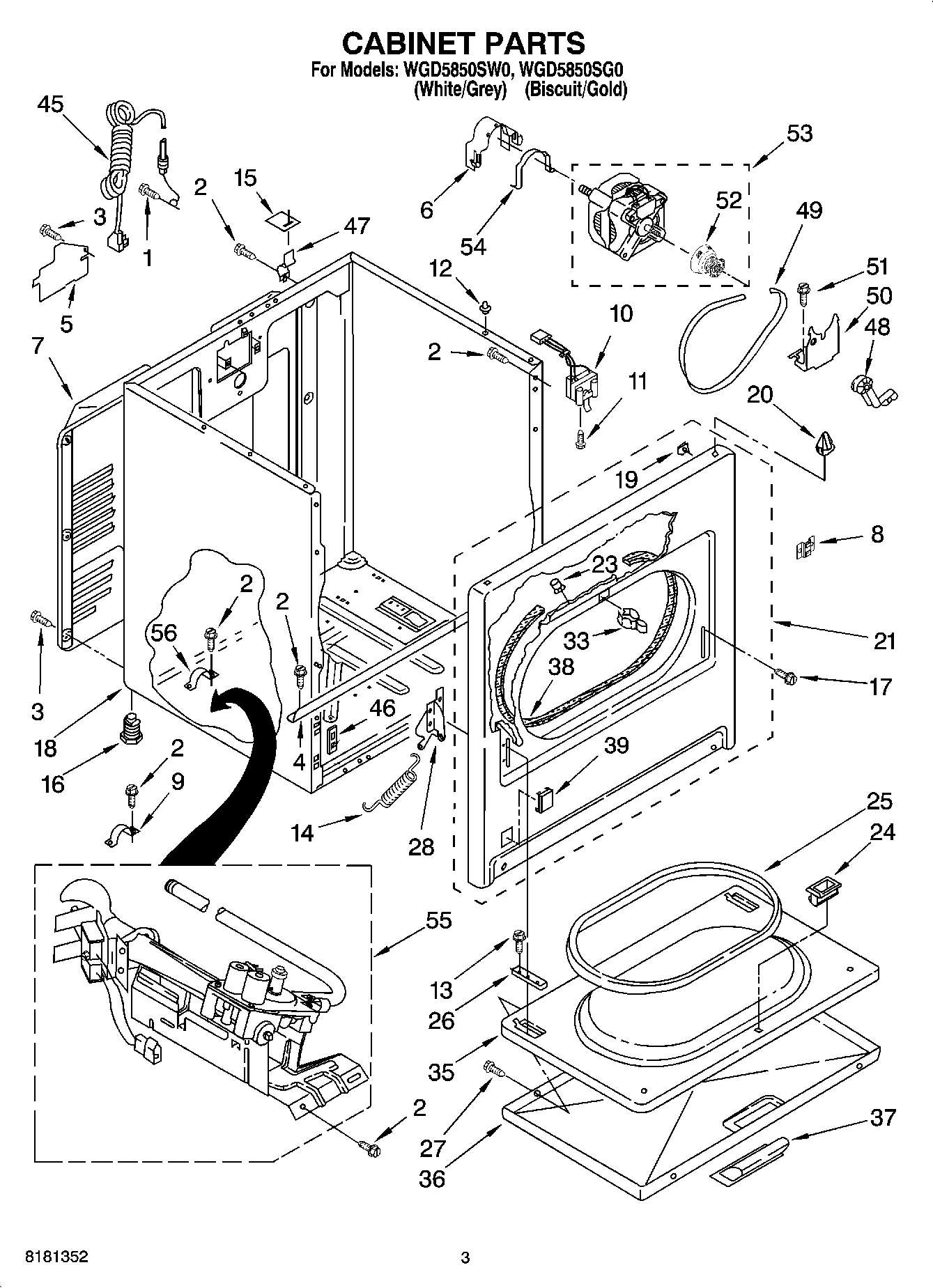

WGD5850SW0 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	WP3404162 Whirlpool Clamp
7	280043 Whirlpool Rear Panel
8	8546676 Whirlpool Clip
9	341029 Whirlpool Clamp
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	Locator, Top
13	WP308685 Whirlpool Microwave Screw
14	8541401 Whirlpool Door Spring
15	18849 Whirlpool Pad
16	49621 Whirlpool Leveling Feet
17	Screw, 10-32 x 1/2
18	Cabinet (Biscuit)
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel, Front (Biscuit)
21	279740 Whirlpool Panel Primary with O/S2
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	W10906683 Whirlpool Door Seal
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	WP8066057 Whirlpool Door Hinge
28	WP8066056 Whirlpool Door Hinge
33	279570 Whirlpool Dryer Door Latch Kit
35	WP695737 Whirlpool Door
36	Door, Front (Biscuit)
36	WP3393549 Whirlpool Door Assembly
37	W10877261 Whirlpool Handle Assembly
37	Handle, Door (Biscuit)
38	W11035878 Whirlpool Bearing and Seal
39	Plug, Front Panel (Biscuit)
39	Plug, Front Panel (White)
45	W11222083 Whirlpool Power Cord
46	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
47	WP8066217 Whirlpool Hinge
48	WP691366 Whirlpool Dryer Idler Pulley Assembly
49	341241 Whirlpool Dryer Drum Belt
50	WP348780 Whirlpool Base
51	3400500 Whirlpool Screw
52	WP8066184 Whirlpool Dryer Motor Pulley
53	279827 Whirlpool Dryer Drive Motor
54	WP660658 Whirlpool Clamp
55	W10823508 Whirlpool Gas Burner
