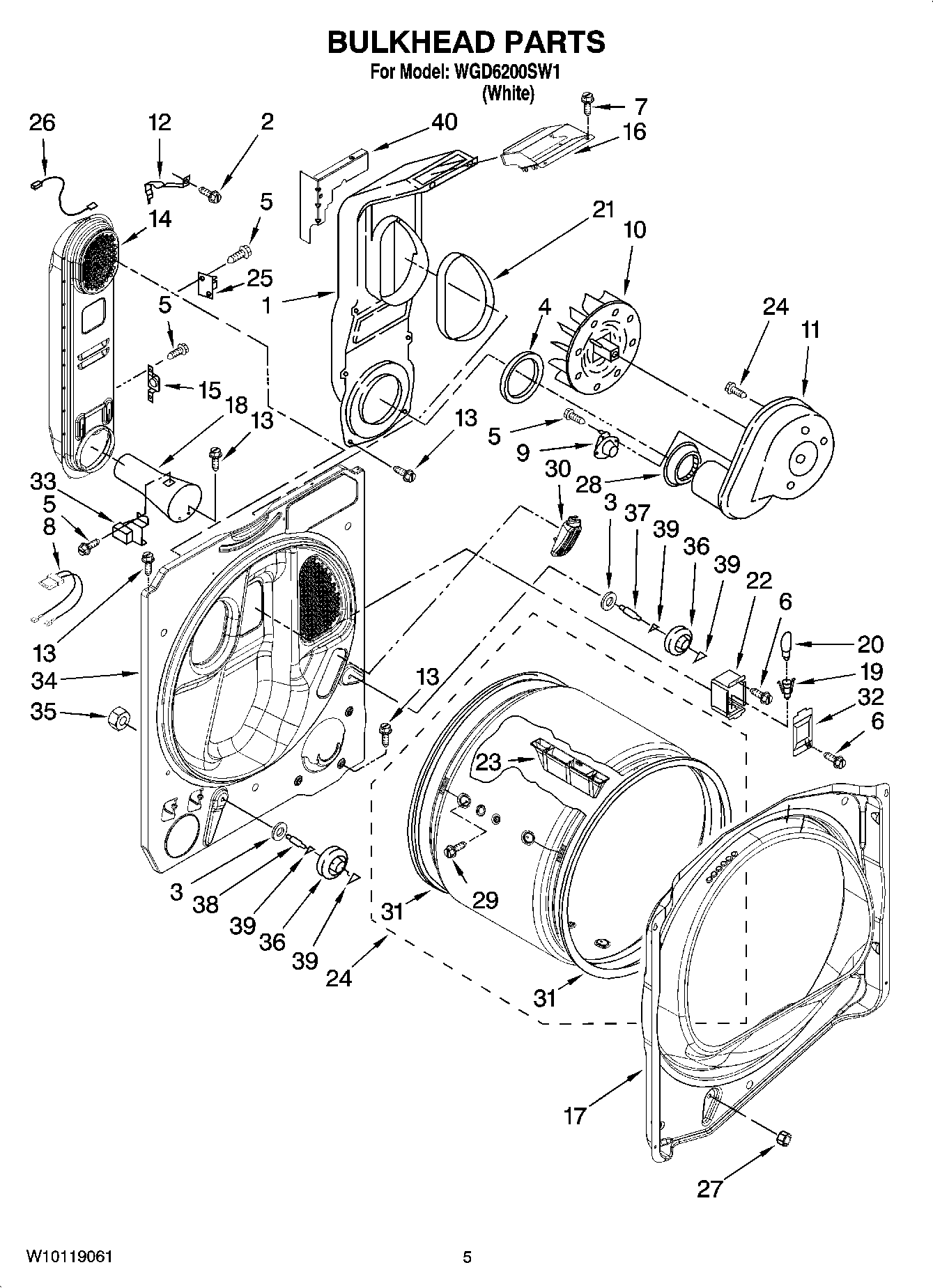

WGD6200SW1 03 – BULKHEAD PARTS

Products

Position	Product
1	Lint Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	W11236646 Whirlpool Washer Assembly
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	WP488729 Whirlpool Refrigerator Door Screw
7	WP3196557 Whirlpool Screw
8	8539889 Whirlpool Wire Harness
9	WP8577274 Whirlpool Dryer Thermistor
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	Clip-Heater Box
13	SCREW
14	Box, Heater
16	Collar, Lint Chute
17	Bulkhead, Front
18	WP8066049 Whirlpool Funnel Assembly
19	W11700522 Whirlpool Socket
20	WP22002263 Whirlpool Dryer 10W Light Bulb
21	Seal
22	3977373 Whirlpool Bracket
23	8565688 Whirlpool Drum Baffle
24	W10549615 Whirlpool Drum Assembly
25	W11050897 Whirlpool Dryer High Limit Thermostat
26	WP3401707 Whirlpool Wire Assembly
27	WPW10080210 Whirlpool Nut
28	Shield, Exhaust
29	WPW10109200 Whirlpool Screw
30	Assembly, Sensor
31	SEAL-DOOR
32	W11226088 Whirlpool Lens Assembly
33	WP338906 Whirlpool Dryer Gas Sensor
34	Bulkhead, Rear
35	WPW10080190 Whirlpool Nut
36	WPW10314173 Whirlpool Dryer Drum Support Wheel
37	SHAFT
38	SHAFT
39	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
40	Bracket, Lint Chute
