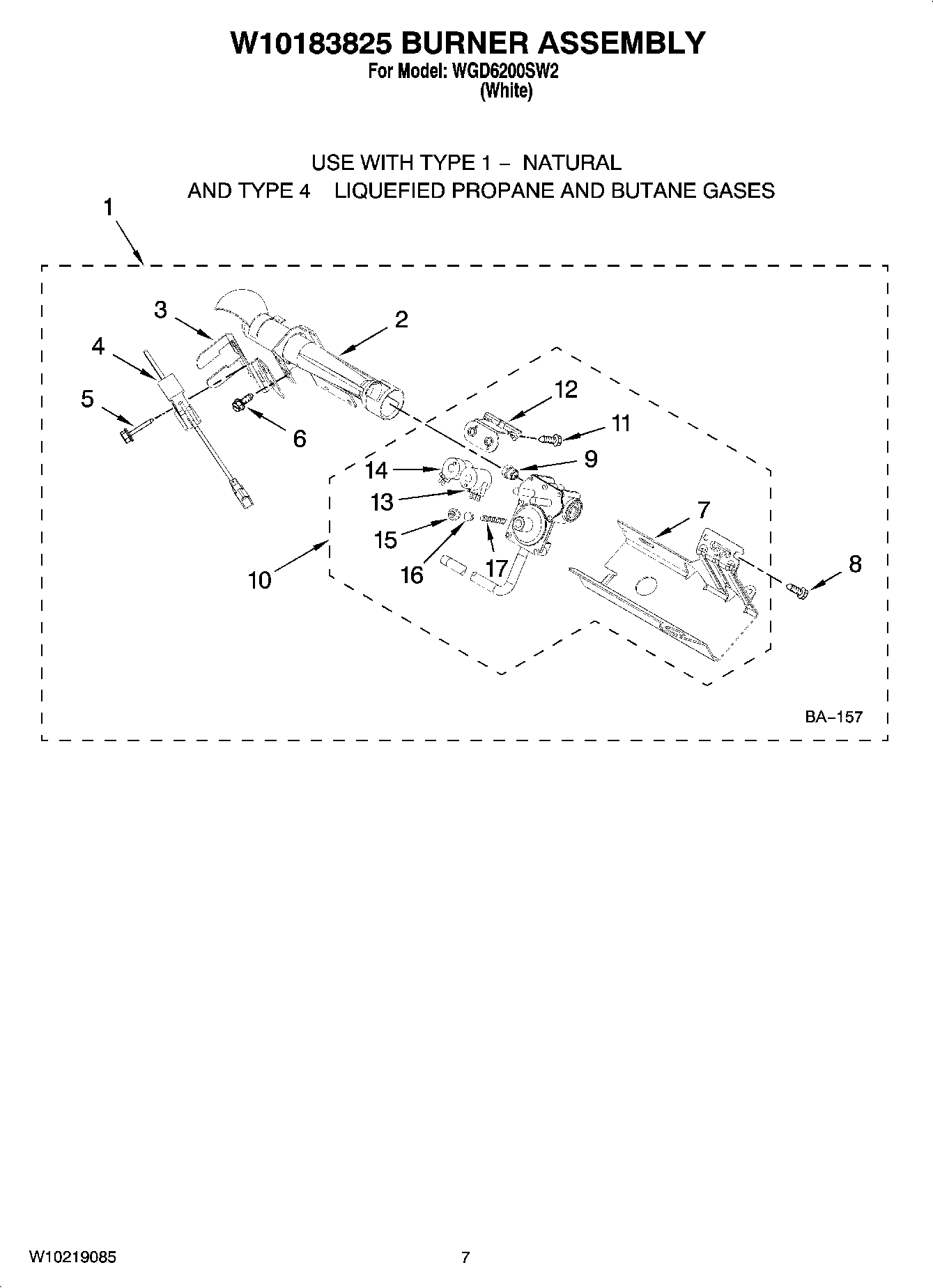

WGD6200SW2 04 – W10183825 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

WGD6200SW2 04 – W10183825 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

WGD6200SW2 04 – W10183825 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
ACCESSORY PARTS
49572A Whirlpool Dryer Propane Gas Conversion Kit
W11224254 Whirlpool Test Kit
KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
WPL W10071550
4392065 Whirlpool Dryer Maintenance Kit
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
350938 Whirlpool Spray Gun
Following Parts Not Illustrated
1Bur
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6WP3390631 Whirlpool Screw
7W10183823 Whirlpool Bracket
8WP693995 Whirlpool Screw
9WP234826 Whirlpool Gas Orifice
9WP234868 Whirlpool Gas Orifice
9WP229742 Whirlpool Gas Orifice
10Valve, Gas 60 Hz. (Complete) (Includes Pipe & Illus. 7).
11694421 Whirlpool Screw Assembly
12Bracket, Coil
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
