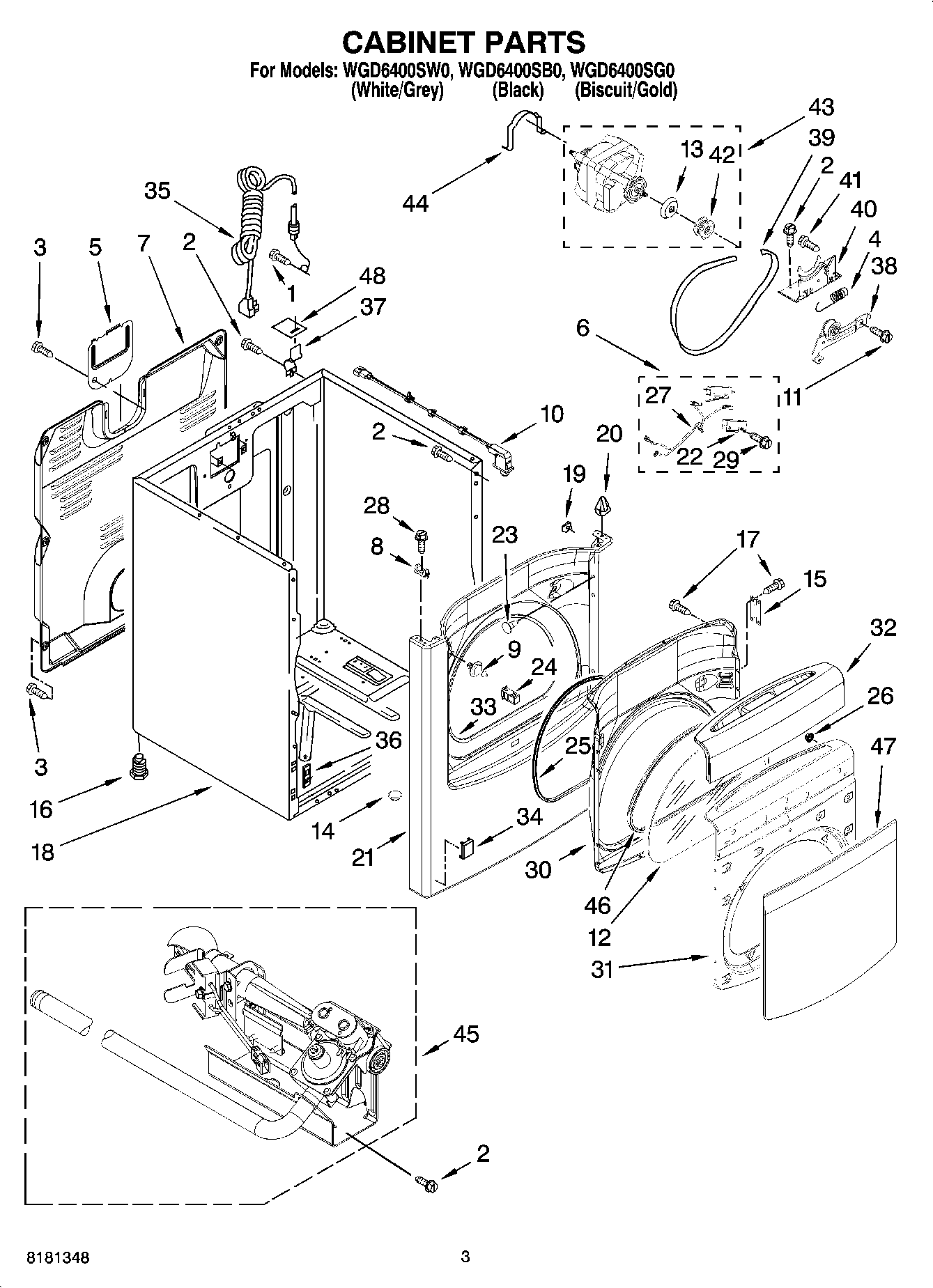

WGD6400SB0 02 – CABINET PARTS

WGD6400SB0 02 – CABINET PARTS

Written by

in

WGD6400SB0 02 – CABINET PARTS

Products

PositionProduct
1W10850756 Whirlpool Screw
2WP3390631 Whirlpool Screw
3WP693995 Whirlpool Screw
4WPW10446781 Whirlpool Spring
5W11736322 Whirlpool Cover Assembly
6WP8566208 Whirlpool Switch Plug
7Panel, Rear
8WP8568303 Whirlpool Lock Assembly
9W10295405 Whirlpool Strike
10W10702726 Whirlpool Door Switch
11WP3389420 Whirlpool Screw
12Glass, Inner Door
13Restrainer, Belt
148578560 Whirlpool Plug
15Hinge, Assembly (Black)
15WP8565018 Whirlpool Hinge
15Hinge, Assembly (Biscuit)
1649621 Whirlpool Leveling Feet
17WP488627 Whirlpool Refrigerator Screw
18CABINET
18Cabinet (Biscuit)
18Cabinet (Black)
19Clip, Ground (2)
20WP8576625 Whirlpool Lock
21Panel, Front (Includes Illus. 34) (Biscuit)
21Panel, Front (Includes Illus. 34) (Black)
21Panel, Front (Includes Illus. 34) (White)
228564011 Whirlpool Bracket
23Plug-Hole (Black)
23Plug, Hinge Hole (4) (Biscuit)
23WP3404413 Whirlpool Plug
24WPW10111905 Whirlpool Dryer Door Catch
25W10239307 Whirlpool Door Seal
26WP308499 Whirlpool Nut
28Screw, 10-16 x 3/64
29Belt-Switch Jumper
30WPL 8575052
30Door Inner
31WPL 8575025
31WPL 8575024
31Door Outer (White)
32WPL 8573848
32WPL W10050100
32Door Handle (White)
33W10044490 Whirlpool Seal Assembly
34Plug, Front
348573008 Whirlpool Plug
34W10811916 Whirlpool Plug
35W11222083 Whirlpool Power Cord
36W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
37WP8066217 Whirlpool Hinge
388547174V Whirlpool Dryer Idler Pulley
39WP8547168 Whirlpool Belt
40WP8547166 Whirlpool Base Assembly
41W10002600 Whirlpool Screw
42WP8066184 Whirlpool Dryer Motor Pulley
43WPW10463866 Whirlpool Drive Motor
44WP660658 Whirlpool Clamp
45Burner Assembly 60 Hz. (Type 1) (White Rodgers)
46Gasket, Inner Door
47Window, Outer Door
47Window, Outer Door (Black)
47Window, Outer Door (Biscuit)
4818849 Whirlpool Pad
