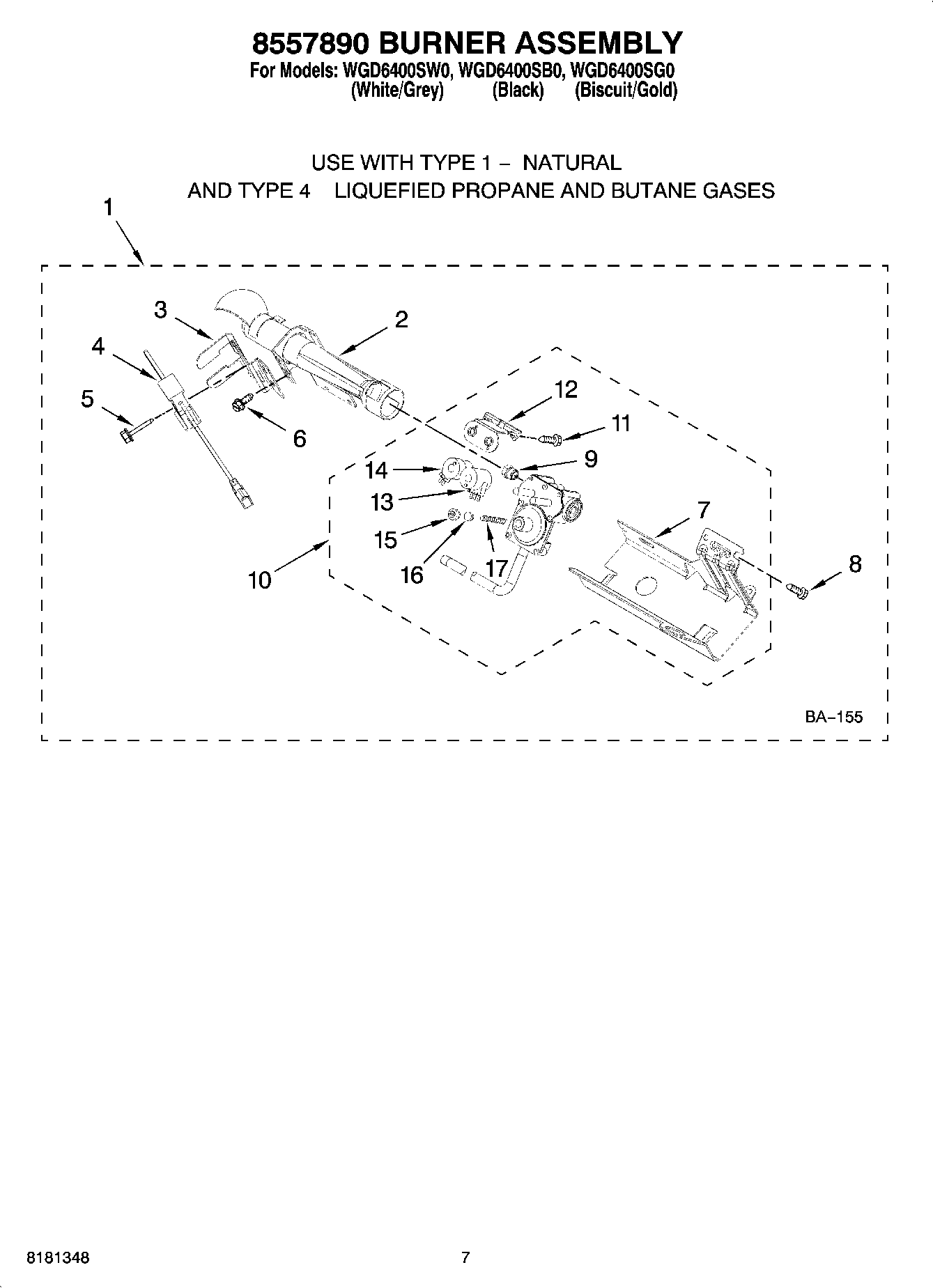

WGD6400SG0 04 – 8557890 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	4392901 Whirlpool Biscuit Spray Paint
	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
	W11224254 Whirlpool Test Kit
	4392065 Whirlpool Dryer Maintenance Kit
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	4392899 Whirlpool Biscuit Touch-Up Paint
	WPL W10071550
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint
	ACCESSORY PARTS
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
1	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	WP3390631 Whirlpool Screw
7	Base, Burner
8	WP693995 Whirlpool Screw
9	WP234826 Whirlpool Gas Orifice
9	WP234868 Whirlpool Gas Orifice
9	WP229742 Whirlpool Gas Orifice
10	Valve, Gas 60 Hz. (Complete) (Includes Pipe & Illus. 7).
11	694421 Whirlpool Screw Assembly
12	Bracket, Coil
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	49572A Whirlpool Dryer Propane Gas Conversion Kit
17	WP694422 Whirlpool Spring
17	Following Parts Not Illustrated
