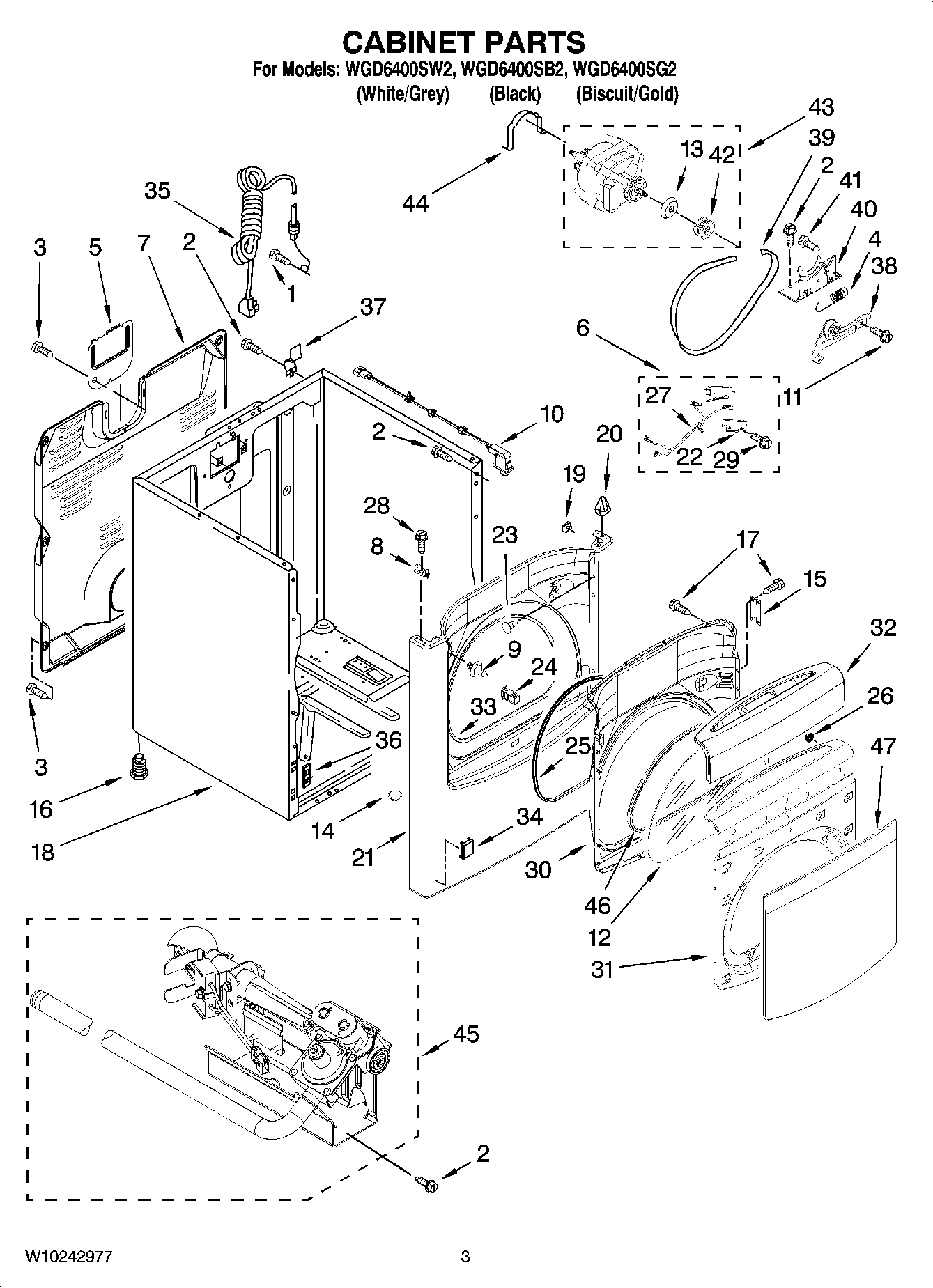

WGD6400SW2 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	WP3390631 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	WPW10446781 Whirlpool Spring
5	W11736322 Whirlpool Cover Assembly
6	WP8566208 Whirlpool Switch Plug
7	Panel, Rear
8	WP8568303 Whirlpool Lock Assembly
9	W10295405 Whirlpool Strike
10	W10702726 Whirlpool Door Switch
11	WP3389420 Whirlpool Screw
12	Glass, Inner Door
13	Restrainer, Belt
14	8578560 Whirlpool Plug
15	Hinge, Assembly (Biscuit)
15	WP8565018 Whirlpool Hinge
15	Hinge, Assembly (Black)
16	49621 Whirlpool Leveling Feet
17	WP488627 Whirlpool Refrigerator Screw
18	Cabinet (Biscuit)
18	Cabinet (Black)
18	W10223154 Whirlpool Cabinet Assembly
19	Clip, Ground (2)
20	WP8576625 Whirlpool Lock
21	Panel, Front (Includes Illus. 34) (Black)
21	Panel, Front (Includes Illus. 34) (White)
21	Panel, Front (Includes Illus. 34) (Biscuit)
22	8564011 Whirlpool Bracket
23	Plug-Hole (Black)
23	WP3404413 Whirlpool Plug
23	Plug, Hinge Hole (4) (Biscuit)
24	WPW10111905 Whirlpool Dryer Door Catch
25	W10239307 Whirlpool Door Seal
26	WP308499 Whirlpool Nut
28	Screw, 10-16 x 3/64
29	Belt-Switch Jumper
30	WPL 8575052
30	Door Inner
31	WPL W10116927
31	WPL W10116926
31	Door, Outer
32	Door Handle
32	WPL W10111247
32	WPL W10111248
33	W10044490 Whirlpool Seal Assembly
34	W10811916 Whirlpool Plug
34	Plug, Front
34	8573008 Whirlpool Plug
35	W11222083 Whirlpool Power Cord
36	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
37	WP8066217 Whirlpool Hinge
38	8547174V Whirlpool Dryer Idler Pulley
39	WP8547168 Whirlpool Belt
40	WP8547166 Whirlpool Base Assembly
41	W10002600 Whirlpool Screw
42	WP8066184 Whirlpool Dryer Motor Pulley
43	WPW10463866 Whirlpool Drive Motor
44	CLAMP
45	Bur
46	Seal-Window
47	Window, Outer Door (Biscuit)
47	Window, Outer Door (Black)
47	WPL W10116398
