WGD6600VU0 04 – 8557890 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

WGD6600VU0 04 – 8557890 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

WGD6600VU0 04 – 8557890 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
49572A Whirlpool Dryer Propane Gas Conversion Kit
W11224254 Whirlpool Test Kit
KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
8544761A Whirlpool Exhaust Extension
WP16123 Whirlpool Washer
WP76314 Whirlpool Fill Hose
W10044609A Whirlpool Steam Dryer Hose Installation Kit
WPL 8212605
49586 Whirlpool Mixer
WPL W10044603
49611 Whirlpool Exhaust Kit
WPL W10071550
799344 Whirlpool Refrigerator Paint
Following Parts Not Illustrated
ACCESSORY PARTS
350938 Whirlpool Spray Gun
Miscellaneous Parts Bag
350930 Whirlpool White Spray Paint
4392065 Whirlpool Dryer Maintenance Kit

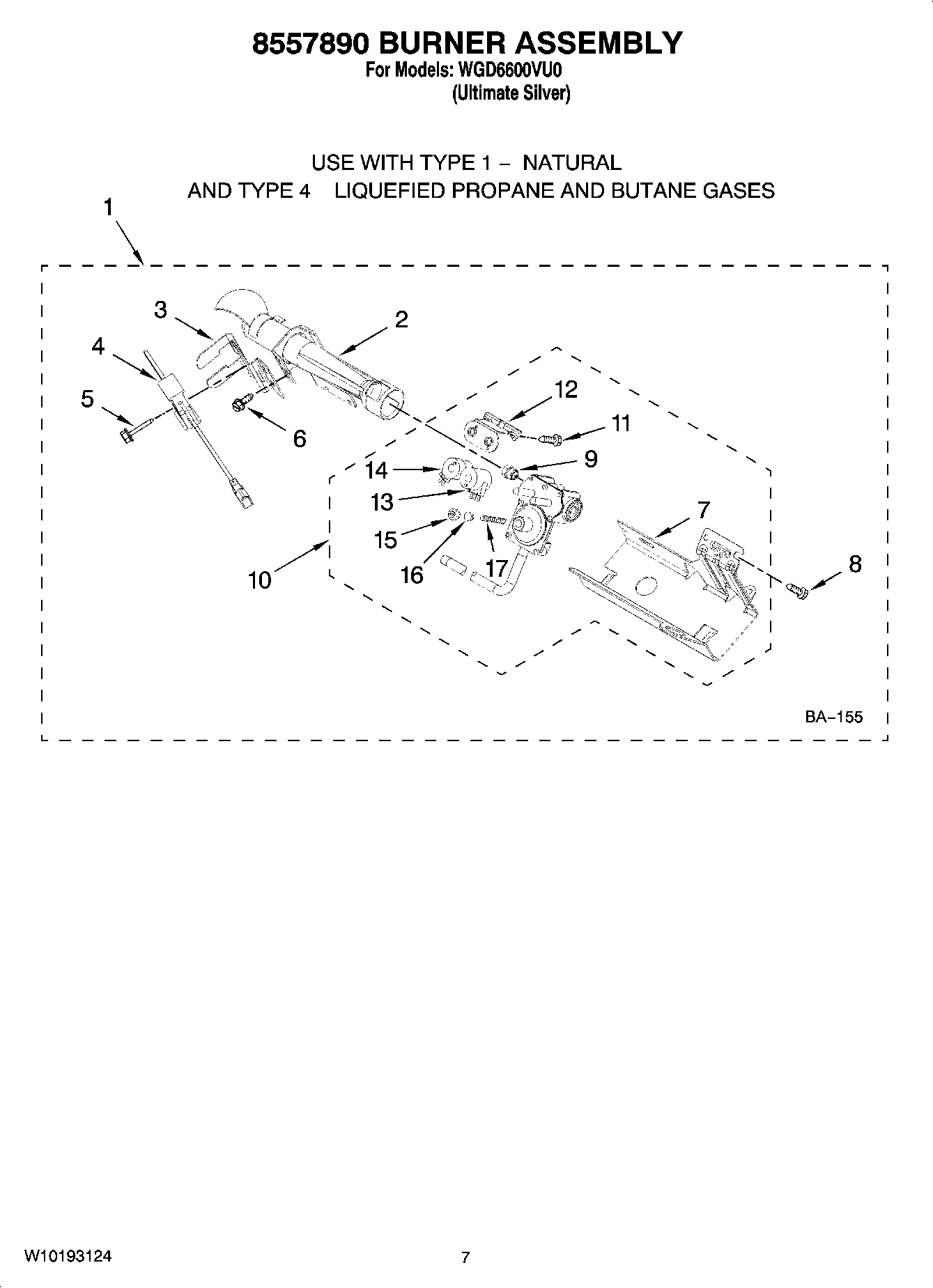

1Burner Assembly 60 Hz. (Type 1) (White Rodgers)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6WP3390631 Whirlpool Screw
7Base, Burner
8WP693995 Whirlpool Screw
9WP234868 Whirlpool Gas Orifice
9WP229742 Whirlpool Gas Orifice
9WP234826 Whirlpool Gas Orifice
10Valve, Gas 60 Hz. (Complete) (Includes Pipe & Illus. 7).
11694421 Whirlpool Screw Assembly
12Bracket, Coil
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
