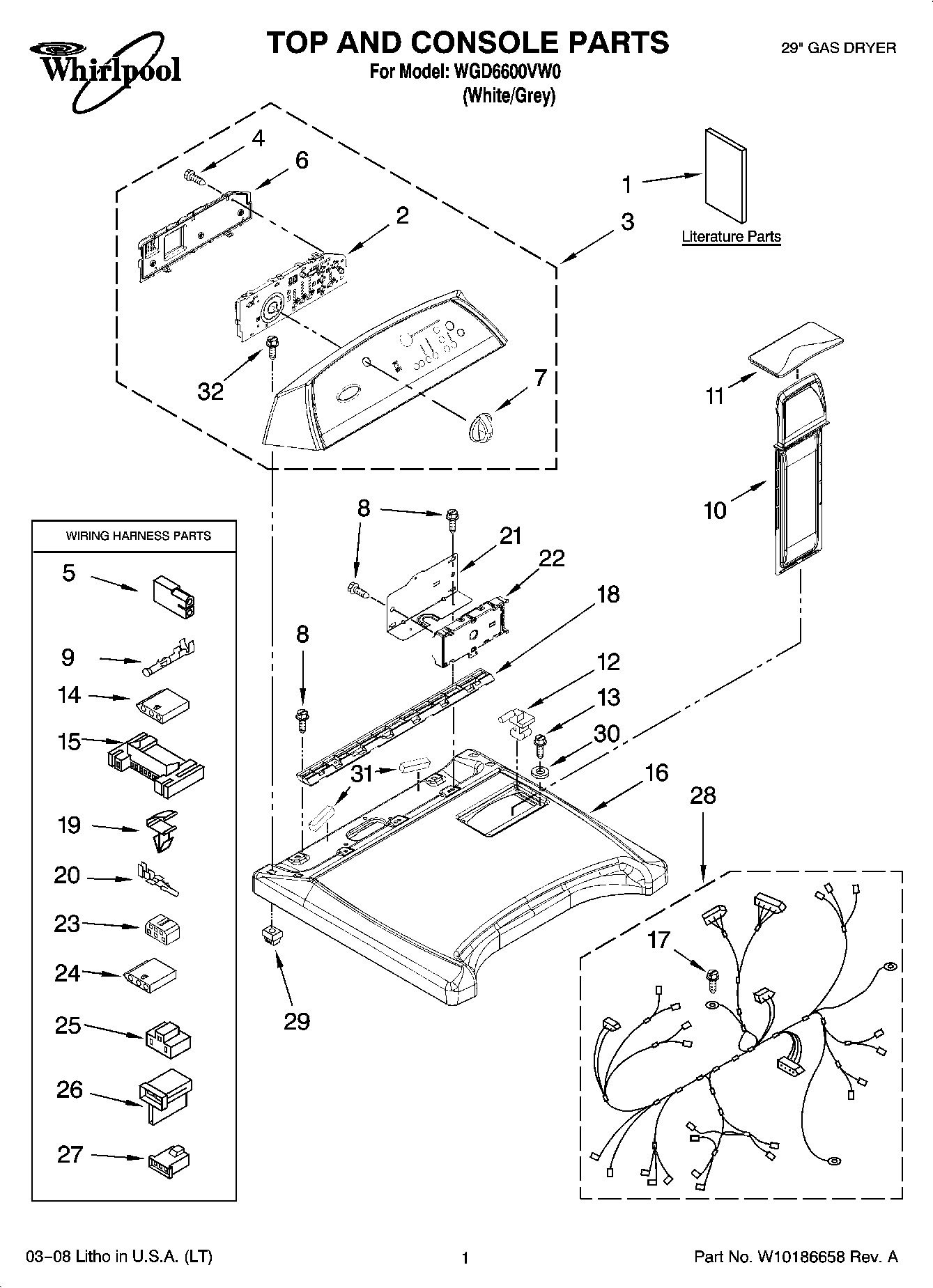

WGD6600VW0 01 – TOP AND CONSOLE PARTS

WGD6600VW0 01 – TOP AND CONSOLE PARTS

Written by

in

WGD6600VW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Tip Sheet Performance
1Use & Care Guide
1Tech Sheet
1Guide, Quick Start
1WPL 677818
1Sheet, Tip Steam Dry
2Assembly, User Interface
3Panel, Console
4WP4449745 Whirlpool Screw
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
68564265 Whirlpool Cover
7WP8574957 Whirlpool Knob
8WP33001882 Whirlpool Screw
9WP94614 Whirlpool Terminal
10WP8572270 Whirlpool Dryer Lint Trap Filter
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13WP3196557 Whirlpool Screw
143936144 Whirlpool Connector
153395683 Whirlpool Connector
16Top
17SCREW
18Bracket, Console
19WP3394427 Whirlpool Clip
20WP596797 Whirlpool Terminal
21Bracket, Machine Controller
22Control, Electronic
23Block, Disconnect
24353424 Whirlpool Connector
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
28Harness, Wiring
29W10112673 Whirlpool Clip
30Washer
31Seal-Foam Console
32W10131402 Whirlpool Screw
