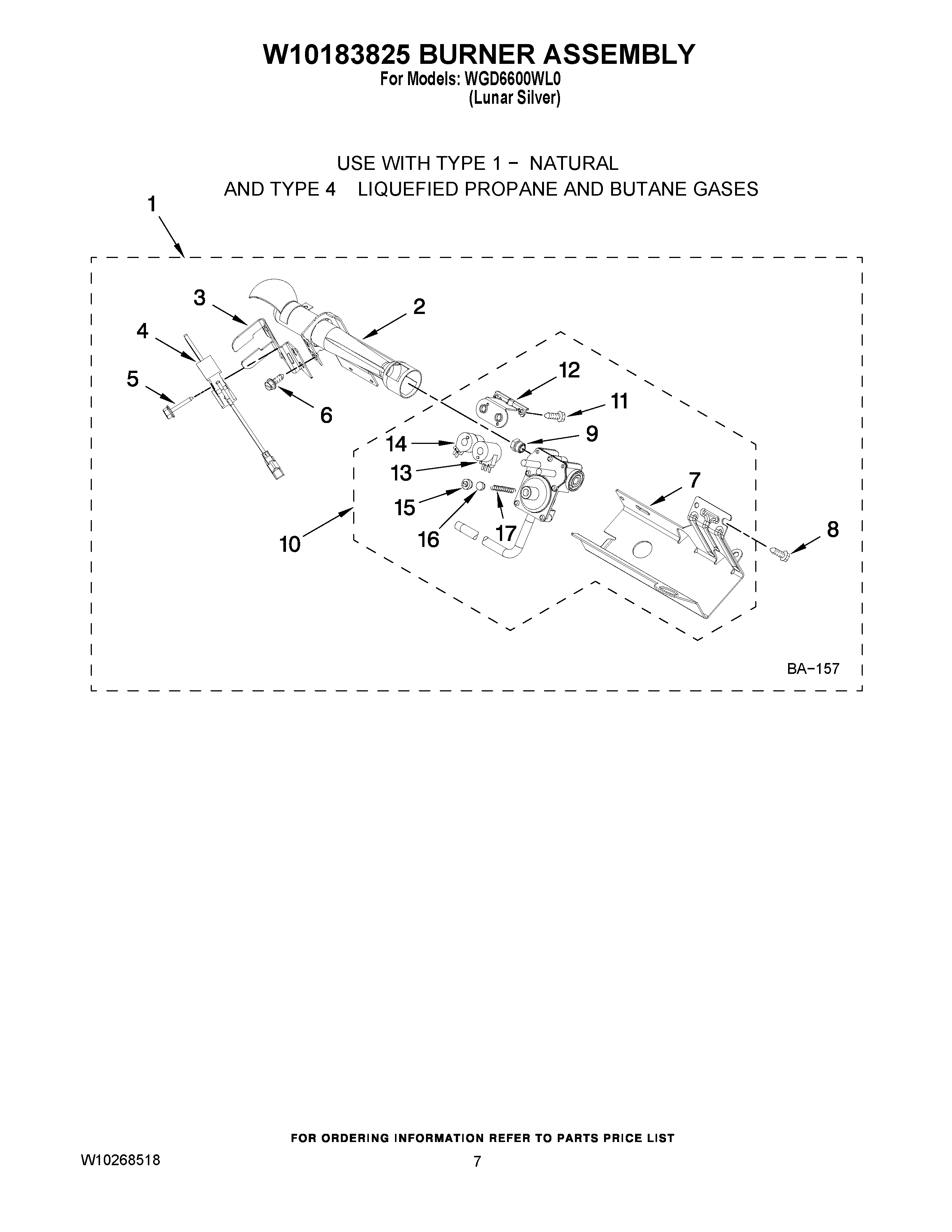

WGD6600WL0 04 – W10183825 BURNER ASSEMBLY

WGD6600WL0 04 – W10183825 BURNER ASSEMBLY

Written by

in

WGD6600WL0 04 – W10183825 BURNER ASSEMBLY

Products

PositionProduct
NI49572A Whirlpool Dryer Propane Gas Conversion Kit
1Bur
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6WP3390631 Whirlpool Screw
7W10183823 Whirlpool Bracket
8WP693995 Whirlpool Screw
9WP234868 Whirlpool Gas Orifice
9WP234826 Whirlpool Gas Orifice
9WP229742 Whirlpool Gas Orifice
10Valve, Gas 60 Hz. (Complete) (Includes Pipe & Illus. 7).
11694421 Whirlpool Screw Assembly
12Bracket, Coil
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
