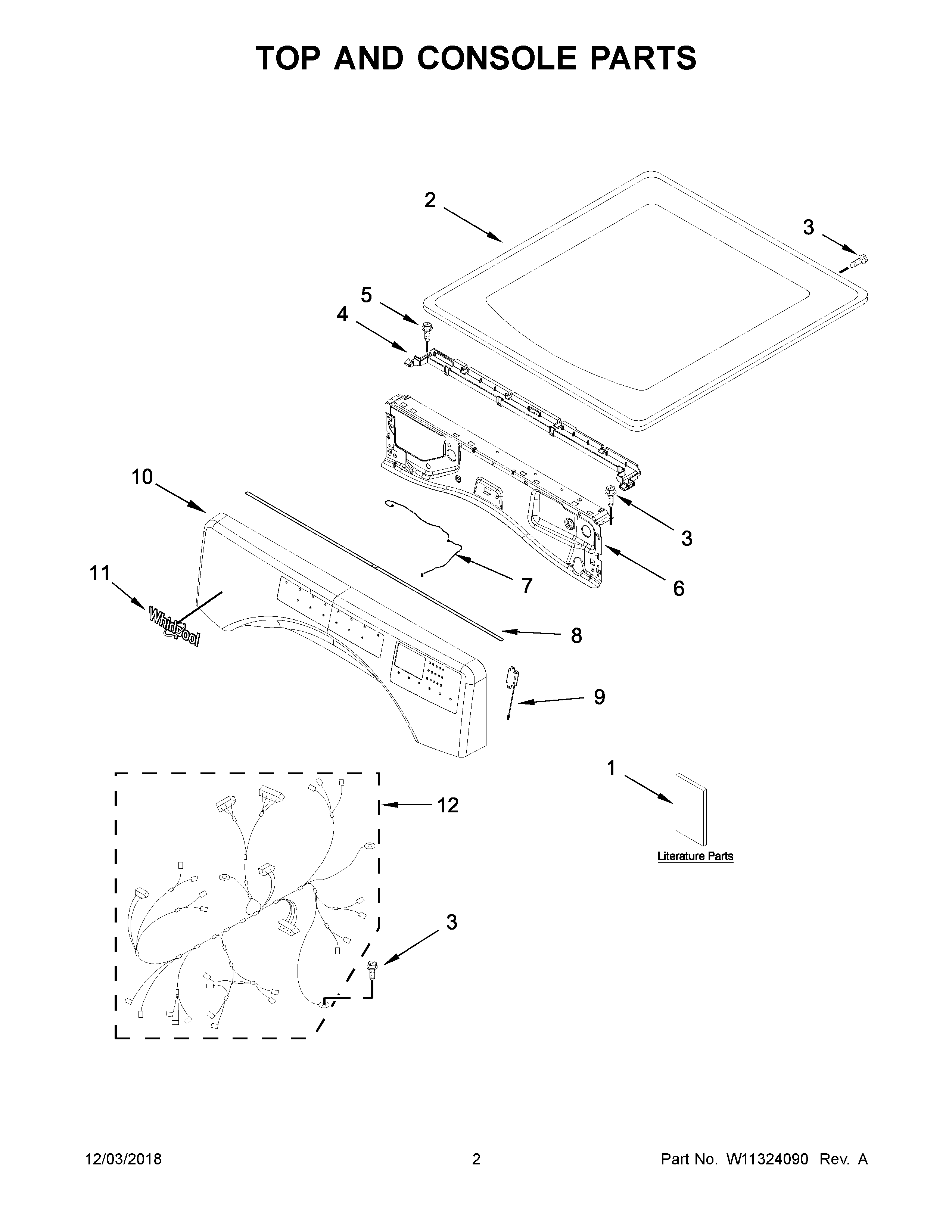

WGD6620HC0 02 – TOP AND CONSOLE PARTS

WGD6620HC0 02 – TOP AND CONSOLE PARTS

Written by

in

WGD6620HC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AINSTALLATION INSTRUCTIONS
1DQUICK START GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
1CWIRING DIAGRAM
2WPW10208383 Whirlpool Top Panel
2AWPW10460919 Whirlpool Top
3WP693995 Whirlpool Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11459337 Whirlpool Wire Harness
8SEAL
9W11123146 Whirlpool Speaker
10W11370450 Whirlpool Console + Core
10AW11351728 Whirlpool Control Board + Core
11W11223753 Whirlpool Refrigerator Nameplate
12W11157861 Whirlpool Wire Harness
