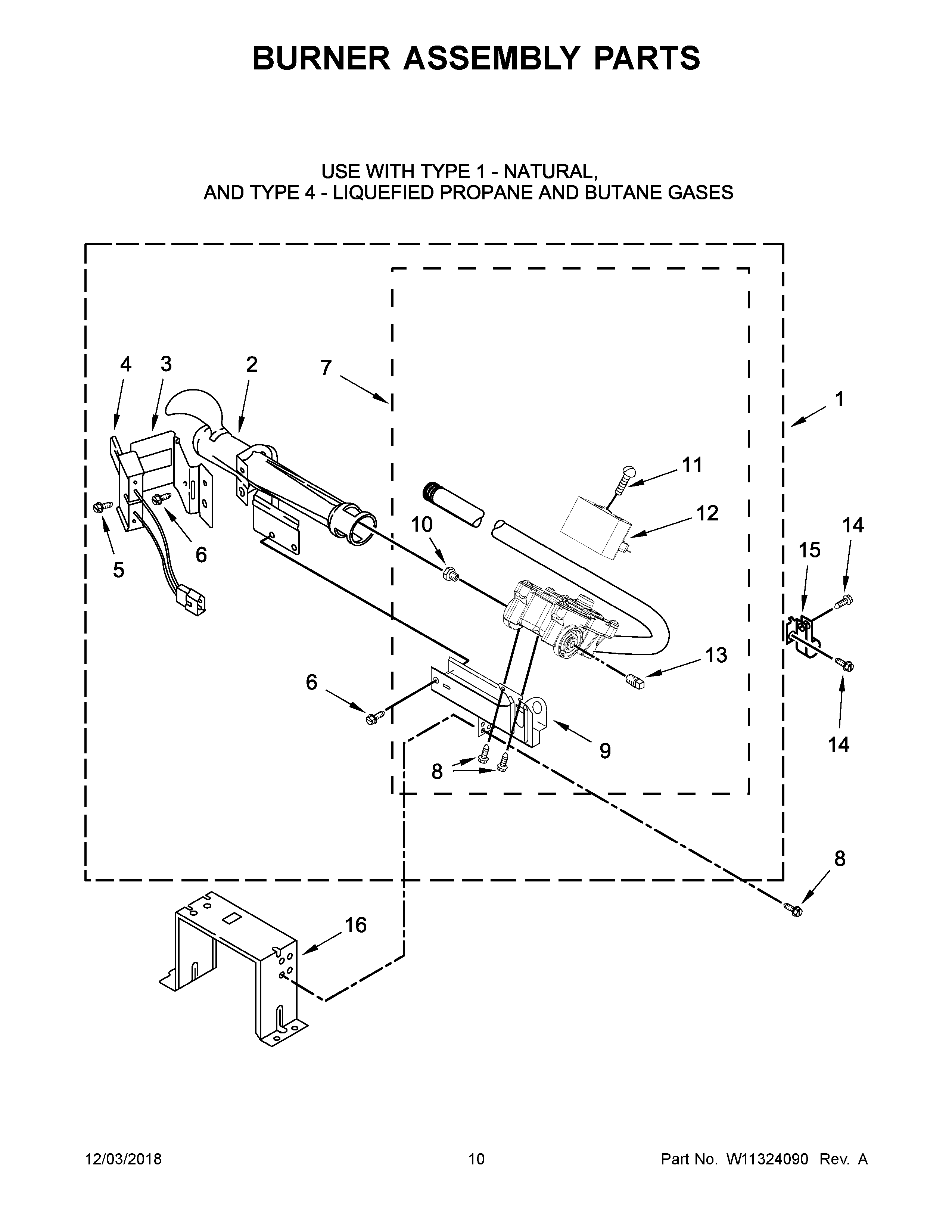

WGD6620HW0 06 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	W11581317 Whirlpool LP Gas Connector
NI	CABINET (NOT A SERVICEABLE PART)
1	W11309727 Whirlpool Gas Burner
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	W11331937 Whirlpool Gas Valve
8	WP693995 Whirlpool Screw
9	Base, Burner
10B	WP229742 Whirlpool Gas Orifice
10A	Orifice, Burner (Type 4 (Butane))
10	WP15418 Whirlpool Gas Orifice
11	326049536 Whirlpool Screw
12	WPW10328463 Whirlpool Valve Coil
13	W10295523 Whirlpool Plug
14	WP488729 Whirlpool Refrigerator Door Screw
15	3387561 Whirlpool Clamp
16	Bracket, Support
