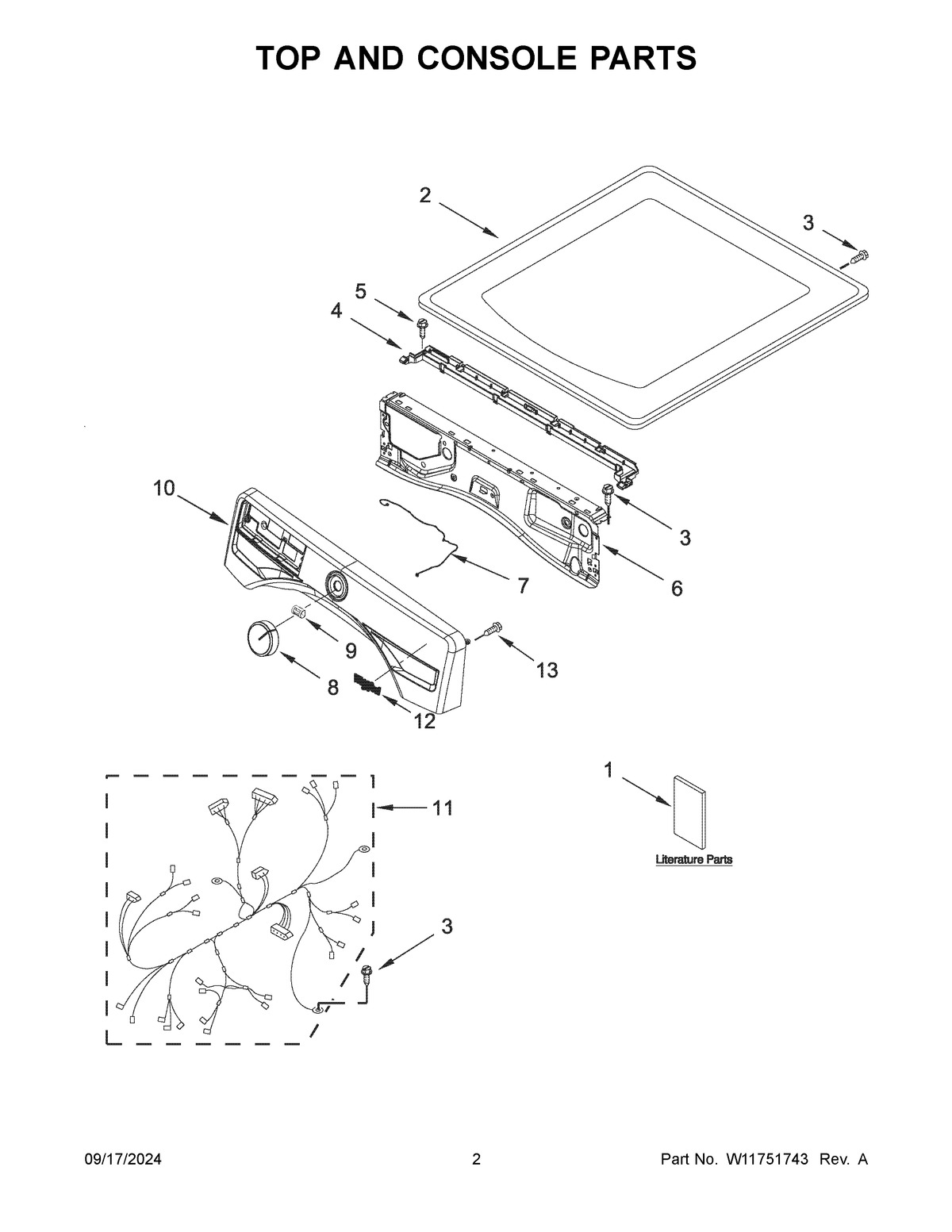

WGD6720RR0 02 – TOP AND CONSOLE PARTS
Written by
in
WGD6720RR0 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1
OWNERS MANUAL
1B
QUICK START GUIDE
1A
TECH SHEET
2
TOP (RADIANT SILVER)
3
WP693995 Whirlpool Screw
4
W11310027 Whirlpool Bracket
5
W11686675 Whirlpool Screw
6
W11480682 Whirlpool Bracket
7
HARNESS, ACU TO HMI
8
ASSEMBLY, KNOB
9
WP8536939 Whirlpool Spring Clip
10
CONSOLE + CORE
11
W11157861 Whirlpool Wire Harness
12
W11223753 Whirlpool Refrigerator Nameplate
13
WP9740848 Whirlpool Dishwasher Screw
←
