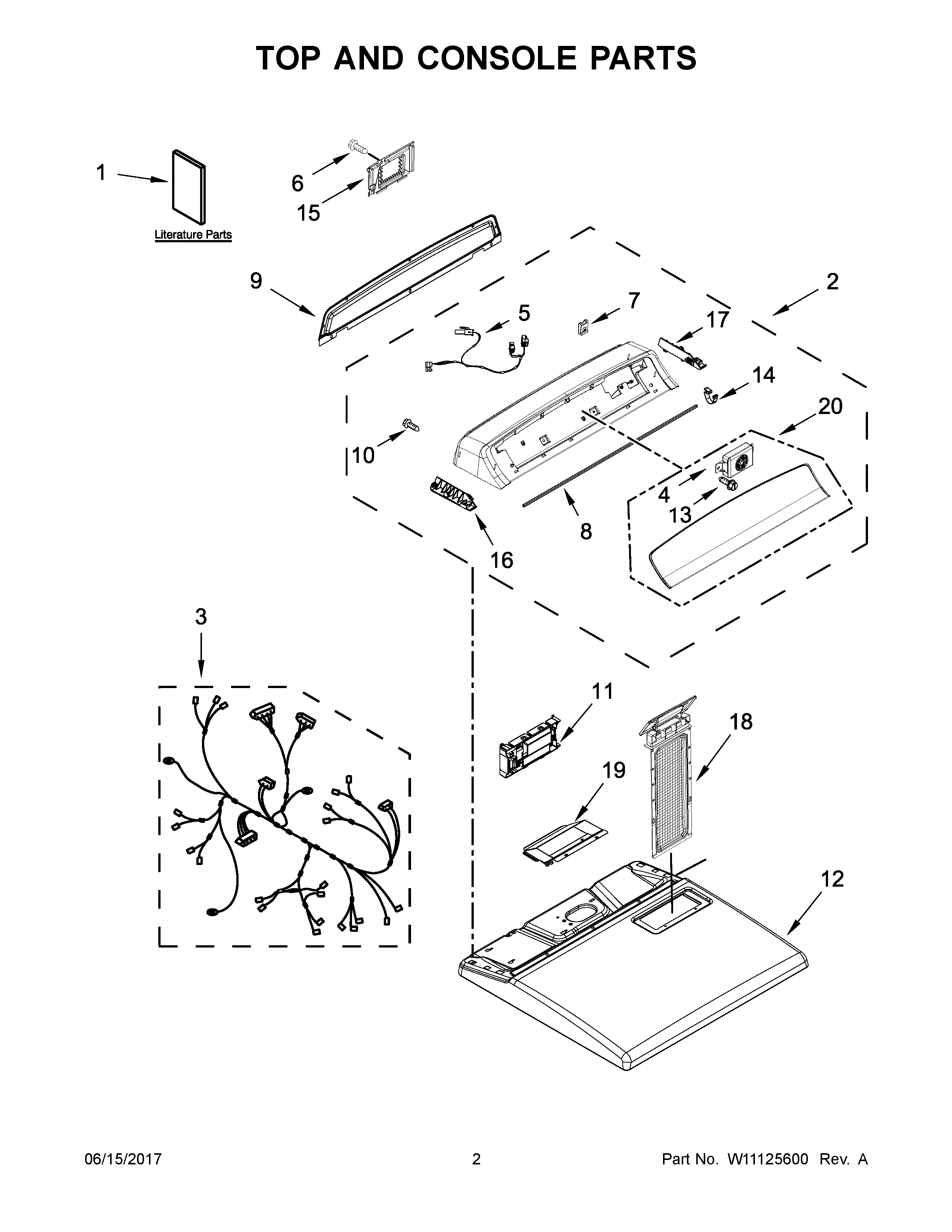

WGD7000DW3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AGUIDE, USE AND CARE
1CWIRING DIAGRAM
1BTECH SHEET
1DQUICKSTART GUIDE
2W11050696 Whirlpool Console
3W10865053 Whirlpool Wire Harness
4W11123146 Whirlpool Speaker
5W10634454 Whirlpool Wire Harness User Interface
6WP90767 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10775189 Whirlpool Rear Panel
10WP9740848 Whirlpool Dishwasher Screw
11W11126815-includeCORE Whirlpool W11126815 Refrigerator Electronic Control Board + Core
12W11222514 Whirlpool Top Assembly
13W11631670 Whirlpool Screw
14WP8312709 Whirlpool Endcap Clip
15W10819767 Whirlpool Cover
16W10631630 Whirlpool Bracket Assembly
17W10631629 Whirlpool Bracket
18SCREEN
19W10662472 Whirlpool Cover Assembly
20W11130235 Whirlpool Overlay
