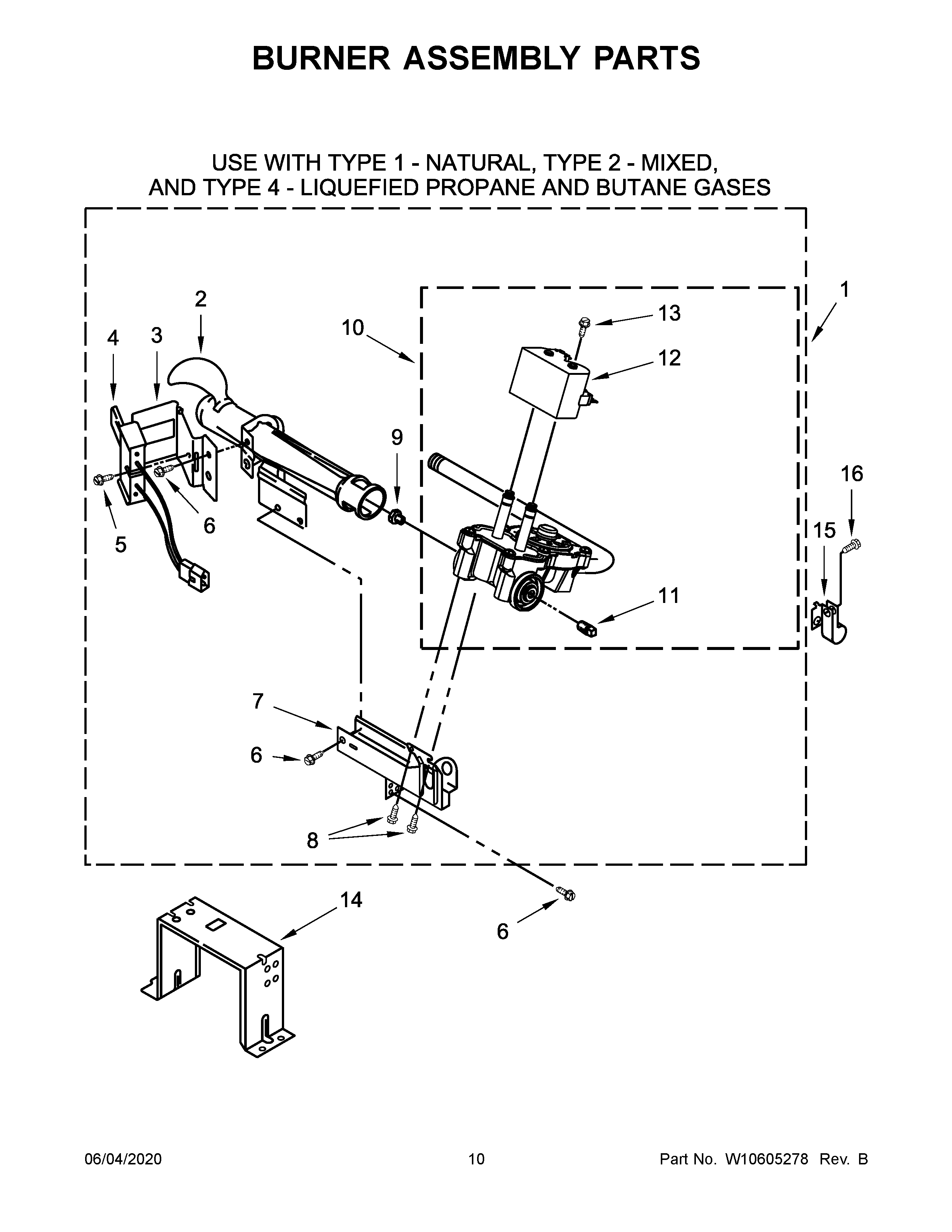

WGD70HEBW0 06 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	W11581317 Whirlpool LP Gas Connector
NI	CABINET (NOT A SERVICEABLE PART)
1	280119 Whirlpool Gas Burner
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	WP15418 Whirlpool Gas Orifice
10	W10622154 Whirlpool Gas Valve
11	W10295523 Whirlpool Plug
12	WPW10328463 Whirlpool Valve Coil
13	326049536 Whirlpool Screw
14	Bracket, Support
15	3978776 Whirlpool Bracket
16	WP488729 Whirlpool Refrigerator Door Screw
