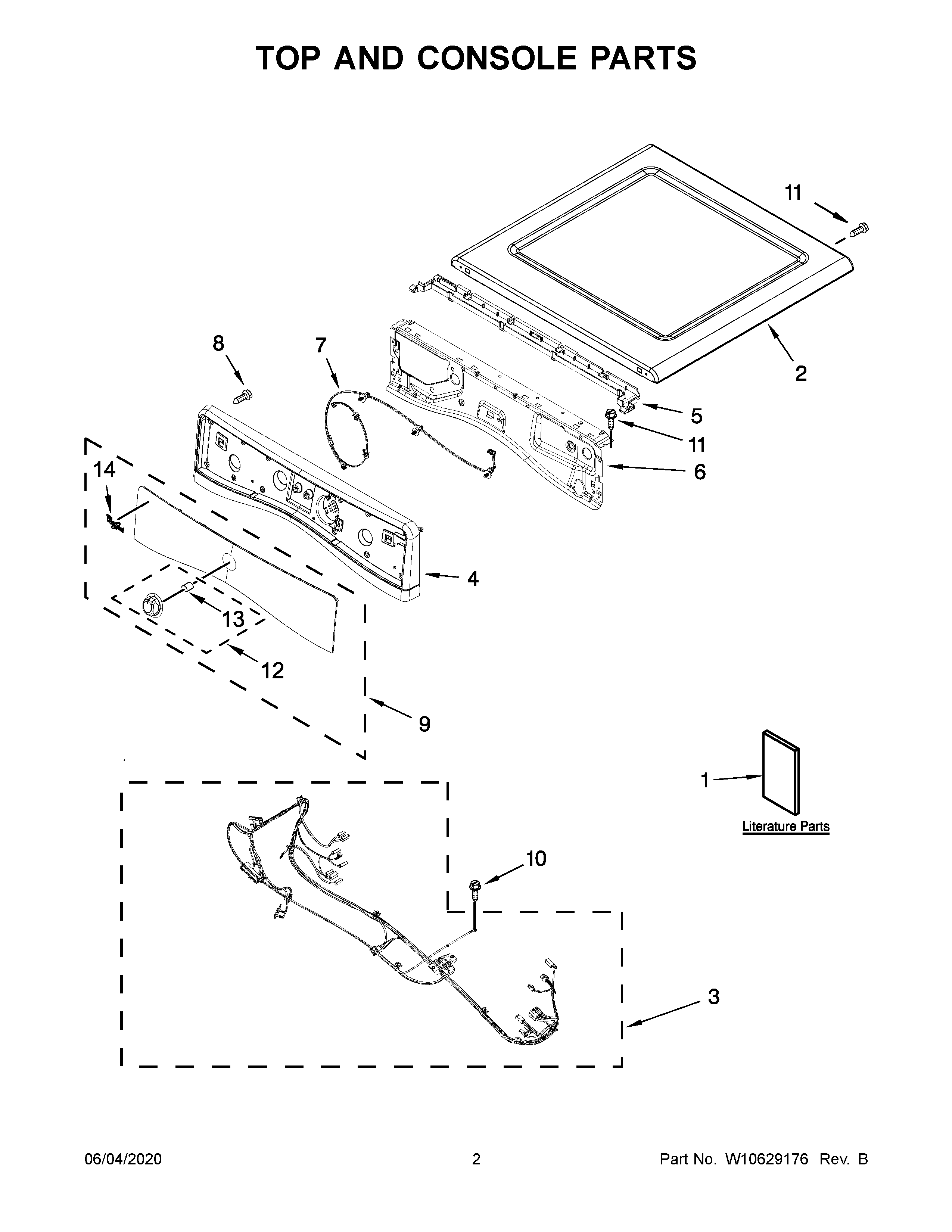

WGD71HEBW0 02 – TOP AND CONSOLE PARTS

WGD71HEBW0 02 – TOP AND CONSOLE PARTS

Written by

in

WGD71HEBW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CWIRING DIAGRAM
1BTECH SHEET
1USE & CARE GUIDE
1AINSTALLATION INSTRUCTIONS
2WPW10208383 Whirlpool Top Panel
3W10526664 Whirlpool Wire Harness
4WPW10391519 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W11025125 Whirlpool Wire Harness
8W10853898 Whirlpool Screw
9WPW10553790 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12KNOB ASSEMBLY
13WP8536939 Whirlpool Spring Clip
14W11178521 Whirlpool Dishwasher Nameplate
